DRIVE TRAIN, MAIN GEARCASE - A13NA32AA (49ATVGEARCASE10BOSS)

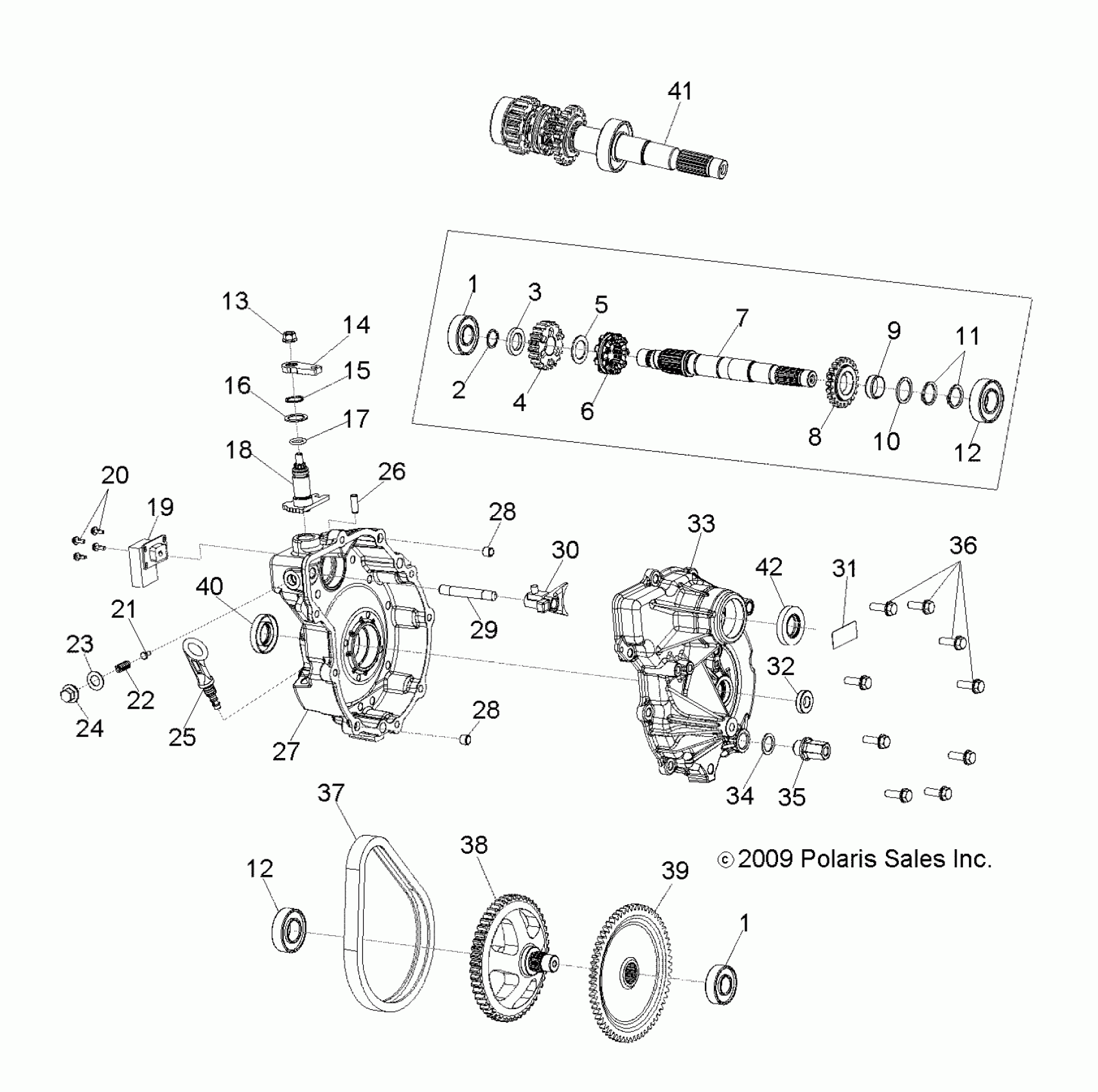

Polaris TRAIL BLAZER 330 - A13NA32AA DRIVE TRAIN, MAIN GEARCASE - A13NA32AA (49ATVGEARCASE10BOSS) Diagram
#
-
Asm., Gearcase [Incl. All]
1332730
Unavailable
1
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
1
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
2
Ring, Retaining
3233177
$6.39
3
Washer, Thrust
3233673
$13.59
4
Sprocket, 19T
3233674
$92.39
5
Washer
3233010
Unavailable
6
Engagement Dog, High/Rev
3234237
$167.99
7
Shaft, Input
3234940
$171.99
8
Gear, 21T
3234941
$215.99
9
Bearing
3233103
$31.99
10
Washer
3233105
$7.19
11
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
12
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
12
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
13
NUT, LOCK
3233961
$2.79
14
Bellcrank
3234148
$39.99
15
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
16
Washer
3233040
$9.59
17
O-Ring
3233548
$27.99
18
Shift, Shaft
3233679
$162.79
19
Switch, Gear Indication
3234002
$174.99
20
SCREW
3233749
$5.59
21
Bullet, Shifting
3233680
$23.99
22
Spring, Compression
3233681
$26.39
23
Washer
3233872
$9.59
24
Plug, Detent
3233682
$35.99
25
Dipstick
3233478
$23.99
26
Vent, Tube
3233524
$7.19
27
Gearcase, RH
3234049
$375.99
28
Pipe, Knock
3233529
$7.99
28
Pipe, Knock
3233529
$7.99
29
Shaft, Shift
3233684
Unavailable
30
Fork, Shift
3233685
Unavailable
31
Decal, Switch
3233636
Unavailable
32
Bushing, Pivot
3233527
$35.19
33
Gearcase, LH
3234048
$363.99
34
Washer
3233035
Unavailable
35
Plug
3233687
$92.39
36
Screw
3233252
$5.27
37
Chain, Silent
3233111
$79.19
38
CDS, 2x4 Output
3234266
Unavailable
39
Gear, 64T
3233690
$251.99
40
Seal, Triple Lip
3233788
$31.99
41
Asm., Shaft, Input
3234942
$475.79
42
SEAL, TRIPLE LIP
3234892
$35.99
