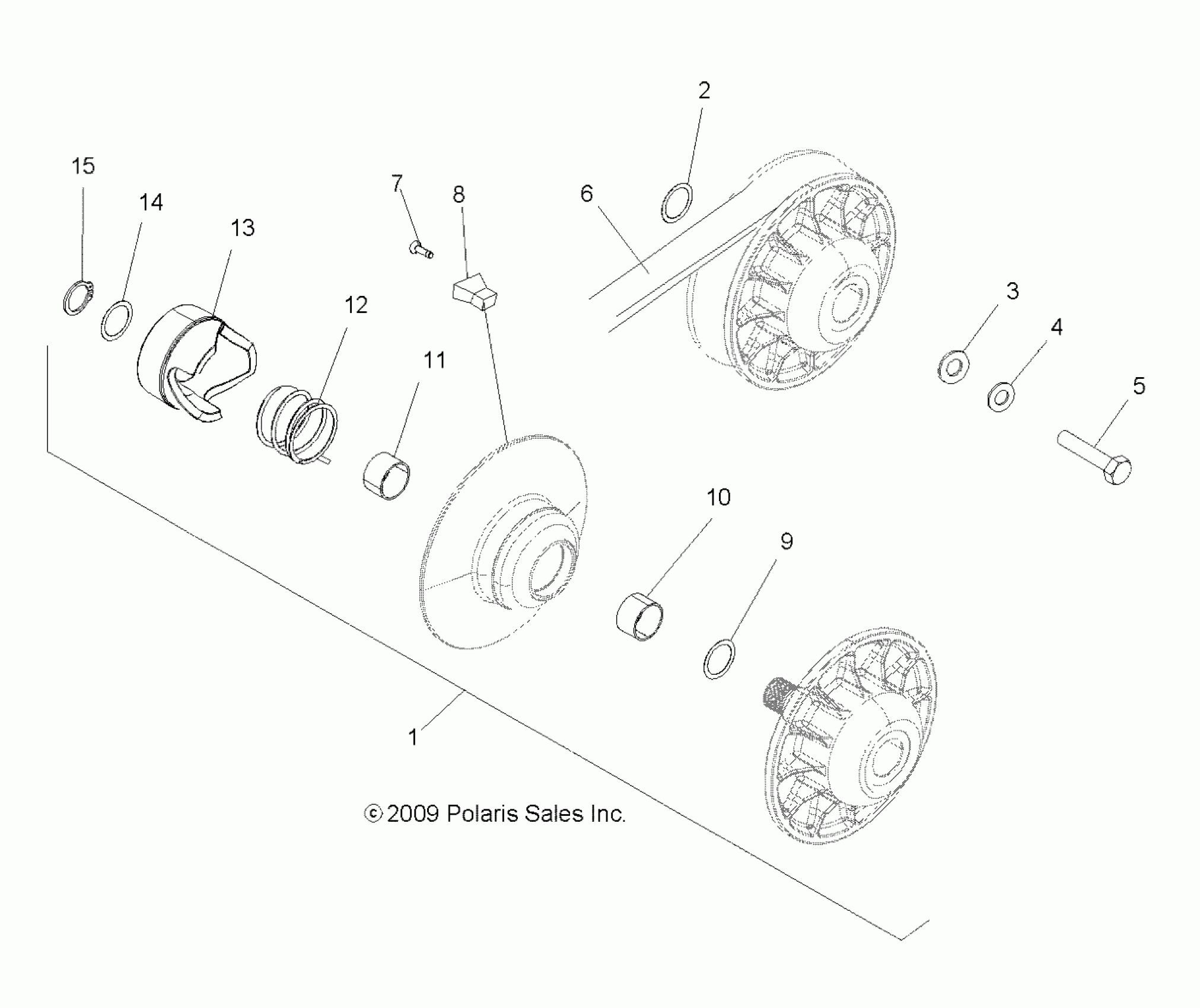

Polaris TRAIL BLAZER 330 - A11NA32AA DRIVE TRAIN, SECONDARY CLUTCH - A11NA32AA (49ATVCLUTCHDRIVEN10TBLZR) Diagram

#

Description
Price

1

Asm., Driven Clutch, Black [Incl. 7-15]

1322845

$614.99

2

BUSHING

7556120

Unavailable

3

WASHER, DOMED

5250562

$2.39

4

WASHER, SPRING LOCK

7552901

$1.49

5

BOLT

7515382

$2.39

6

BELT, DRIVE

3211077

$63.99

7

Bolt

7511854

$1.49

8

Button

5438123

$6.17

9

Washer, .030

7556804

Unavailable

10

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING, CLUTCH

7041782

$56.65

13

RAMP, STATIONARY

5131446

$87.99

14

SPACER, .020

5244116

$7.19

15

Ring, Retaining

7710448

$3.19
