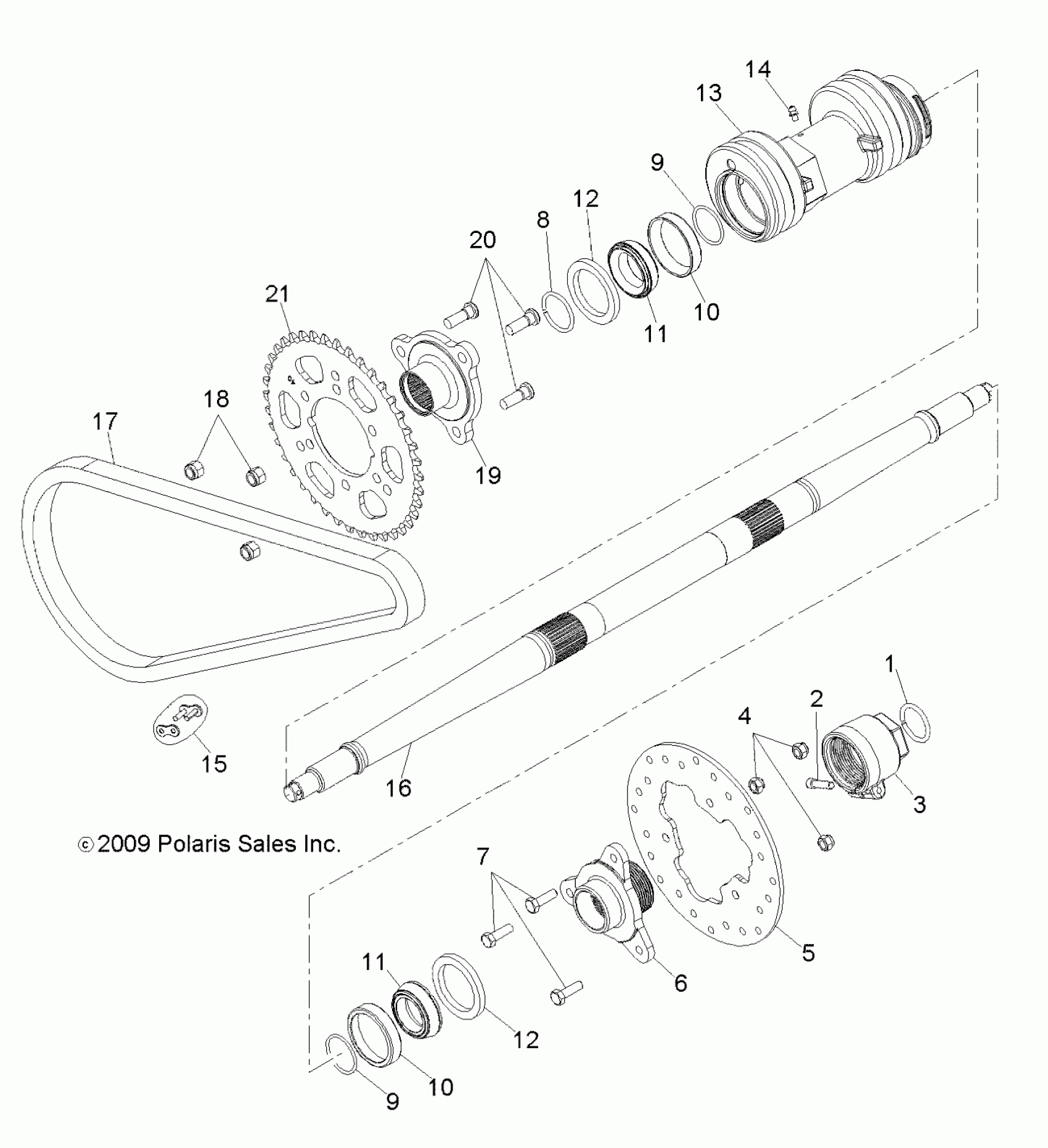

Polaris TRAIL BLAZER 330 - A11NA32AA DRIVE TRAIN, REAR AXLE and HOUSING - A11NA32AA (49ATVAXLE10TBLZR) Diagram

#

Description
Price

1

Ring, Retaining

7670160

$7.19

2

Screw

7515102

$4.79

3

Nut, Axle

5137563

$74.79

4

Nut, Nylok

7547217

$3.99

5

Disc, Brake

5253186

$71.99

6

Hub, Brake Disc

5631457

$114.99

7

SCREW, CAP

7512365

$1.49

8

Ring, Retaining

7670161

Unavailable

9

O-RING

5411965

$3.63

9

O-RING

5411965

$3.63

10

Bearing, Cup, Tapered

3514679

$7.99

10

Bearing, Cup, Tapered

3514679

$7.99

11

Bearing, Cone, Tapered

3514680

Unavailable

11

Bearing, Cone, Tapered

3514680

Unavailable

12

Seal, Lip

3610070

$15.99

12

Seal, Lip

3610070

$15.99

13

Housing, Axle, Rear

5134460

$95.99

14

Fitting, Lubrication

7080306

$3.19

15

Link, Connector

3221192

$27.99

16

Axle, Rear

5133967

$264.99

17

Chain, O-Ring [Incl. 15]

3221193-078

$119.99

18

Nut, Nylok

7542439

$1.49

19

Asm., Hub, Sprocket [Incl. 20]

1520702

Unavailable

20

Stud

7515513

$1.49

21

Sprocket, Rear, 40T

3222061

$180.39
