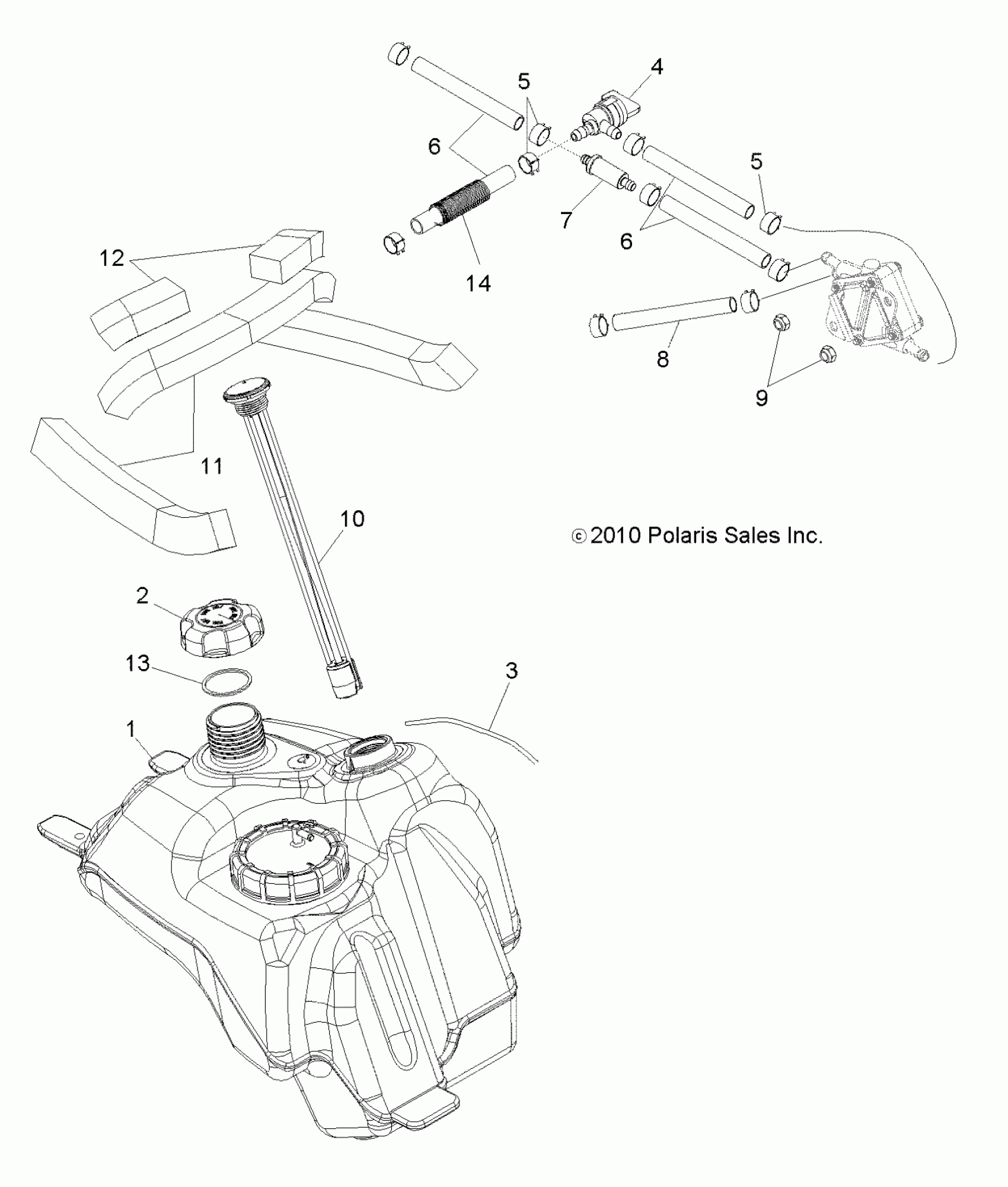

Polaris TRAIL BLAZER 330 - A11NA32AA BODY, FUEL SYSTEM - A11NA32AA (49ATVFUEL11TBLZR) Diagram

#

Description
Price

1

Asm., Fuel Tank [Incl. 10]

2520993

$343.99

2

Cap, Gas Tank

5433687

$20.22

3

LINE, FUEL

8360009-600

Unavailable

4

Valve, Fuel

7052249

$24.27

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE, FUEL

8450117-250

Unavailable

6

HOSE, FUEL

8450117-250

Unavailable

7

FILTER, SMALL, IN-LINE

2530009

$5.65

8

Line, Fuel

8450040-600

Unavailable

9

NUT-M5X.8,HX NYL-Y

7546601

$1.49

10

Gauge, Fuel

3280524

$43.99

11

FOAM, SEAL

5813255

$7.19

12

Foam, Seal

5813551

$1.49

13

GASKET

5812123

$5.65

14

TUBING, CONVOLUTED

8360052-305

Unavailable
