BODY, CLUTCH COVER - A11NA32AA (49ATVCLUTCHCVR10TBLZR)

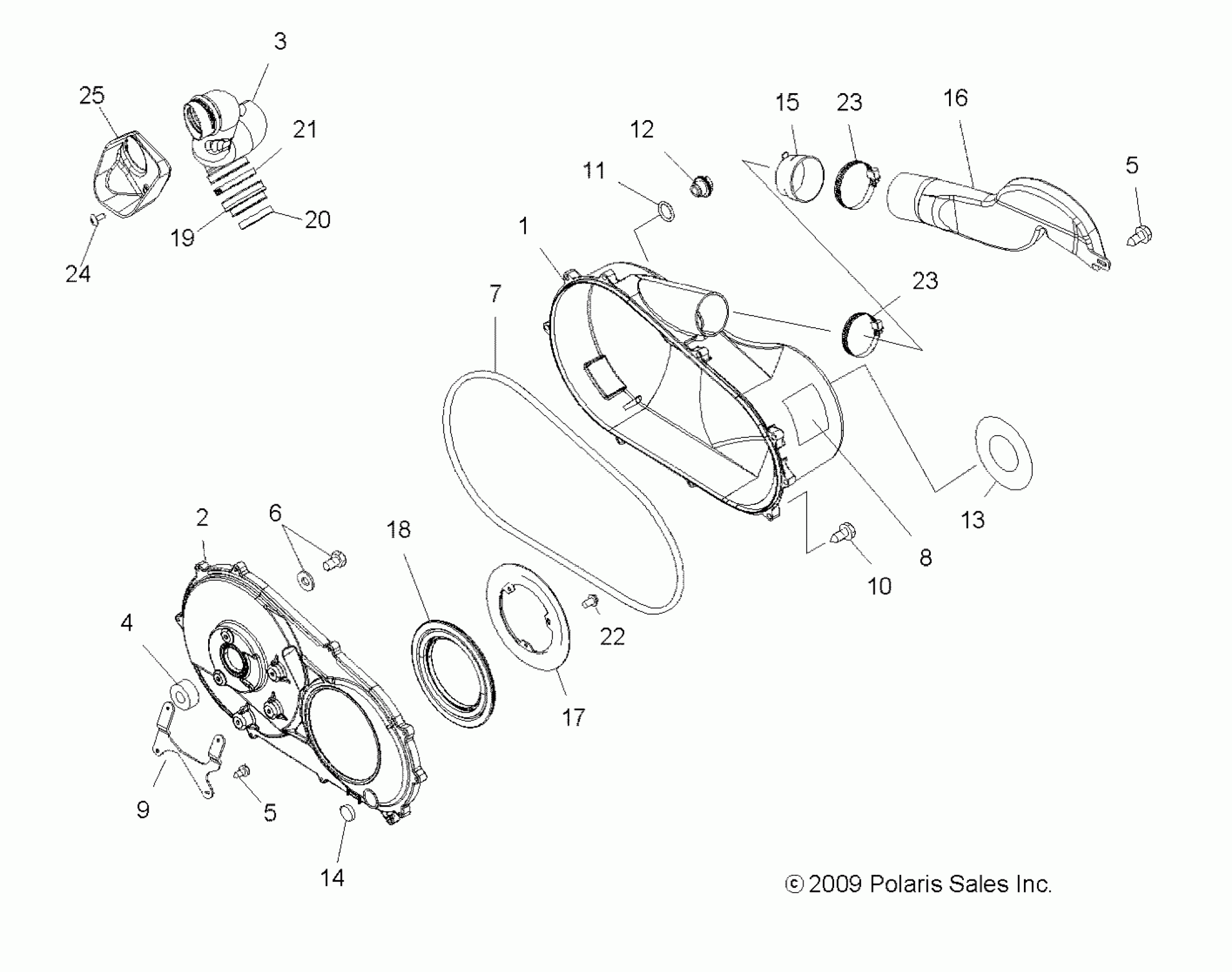

Polaris TRAIL BLAZER 330 - A11NA32AA BODY, CLUTCH COVER - A11NA32AA (49ATVCLUTCHCVR10TBLZR) Diagram
#
Description
Price
1
Asm., Clutch Cover, Outer [Incl. Outer Cover,11,12]
2633926
$175.99
2
Kit, Inner Clutch Cover [Incl. 7,14,18]
2202438
Unavailable
3
Duct, Air Inlet, Clutch
5438130
Unavailable
4
Seal, Cover Case
5410489
$13.59
5
SCREW
7517386
$1.49
5
SCREW
7517386
$1.49
6
Bolt and Washer
7510000
$3.99
7
SEAL, CLUTCH COVER, OUTER
5521738
$42.46
8
DECAL, WARNING, CLUTCH COVER
7172563
Unavailable
9
Bracket, Clutch Cover, Black
5247524-067
Unavailable
10
SCREW
7512094
$1.59
11
O RING-.364X.504X.07
5410542
Unavailable
12
PLUG-DRAIN,CLUTCH COVER
5434264
$5.59
13
DECAL, AUTOMATIC TRANSMISSION
7172746
Unavailable
14
Stopper, Clutch Cover, Inner
5411795
Unavailable
15
BOOT, DUCT
5412636
$23.99
16
Duct, Clutch, Out, Hi-Flow
5434160
Unavailable
17
Bracket, Clutch Seal
5242046
$35.99
18
Seal, Cover, Case
5412637
$43.99
19
Boot, Clutch Intake
5411721
Unavailable
20
Clamp, Narrow Band
7080511
$4.79
21
CLAMP, NARROW BAND
7080909
$7.99
22
Screw and Washer
3084205
$3.99
23
CLAMP-BAND,NARROW 70-90MM
7081279
$3.19
23
CLAMP-BAND,NARROW 70-90MM
7081279
$3.19
24
SCREW
7517386
$1.49
25
Extension, Duct
5438172
Unavailable
