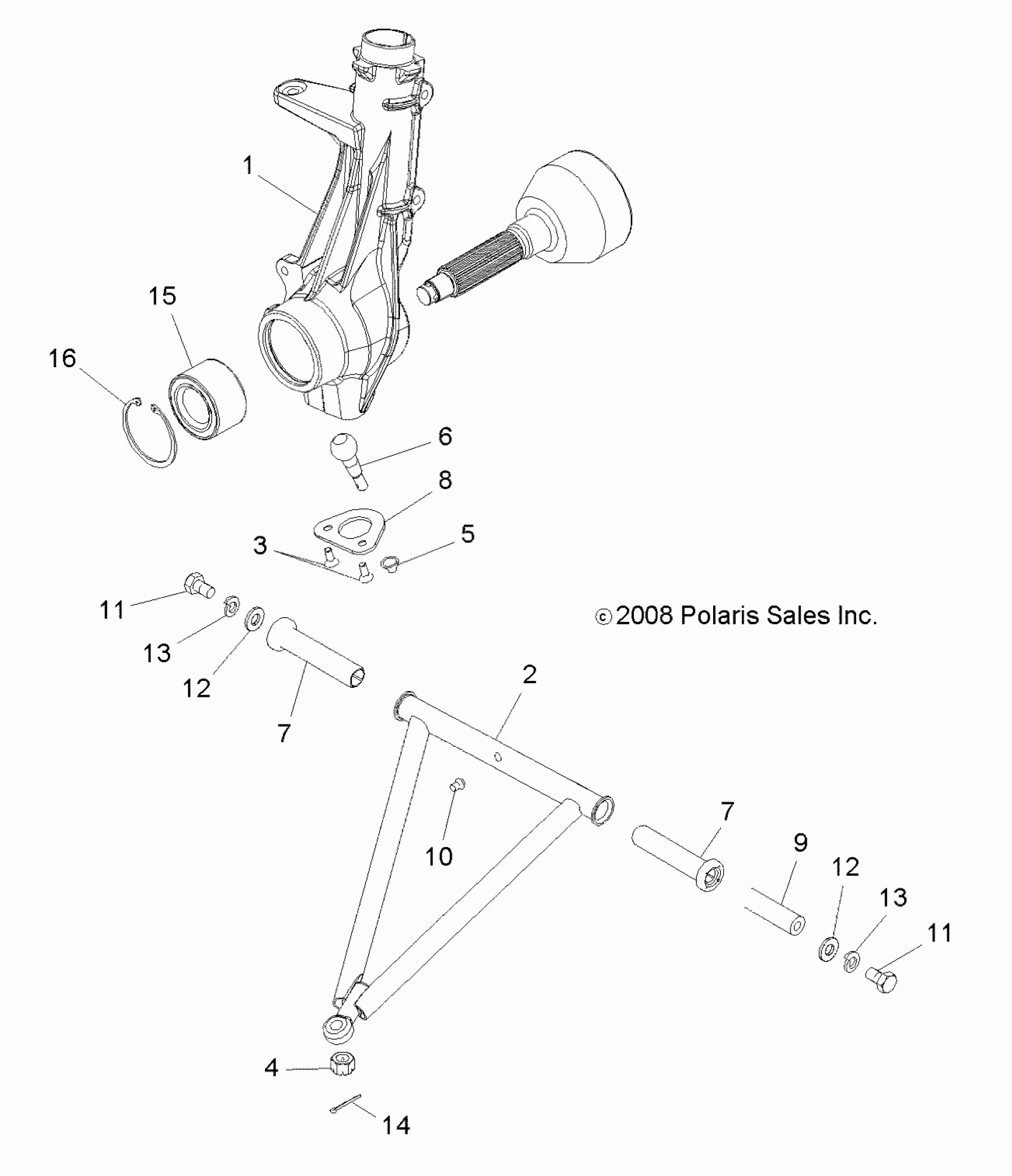

Polaris TRAIL BLAZER 330 - A10NA32AA SUSPENSION, A-ARM and STRUT MOUNTING - A10NA32AA (49ATVSUSPFRT10TBLZR) Diagram

#

Description
Price

1

Asm., Hubstrut, RH [Incl. 3,6,8,15,16]

1822826

$303.99

1

Asm., Hubstrut, LH [Incl. 3,6,8,15,16]

1822825

$303.99

2

Kit, A-Frame, LH, Black [Incl. 7,9-14]

2202284-067

$140.79

2

Kit, A-Frame, RH, Black [Incl. 7,9-14]

2202285-067

$140.79

3

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

4

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

5

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

6

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99

7

Bushing, A-Arm, Long

5434551

$5.01

7

Bushing, A-Arm, Long

5434551

$5.01

8

BRACKET-BALL JOINT

5211121

$31.99

9

Shaft, A-Arm

5133806

$30.79

10

Fitting, Lubrication

7080433

$1.49

11

Screw

7512492

$1.49

11

Screw

7512492

$1.49

12

WSHR-.813X.406X.105-Y

7555832

$2.39

12

WSHR-.813X.406X.105-Y

7555832

$2.39

13

Washer, Lock

7552603

$1.49

13

Washer, Lock

7552603

$1.49

14

Pin, Cotter

7661203

$1.49

15

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

16

RING, RETAINING

7710507

$2.39
