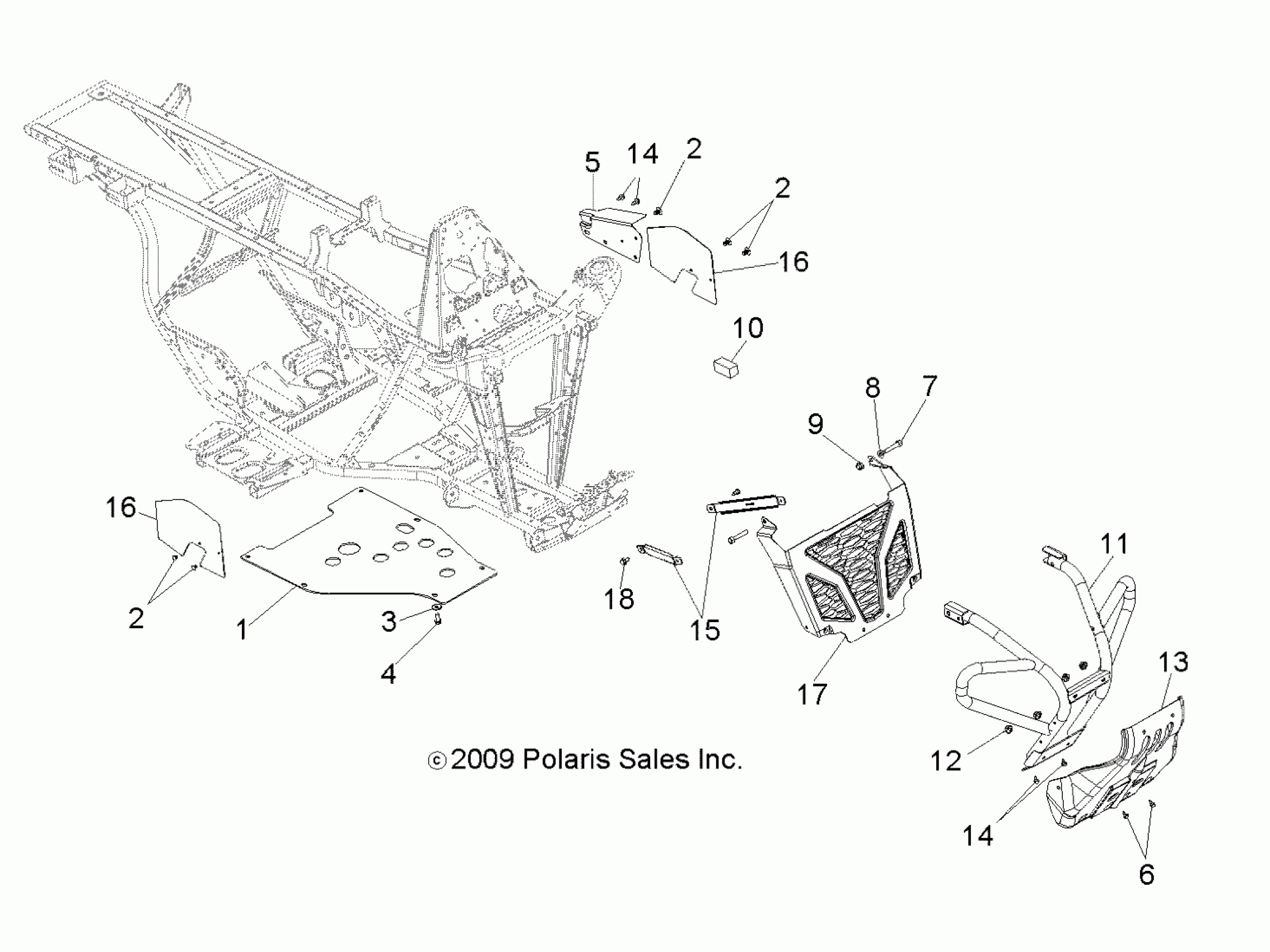

Polaris TRAIL BLAZER 330 - A10NA32AA CHASSIS, FRONT BUMPER - A10NA32AA (49ATVBUMPER10TBLZR) Diagram

#

Description
Price

1

Guard, Rock

5432763

$87.99

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

Washer, Flat

7555859

$1.49

4

SCREW

7512232

$1.49

5

Shield, Splash, Black, LH

5245394-067

$15.67

6

SCREW

7517230

$1.49

7

BOLT

7515319

$4.79

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

PLUG, FRAME

5810467

Unavailable

11

Bumper, Front, Black

1017021-067

$316.79

12

Nut, Nylok, Flange

7542153

$1.59

13

Plate, Skid, Bumper, Black

5432378-070

$92.39

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

15

Bracket, Grill Support, Black

5253368-067

$39.99

16

Shield, Splash, Front

5438246

$7.19

16

Shield, Splash, Front

5438246

$7.19

17

Shield, Radiator, Black

5253250-067

Unavailable

18

SCREW

7515399

$1.49
