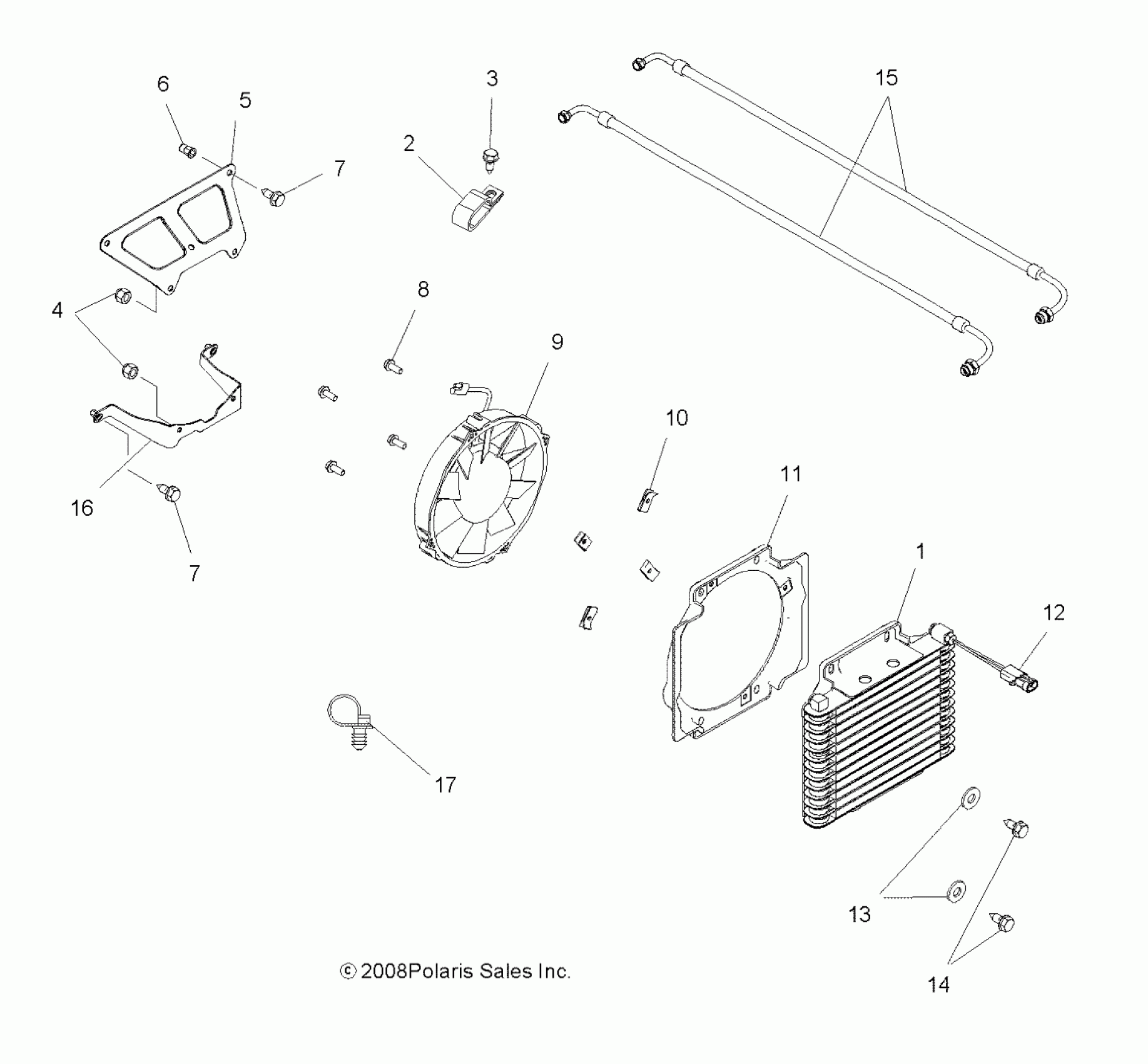

Polaris TRAIL BLAZER 330 - A09BA32AA ENGINE, COOLING SYSTEM - A09BA32AA (49ATVCOOL09TB) Diagram

#

Description
Price

1

Cooler, Oil

1240191

Unavailable

1

Asm., Oil Cooler [Incl. 8-12]

1240465

$477.60

2

CLAMP, DOUBLE TUBE

7081364

$1.49

3

Screw

7511364

Unavailable

4

Nut, Nylok

7542122

$1.49

5

Bracket, Oil Cooler, Top, Black

5245416-067

$56.99

6

NUT, FLANGED

7542153

$1.59

7

Bolt

7512232

$1.49

7

Bolt

7512232

$1.49

8

Screw

7517659

$3.99

9

Asm., Motor, Fan

2410534

$180.79

10

U-Clip

7670111

Unavailable

11

Shroud, Fan

5433353

$70.39

12

Thermister

4010934

Unavailable

13

Washer, Flat

7558301

$1.49

14

Bolt

7512247

$2.39

15

Hose, Cooler, Threaded

5413650

$179.99

16

Bracket, Lower

5248139

$15.56

17

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59
