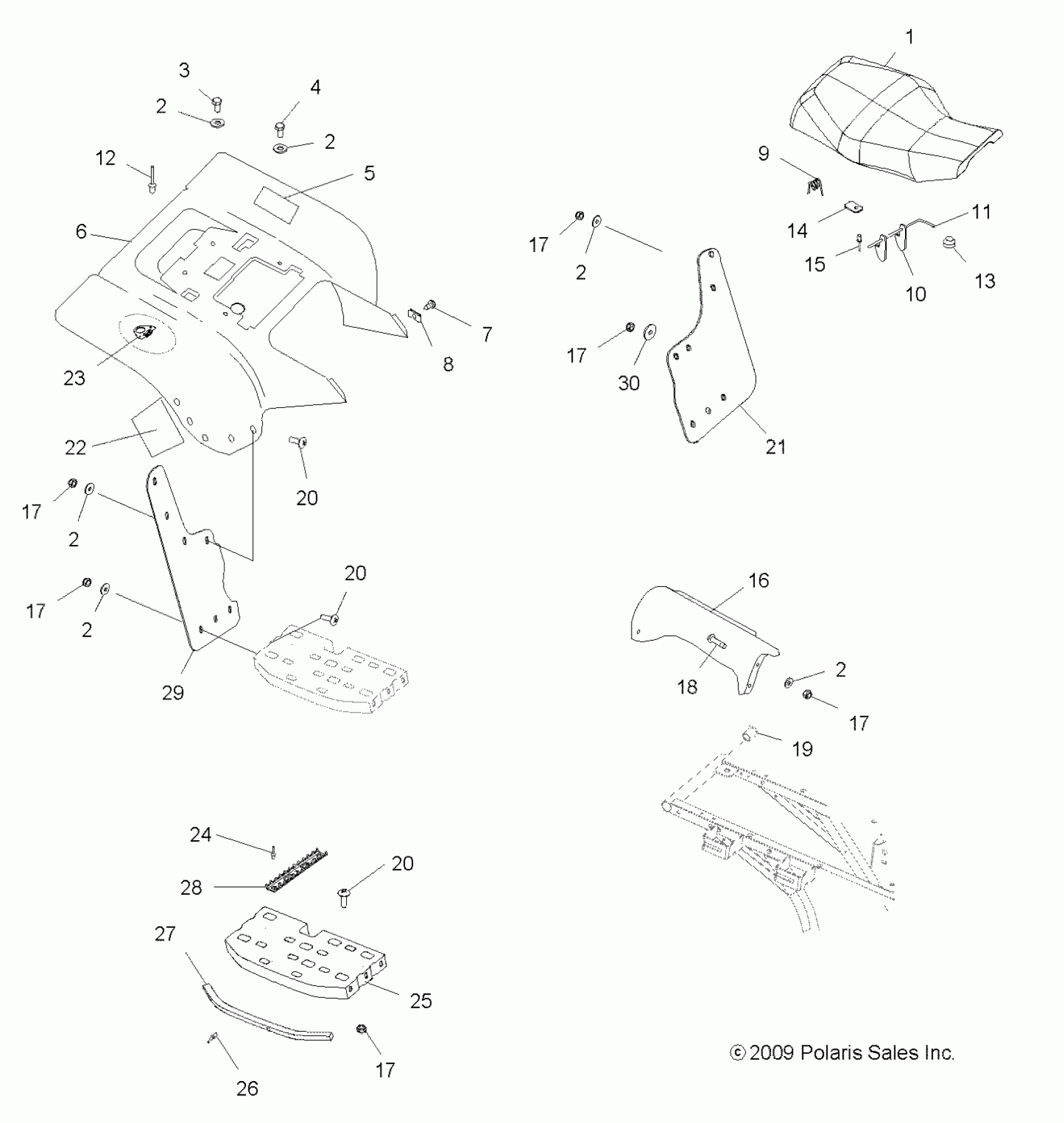

Polaris TRAIL BLAZER 330 - A09BA32AA BODY, REAR CAB - A09BA32AA (49ATVCABRR09TBLZR) Diagram

#

Description
Price

1

Asm., Seat, Black w/White "POLARIS" [Incl. 9-11,13-15]

2684152-070

Unavailable

1

Cover, Seat, Black

2684094

Unavailable

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

SCREW

7512232

$1.19

4

SCREW

7512242

$2.38

5

Foil, Small

5810991

Unavailable

6

Cab, Rear, Indy Red

5430007-293

$479.99

7

Screw

7517916

$6.35

8

NUT, SPEED

7670057

$1.19

9

Spring, Latch, Light

7041607

Unavailable

10

Latch, Seat

1040412

Unavailable

11

Cap, Seat Latch

5411392

Unavailable

12

RIVET

7621472

$1.49

13

BUMPER-RUBBER

5412067

$3.97

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

RIVET

7621403

$1.19

16

Foil

5811230

Unavailable

16

Asm., Shield, Muffler w/Foil

2632280

Unavailable

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

18

Screw

7517264

$3.97

19

Plug, End Cap, Ribbed

5432831

$5.65

20

Bolt

7512282

Unavailable

20

Bolt

7512282

Unavailable

20

Bolt

7512282

Unavailable

21

Mudflap, Rear, LH

5812134

Unavailable

22

Foil

5810957

Unavailable

23

Bracket, Rear Holddown

5220880

Unavailable

24

RIVET

7621472

$1.49

25

Footpad, Black

1014653-067

$73.81

26

Rivet

7661825

$0.63

27

Trim, Footrest

5431484

Unavailable

28

Bracket, Heel Cleat, Black

5242525-067

$16.35

29

Mudflap, Rear, RH

5812543

Unavailable

30

Washer, Flat

7558221

$2.38
