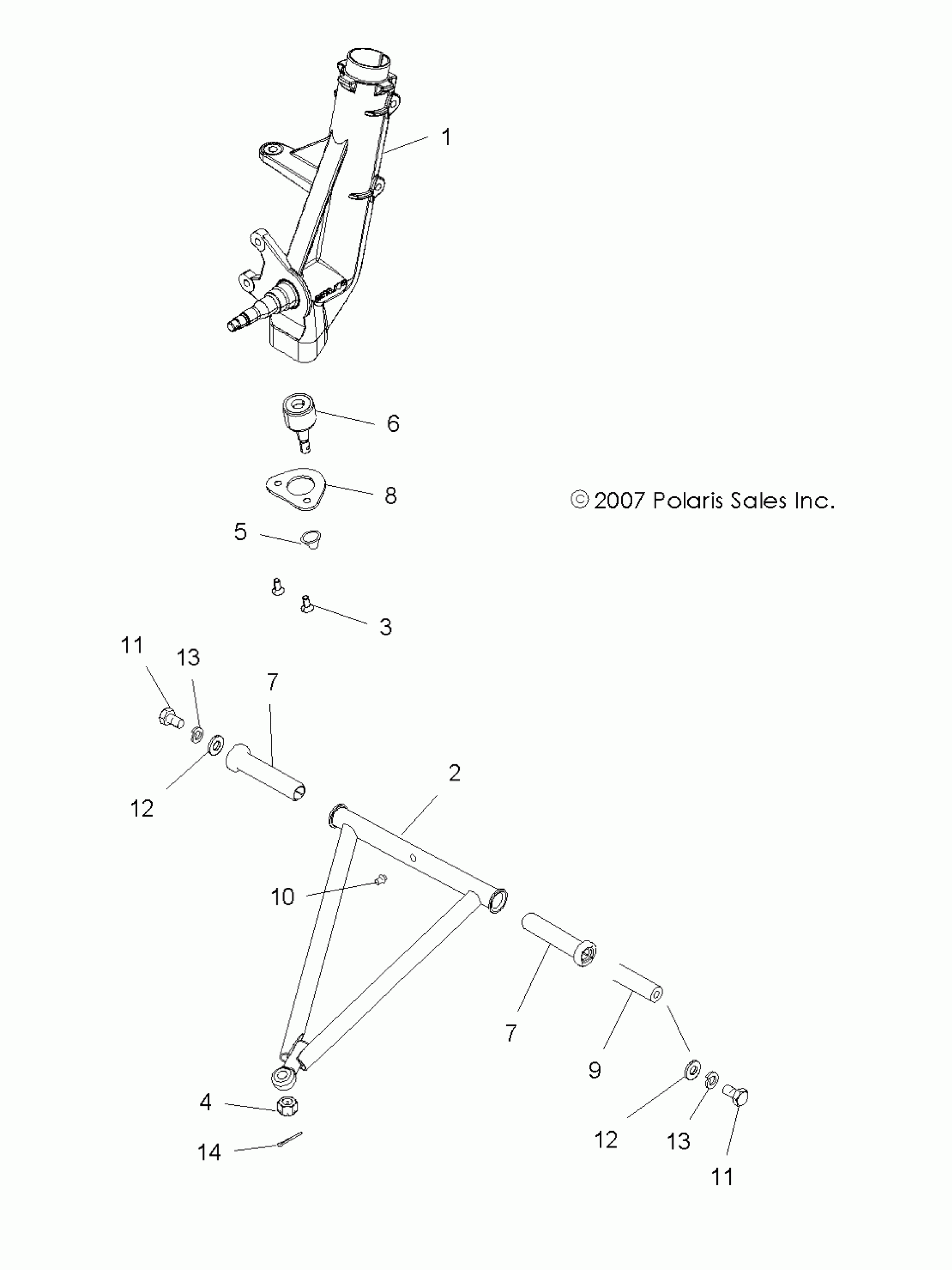

Polaris TRAIL BLAZER 330 - A08BA32AA SUSPENSION, A-ARM and STRUT MOUNTING - A08BA32AA (49ATVSUSPFRT08TB) Diagram

#

Description
Price

1

Support, Strut/Spindle, RH

5135136

$231.19

1

Support, Strut/Spindle, LH

5135135

Unavailable

2

Kit, A-Frame, LH [Incl. 7,9-13]

2202276

Unavailable

2

Kit, A-Frame, RH [Incl. 7,9-13]

2202277

Unavailable

3

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

4

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

5

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

6

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99

7

Bushing, A-Arm, Long

5434551

$5.01

7

Bushing, A-Arm, Long

5434551

$5.01

8

BRACKET-BALL JOINT

5211121

$31.99

9

Shaft, A-Arm

5133806

$30.79

10

Fitting, Lubrication

7080433

$1.49

11

Screw

7512492

$1.49

11

Screw

7512492

$1.49

12

WSHR-.813X.406X.105-Y

7555832

$2.39

12

WSHR-.813X.406X.105-Y

7555832

$2.39

13

Washer, Lock

7552603

$1.49

13

Washer, Lock

7552603

$1.49

14

Pin, Cotter

7661203

$1.49
