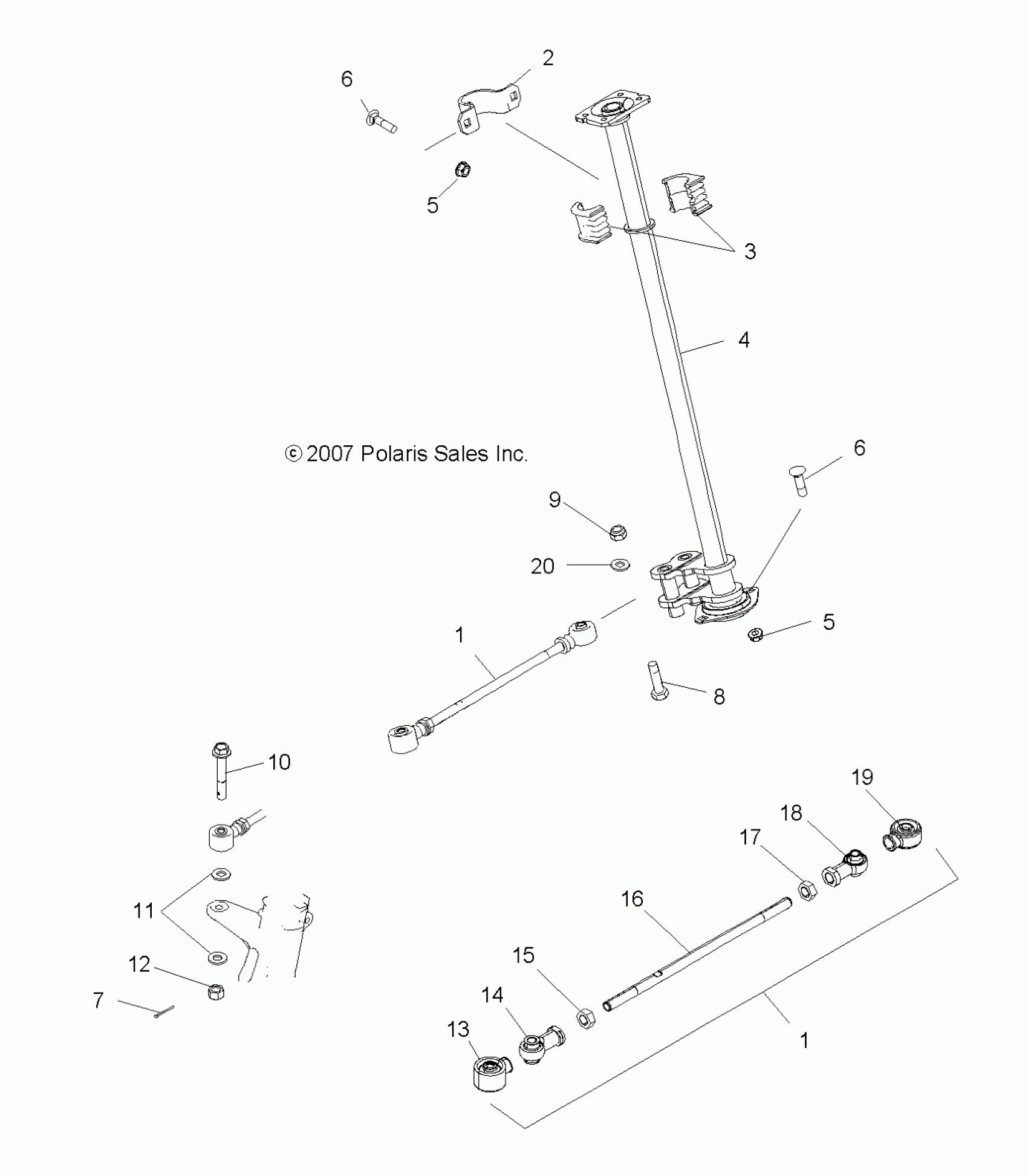

Polaris TRAIL BLAZER 330 - A08BA32AA STEERING, STEERING POST - A08BA32AA (49ATVSTEERING08SCRAM2X4) Diagram

#

Description
Price

1

ASM., TIE ROD [INCL. 13-19]

1822851

$103.99

1

ASM., TIE ROD [INCL. 13-19]

1822851

$103.99

2

Bracket, Upper, Bushing

5246732

$32.37

3

Bushing, Upper

5433866

Unavailable

4

Post, Steering

1015958

Unavailable

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

BOLT

7517428

$2.39

6

BOLT

7517428

$2.39

7

Pin, Cotter

7661203

$1.49

8

Screw

7518033

$34.99

9

Nut, Nylok

7542439

$1.49

10

Bolt

7517909

$5.59

11

Washer

7556099

$1.59

12

Nut

7547177

$2.39

13

BOOT, SEAL

5412929

$11.19

14

Rod End, LH

7061138

$51.99

15

Nut, Jam, LH

7547028

$2.39

16

Tie Rod

5134242

$39.99

17

Nut, Jam

7542711

$2.39

18

ROD END, RH

7061139

$55.99

19

BOOT, SEAL

5412928

$11.32

20

Washer

7558403

$4.79
