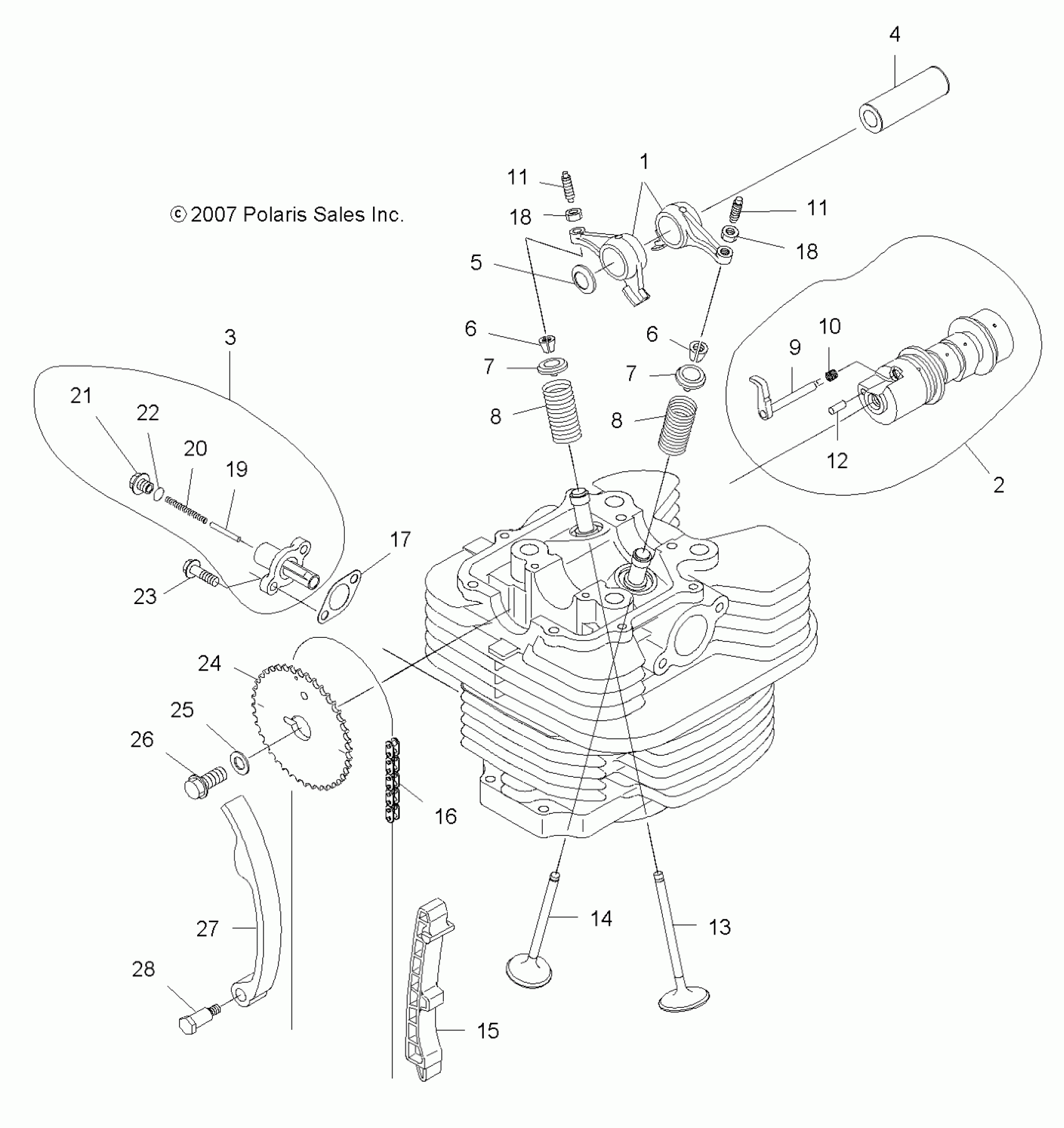

Polaris TRAIL BLAZER 330 - A08BA32AA ENGINE, VALVES and CAMSHAFT - A08BA32AA (49ATVCAMSHAFT08TB) Diagram

#

Description
Price

1

Asm., Rocker Arm [Incl. 11,18]

3084910

$115.99

2

Asm., Camshaft [Incl. 9,10,12]

3087247

$426.79

3

Asm., Tensioner [Incl. 19-22]

3086493

Unavailable

4

Shaft, Rocker

3087053

Unavailable

5

Washer, Wave

3085836

$5.59

6

COLLET, VALVE

3084908

$3.99

6

COLLET, VALVE

3084908

$3.99

7

Retainer, Spring, Valve

3087203

Unavailable

7

Retainer, Spring, Valve

3087203

Unavailable

8

Spring, Valve

3087248

Unavailable

8

Spring, Valve

3087248

Unavailable

9

Asm., Lever, Release

3086439

Unavailable

10

Spring, Return

3086804

Unavailable

11

Screw, Adjusting

3084911

$9.59

11

Screw, Adjusting

3084911

$9.59

12

PIN, DOWEL

3084899

$7.19

13

Valve, Intake

3085778

Unavailable

14

Valve, Exhaust

3086441

$51.99

15

Guide, Chain

3086445

$35.99

16

Chain, Timing

3086444

$63.99

17

GASKET, TENSIONER

3086448

$6.39

18

Nut

3084912

$3.99

18

Nut

3084912

$3.99

19

PIN

3087132

$10.39

20

SPRING, TENSIONER

3087131

Unavailable

21

PLUG

3087129

Unavailable

22

GASKET, PLUG

3087130

$11.19

23

BOLT, FLANGE

3083361

Unavailable

24

Sprocket 2

3086443

Unavailable

25

Washer

3087249

Unavailable

26

BOLT, FLANGE

3086449

$7.19

27

Asm., Lever

3086446

$79.99

28

Asm., Bolt, Pivot, Lever

3084924

Unavailable
