- TRAIL BLAZER 330 - A08BA32AA
ENGINE, CYLINDER and HEAD - A08BA32AA (49ATVCYLINDER08TB)

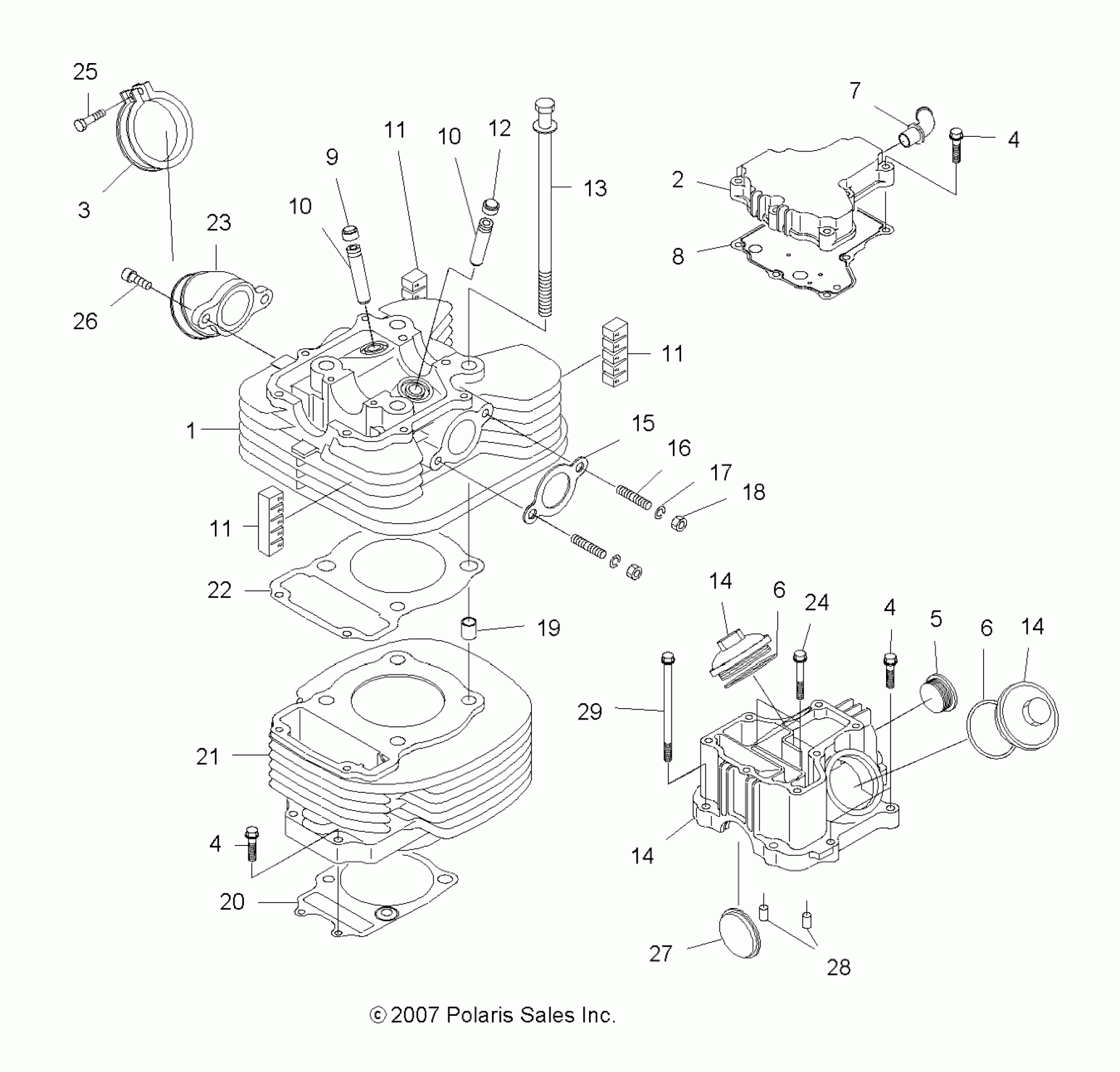

Polaris TRAIL BLAZER 330 - A08BA32AA ENGINE, CYLINDER and HEAD - A08BA32AA (49ATVCYLINDER08TB) Diagram
#
Description
Price
1
Asm., Cylinder Head [Incl. 9,10,12,14,16,28]
3089270
$704.99
2
Asm., Cover, Breather [Incl. 7]
3089271
Unavailable
3
Asm., Adapter Band [Incl. 25]
3083166
$19.84
4
BOLT, FLANGE
3084874
Unavailable
4
BOLT, FLANGE
3084874
Unavailable
4
BOLT, FLANGE
3084874
Unavailable
5
Asm., Plug
3089272
Unavailable
6
O-Ring
3086414
$29.99
6
O-Ring
3086414
$29.99
7
Asm., Pipe
3085850
$51.99
8
Gasket, Breather Cover
3087034
$27.99
9
Seal, Intake Valve
3084858
$13.59
10
GUIDE, VALVE
3084994
$39.99
10
GUIDE, VALVE
3084994
$39.99
11
Fin, Damper A
3084798
$31.99
11
Fin, Damper A
3084798
$31.99
11
Fin, Damper A
3084798
$31.99
12
SEAL, EXHAUST VALVE
3084859
$23.99
13
Asm., Bolt and Washer
3086418
$10.39
14
Cover, Valve
3087259
Unavailable
14
Cover, Valve
3087259
Unavailable
14
Cover, Valve
3087259
Unavailable
15
Gasket, Exhaust
3086421
Unavailable
16
Stud
3085326
Unavailable
17
Washer, Spring Lock
3080530
$3.19
18
Nut
3086787
Unavailable
19
KNOCK, PIPE
3087266
Unavailable
20
Gasket, Cylinder
3086407
$31.99
21
Unit, Cylinder
3087236
$367.99
22
Gasket, Head
3087238
$39.99
23
Asm., Adapter
3087050
$71.99
24
BOLT, FLANGE
3087159
$3.99
25
ASM., SCREW AND WASHER
3081497
$2.39
26
Bolt, Socket, Head
3081330
$3.99
27
Gasket, Cam
3086416
Unavailable
28
Knock, Pipe
3087275
Unavailable
29
Bolt, Flange
3087160
Unavailable
