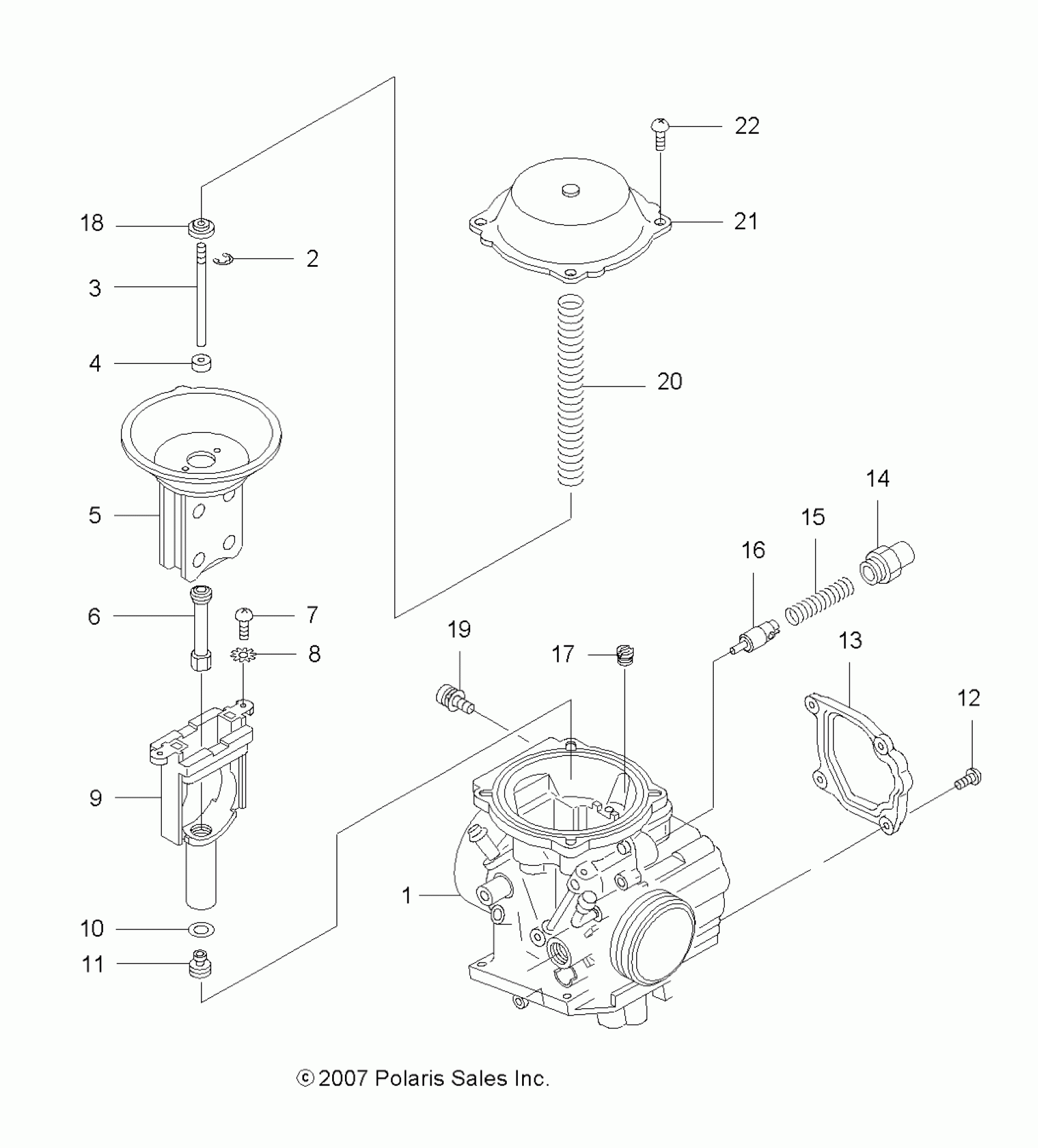

Polaris TRAIL BLAZER 330 - A08BA32AA ENGINE, CARBURETOR, UPPER - A08BA32AA (49ATVCARBUPPER08TB) Diagram

#

Description
Price

1

Asm., Carburetor [Incl. 2-11,13-18,20-22]

3131590

$526.49

2

E-RING

3130508

$6.46

3

Needle, Jet, J8-4HB48

3131554

$31.99

4

RING

3130752

$5.59

5

Asm., Diaphragm

3130732

$123.99

6

Jet, Needle

3131588

Unavailable

7

SCREW

3130541

$11.19

8

WASHER, SPRING

3130540

$4.79

9

Asm., Jet Block

3130504

$59.99

10

WASHER

3130014

$1.59

11

Jet, Main, #122.5

3131458

$7.19

12

SCREW

3130535

$7.19

13

COVER

3130511

$43.99

14

Holder, Guide

3130199

$28.32

15

SPRING

3130538

$4.79

16

Asm., Plunger

3131228

$39.99

17

Jet, Air , Pilot, #160

3130625

$13.59

18

RING

3130507

$5.59

19

Asm., Screw and Washer

3084205

$3.99

20

Spring

3131129

$27.99

21

ASM., COVER

3130503

$63.99

22

SCREW

3130924

$1.59
