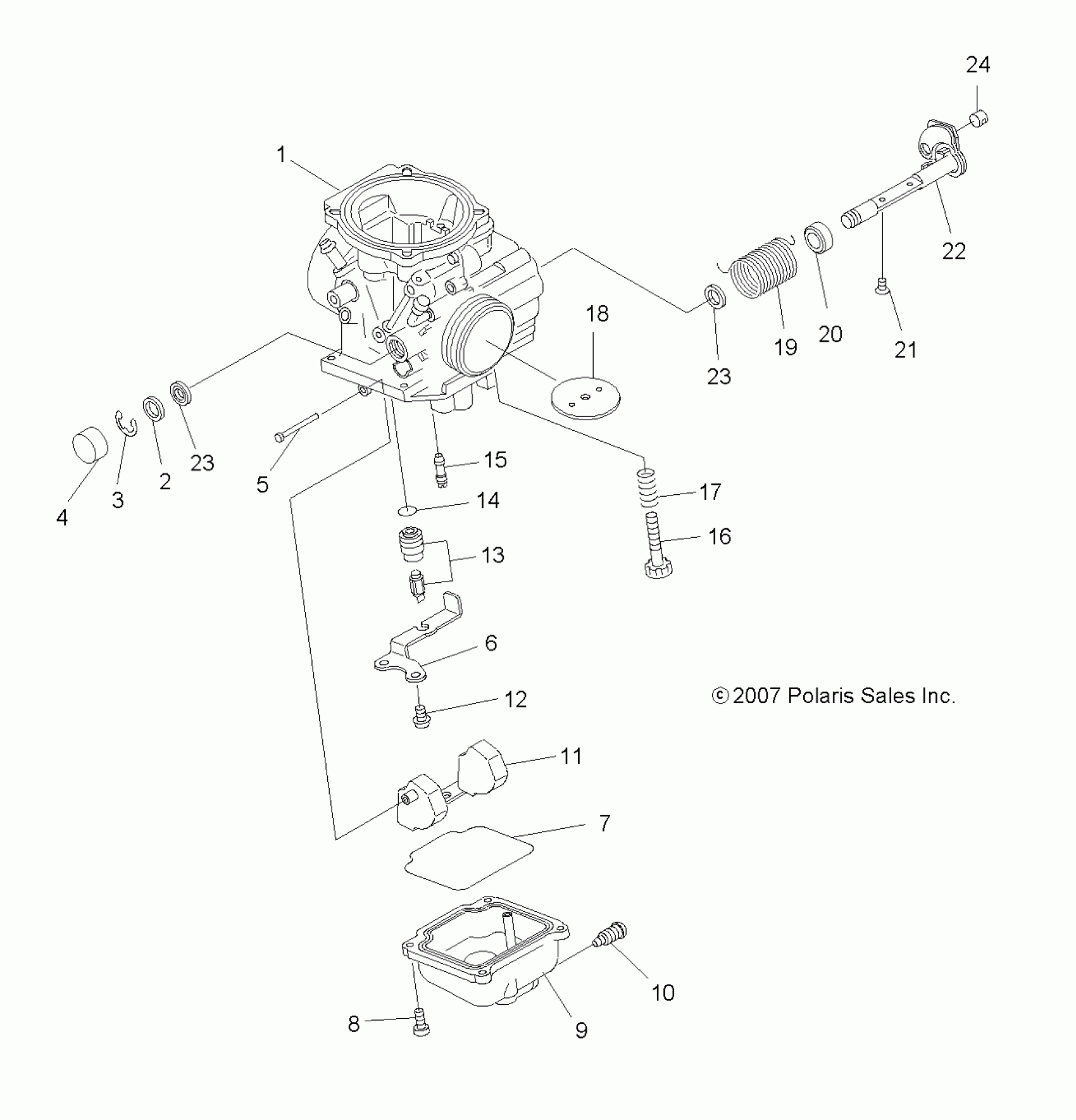

Polaris TRAIL BLAZER 330 - A08BA32AA ENGINE, CARBURETOR, LOWER - A08BA32AA (49ATVCARB08TB) Diagram

#

Description
Price

1

Asm., Carb [Incl. All less 24]

3131590

$526.49

2

PACKING

-------

Unavailable

3

E-RING

3130518

$1.59

4

CAP

3130519

$10.39

5

PIN, FLOAT

3130361

$8.89

6

PLATE

3130594

$27.99

7

O-RING

3130532

$31.99

8

SCREW

3130520

$1.59

9

Asm., Float Body

3130590

$103.99

10

SCREW

3130521

$10.39

11

ASM., FLOAT

3130529

$79.99

12

SCREW

3130591

$3.99

13

VALVE, NEEDLE, 1.5

3131360

$47.99

14

O-RING

3130533

$5.59

15

JET, PILOT, #42.5

3130526

$27.99

16

SCREW, ADJUST

3131423

$23.99

17

SPRING

3130836

$7.27

18

Valve, Throttle, 100

3130502

$47.99

19

SPRING

3130589

$23.99

20

Ring

3130514

$7.19

21

SCREW

3130501

$3.99

22

Asm., Throttle Shaft

3130513

$79.99

23

SEAL

3130515

$11.99

23

SEAL

3130515

$11.99

24

GUIDE, CABLE

3130543

$27.99
