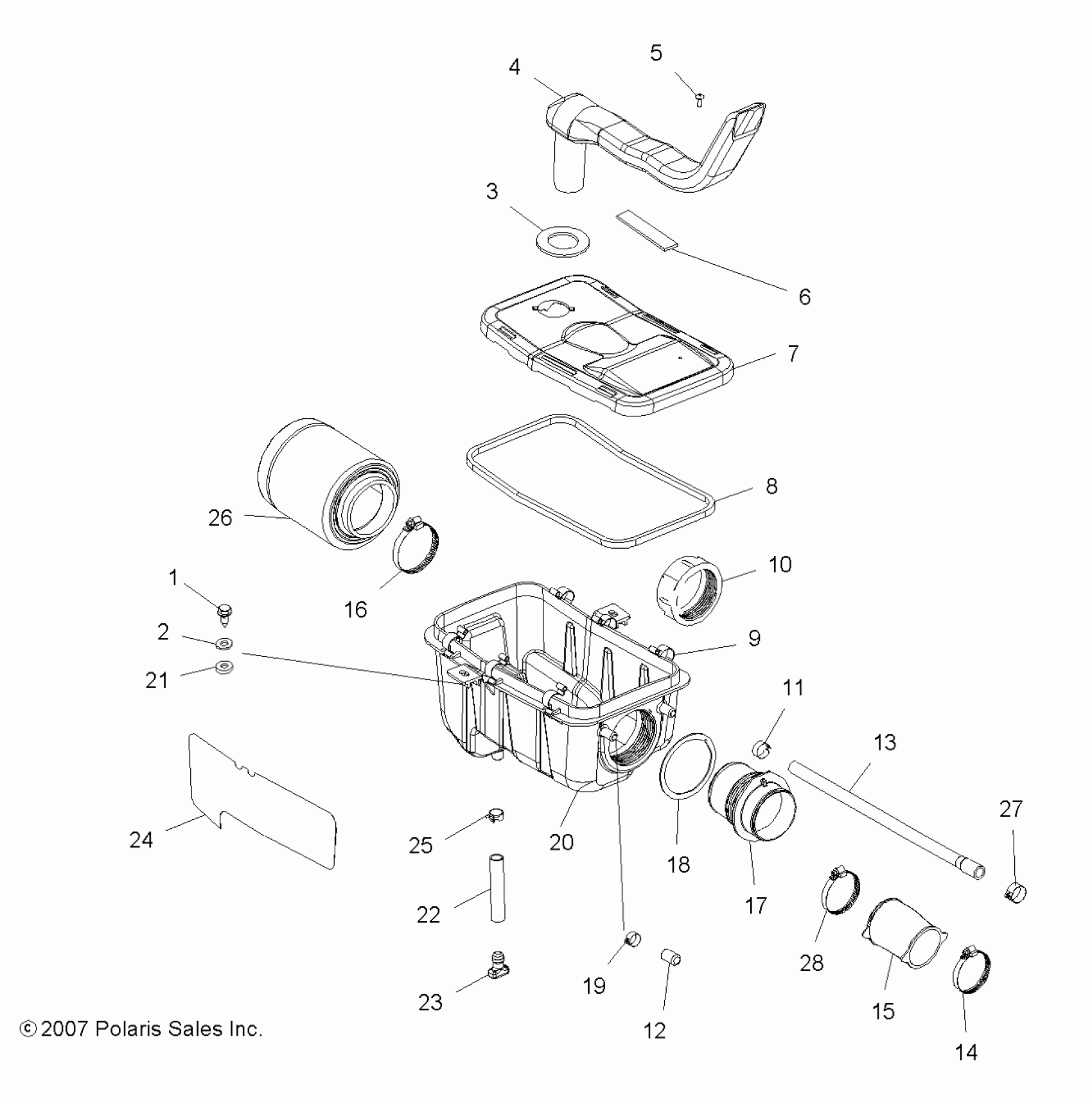

Polaris TRAIL BLAZER 330 - A08BA32AA ENGINE, AIR INTAKE SYSTEM - A08BA32AA (49ATVAIRBOX08TB) Diagram

Description

Price

Screw

7518306

$3.99

Washer, Flat

7558301

$1.49

Seal

5812023

$6.63

Duct, Inlet

5437437

$45.59

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

Pad

5810317

Unavailable

Cover, Air Box

5433769

$89.99

Seal, Cover

5812829

$27.02

CLIP-AIR BOX

5242044

$9.59

Collar, Carburetor Inlet

5432601

$12.79

Clamp, Hose

7080699

$1.59

Cap, End

5433396

$4.79

Hose, Breather

5411866

$11.59

Clamp, Narrow Band

7080511

$4.79

Boot, Carburetor

5411588

Unavailable

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

Duct, Carburetor Inlet

5433180

$32.37

Gasket, Carburetor Inlet

5830128

Unavailable

Clamp, Hose

7080534

$1.59

Box, Air Intake

5435759

Unavailable

Washer, Nylon

7555932

$2.39

Hose, Drain, Formed

5412111

$11.59

Plug, Trap

5435299

$6.39

Foil, RH

5812111

Unavailable

Clamp, Hose

7080650

$3.99

Filter, Air

1253372

$27.99

Clamp, Hose

7080694

$6.53

Clamp, Narrow Band

7080413

$3.19
