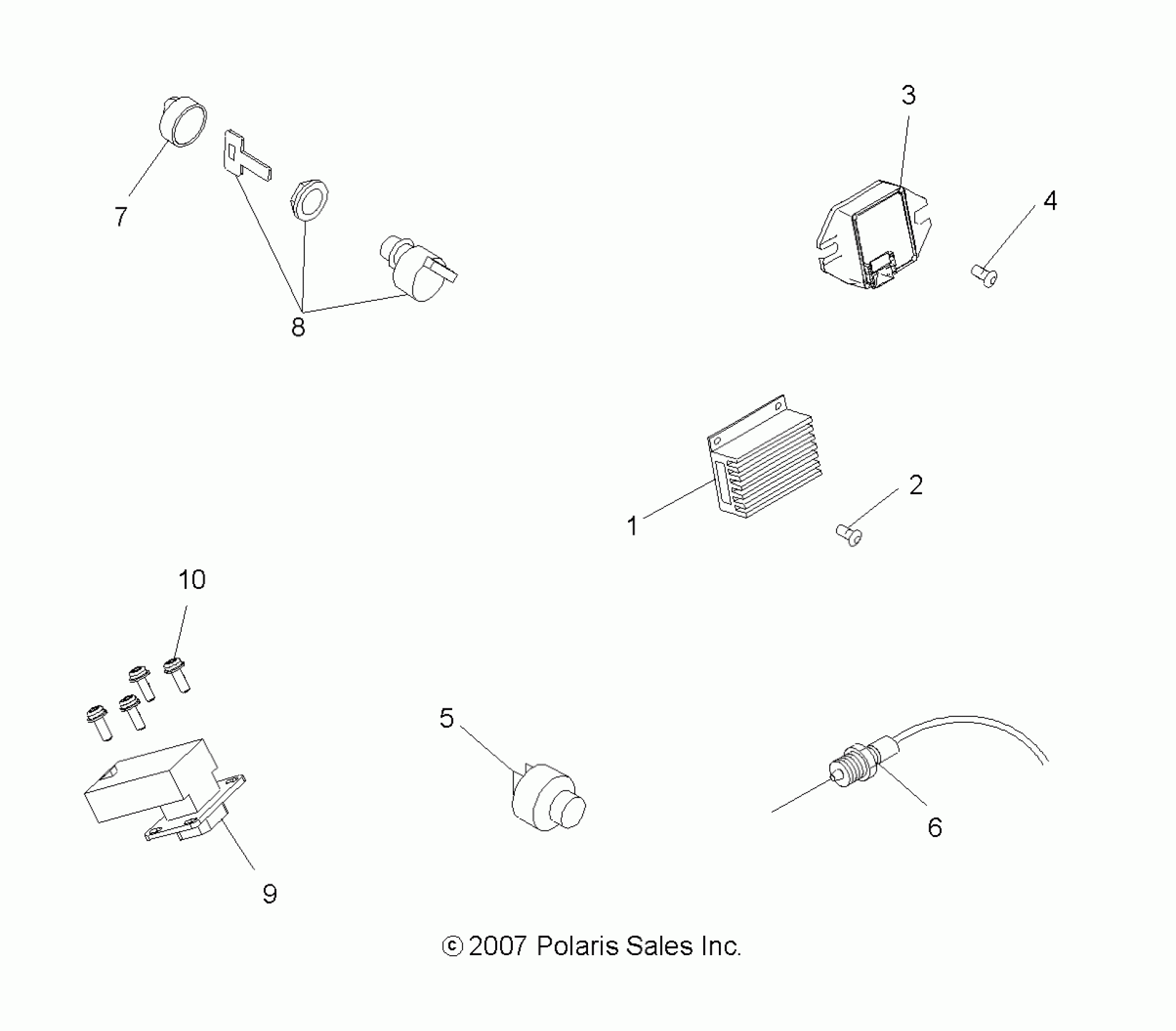

Polaris TRAIL BLAZER 330 - A08BA32AA ELECTRICAL, SWITCHES and SENSORS and CONTROL MODULES - A08BA32AA (49ATVELECT08SCRAM) Diagram

#

Description

Price

1

Controller, Module

4011831

$586.65

2

SCREW

7512024

$4.76

3

Limiter, RPM

4011856

$123.02

4

Screw

7512084

$1.19

5

Switch [Brake Light]

4110164

$204.24

6

Thermister

4010934

Unavailable

7

KEY SWITCH KEY COVER

5433534

$13.75

8

Switch, Key, 3 Position [Incl. 7]

4012165

$109.27

8

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: Ignition Key blank may be ordered by using the four digit number on the key.

4010278

$14.56

8

NUT-IGNITION SWITCH,HOBBS

5433733

$23.81

9

Switch, 3 Position, Gear Indication

3234002

$174.99

10

SCREW

3233749

$5.65
