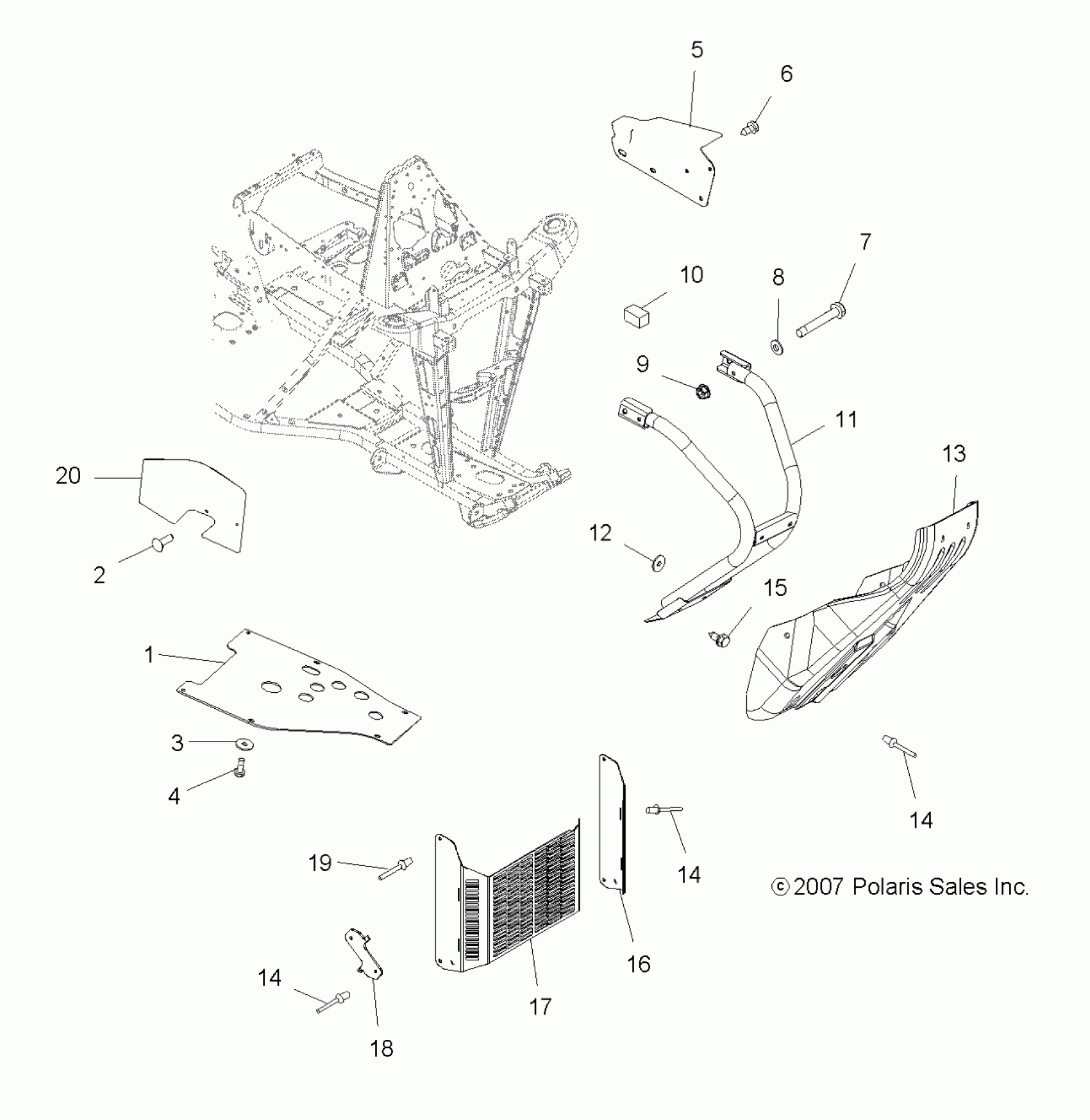

Polaris TRAIL BLAZER 330 - A08BA32AA CHASSIS, FRONT BUMPER - A08BA32AA (49ATVBUMPER08TB) Diagram

#

Description
Price

1

Guard, Rock

5432763

$87.99

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

Washer, Flat

7555859

$1.49

4

SCREW

7512232

$1.49

5

Shield, Splash, Black, LH

5245394-067

$15.67

6

SCREW

7517386

$1.49

7

Bolt

7512329

$3.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

PLUG, FRAME

5810467

Unavailable

11

Bumper, Front, Black

1012773-067

$259.99

12

Washer, Flat

7558201

$5.79

13

Plate, Skid, Bumper, Black

5432378-070

$92.39

14

RIVET

7621418

$1.49

14

RIVET

7621418

$1.49

14

RIVET

7621418

$1.49

15

Bolt

7515399

$1.49

16

Shield, Radiator, Side, Black, LH

5248297-067

$22.06

17

Shield, Radiator, Side, Black, RH

5248298-067

Unavailable

18

Bracket, Radiator Shield

5248299

Unavailable

19

Rivet

7661121

Unavailable

20

Guard, Splash, RH

5434085

$28.95
