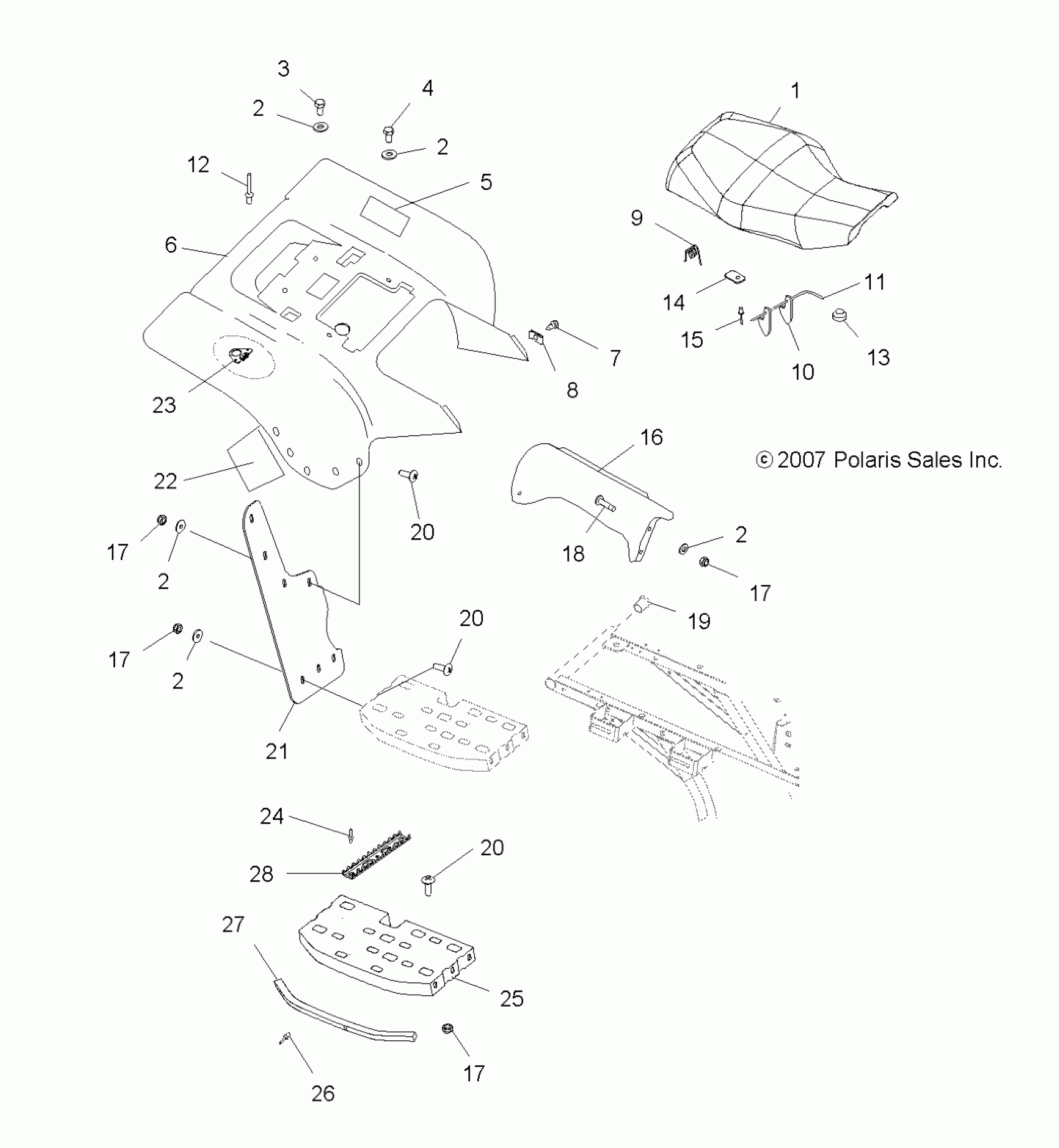

Polaris TRAIL BLAZER 330 - A08BA32AA BODY, REAR CAB - A08BA32AA (49ATVCABRR08SCRAM) Diagram

#

Description
Price

1

Asm., Seat, Black w/White "POLARIS" [Incl. 9-11,13-15]

2684152-070

Unavailable

1

Cover, Seat, Black

2684094

Unavailable

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

Bolt

7512232

$1.19

4

SCREW

7512242

$2.38

5

Foil, Small

5810991

Unavailable

6

Cab, Rear, Indy Red

5430007-293

$479.99

7

Screw

7517916

$6.35

8

NUT, SPEED

7670057

$1.19

9

Spring, Latch, Light

7041607

Unavailable

10

Latch, Seat

1040412

Unavailable

11

Cap, Seat Latch

5411392

Unavailable

12

RIVET

7621472

$1.49

13

BUMPER-RUBBER

5412067

$3.97

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

RIVET

7621403

$1.19

16

Foil

5811230

Unavailable

16

Asm., Shield, Muffler w/Foil

2632280

Unavailable

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

18

Screw

7517264

$3.97

19

Plug, End Cap, Ribbed

5432831

$5.65

20

Bolt

7512282

Unavailable

20

Bolt

7512282

Unavailable

20

Bolt

7512282

Unavailable

21

Mudflap, Rear, LH

5812134

Unavailable

22

Foil

5810957

Unavailable

22

Mudflap, Rear, RH

5812543

Unavailable

23

Bracket, Rear Holddown

5220880

Unavailable

24

RIVET

7621472

$1.49

25

Footpad, Black

1014653-067

$73.81

26

Rivet

7661825

$0.63

27

Trim, Footrest

5431484

Unavailable

28

Bracket, Heel Cleat, Black

5242525-067

$16.35
