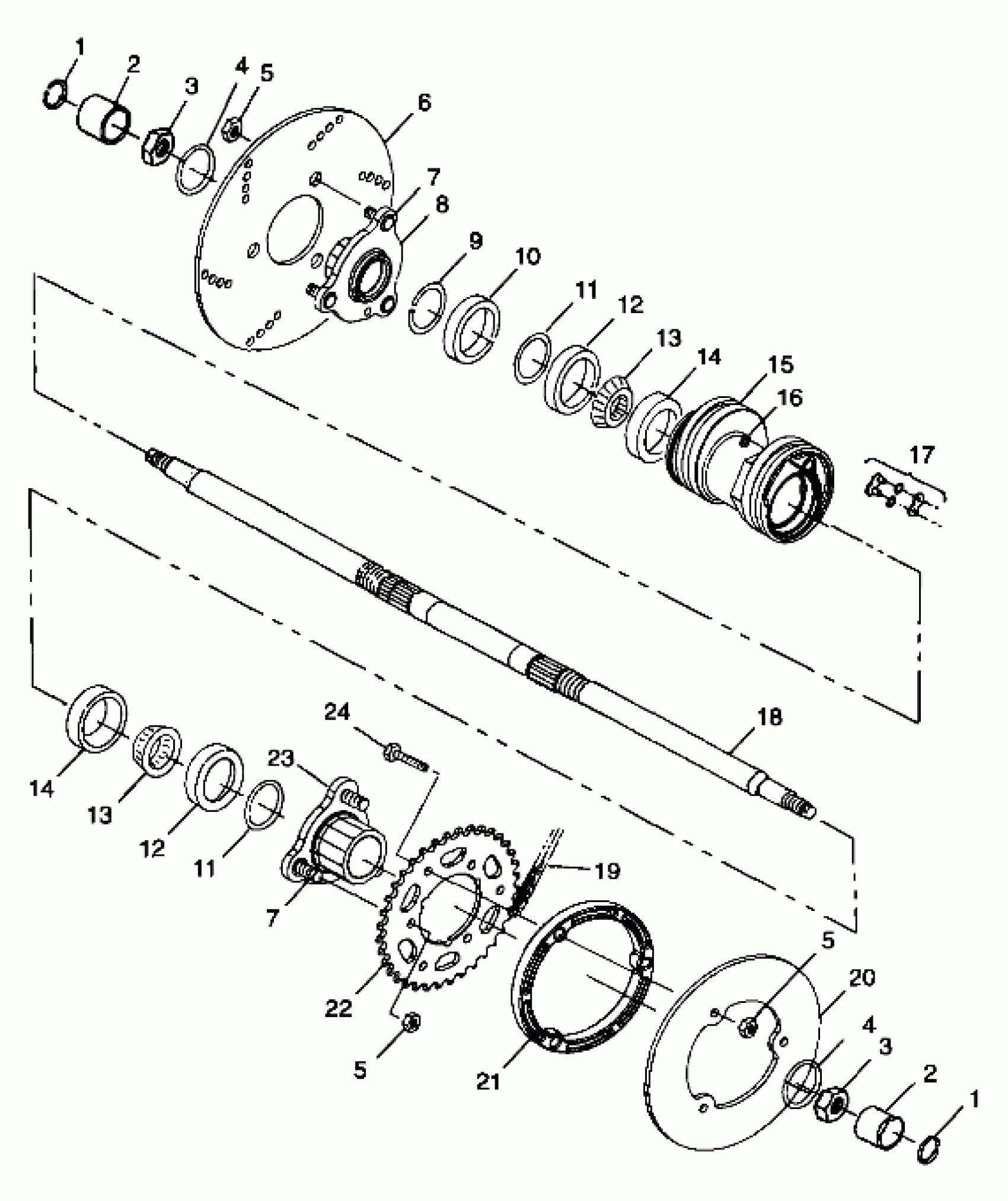

Polaris TRAIL BLAZER 250 - A99BA25CA REAR HOUSING - A99BA25CA (4949574957c001) Diagram

#

Description
Price

1

RING,RETAINING

7710472

$5.59

1

RING,RETAINING

7710472

$5.59

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

3

NUT,JAM

7547031

$27.99

3

NUT,JAM

7547031

$27.99

4

SEAL,FOAM

5411555

$13.59

4

SEAL,FOAM

5411555

$13.59

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

DISC,BRAKE,VENTED

5211849

Unavailable

7

STUD(10)

7515513

$1.49

7

STUD(10)

7515513

$1.49

8

HUB ASM,BRK.DISC,LOCKING (Incl. 7)

1520259

Unavailable

9

RING, SNAP(10)

7710405

$4.79

10

SPACER,AXLE

5010462

$27.99

11

O RING

5410889

Unavailable

11

O RING

5410889

Unavailable

12

SEAL,LIP

3610070

$15.99

12

SEAL,LIP

3610070

$15.99

13

BEARING,CONE,TAPERED

3554518

$39.99

13

BEARING,CONE,TAPERED

3554518

$39.99

14

BEARING,CUP,TAPERED

3554517

$15.99

14

BEARING,CUP,TAPERED

3554517

$15.99

15

HOUSING-AXLE,REAR(MACH)

5132098

$115.99

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

17

CONNECTOR LINK,CHAIN

3225026

Unavailable

18

AXLE-REAR,HYBRID,STD

5131968

Unavailable

19

CHAIN,88P,(520 O-RING)

3224056-088

Unavailable

20

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

21

SPACER-SPROCKET GUARD

5630586

Unavailable

22

SPROCKET, 38T

3222065

Unavailable

23

HUB ASM,SPKT,LOCKING (Incl. 7)

1520258

$103.99

24

BOLT(10)

7515540

$4.79
