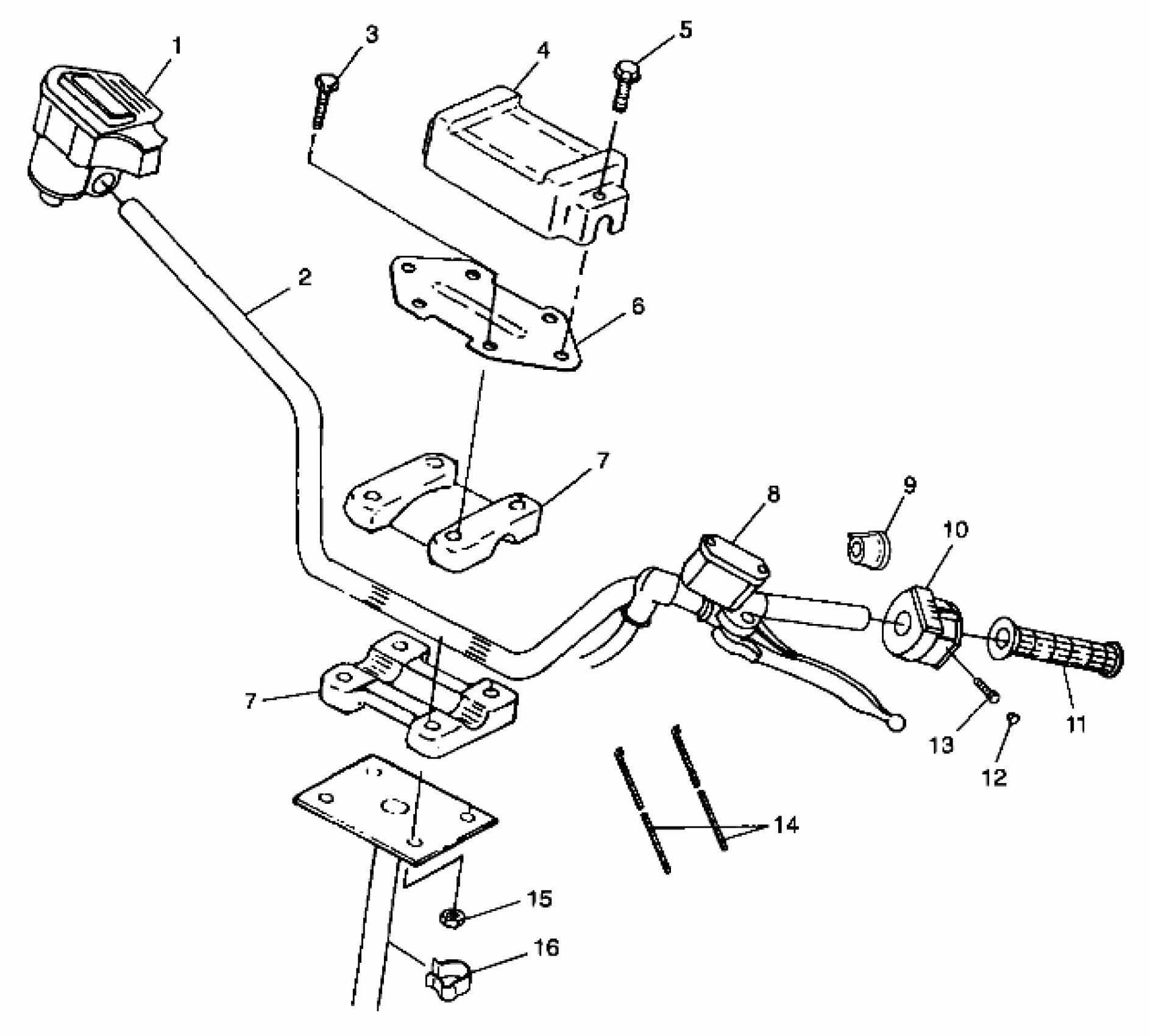

Polaris TRAIL BLAZER 250 - A99BA25CA HANDLEBAR - A99BA25CA (4949574957b005) Diagram

Asm., Throttle Control (See Footnote) (See Controls - Throttle Asm./Cable Pg. B7, Ref. 3)

-------

Unavailable

TUBE,HANDLEBAR,BLK

5242988-067

Unavailable

SCREW(10)

7515189

Unavailable

PAD, HANDLEBAR

5810379

$40.46

SCREW Substituted by 7515197

7517395

Unavailable

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

KIT,H'BAR BLOCK (Incl. 3,15)

2200774

Unavailable

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

KIT,H'BAR BLOCK (Incl. 3,15)

2200774

Unavailable

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

Asm., Master Cylinder (See Footnote) (See Controls - Master Cylinder/Brake Line Pg. B8 for Details)

-------

Unavailable

SPACER,SWITCH,LH

5432926

$2.63

SWITCH-HANDLEBAR,ON/OFF,LH

4110248

Unavailable

GRIP, HANDLEBAR

5431030

$24.27

PLUG,HOLE(10)

5432952

$5.59

SCREW,SET

7517625

$4.79

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

NUT-LOCK(10)

7542122

$1.49

CLIP,CABLE RETAIN,(10)

7080631

$6.29
