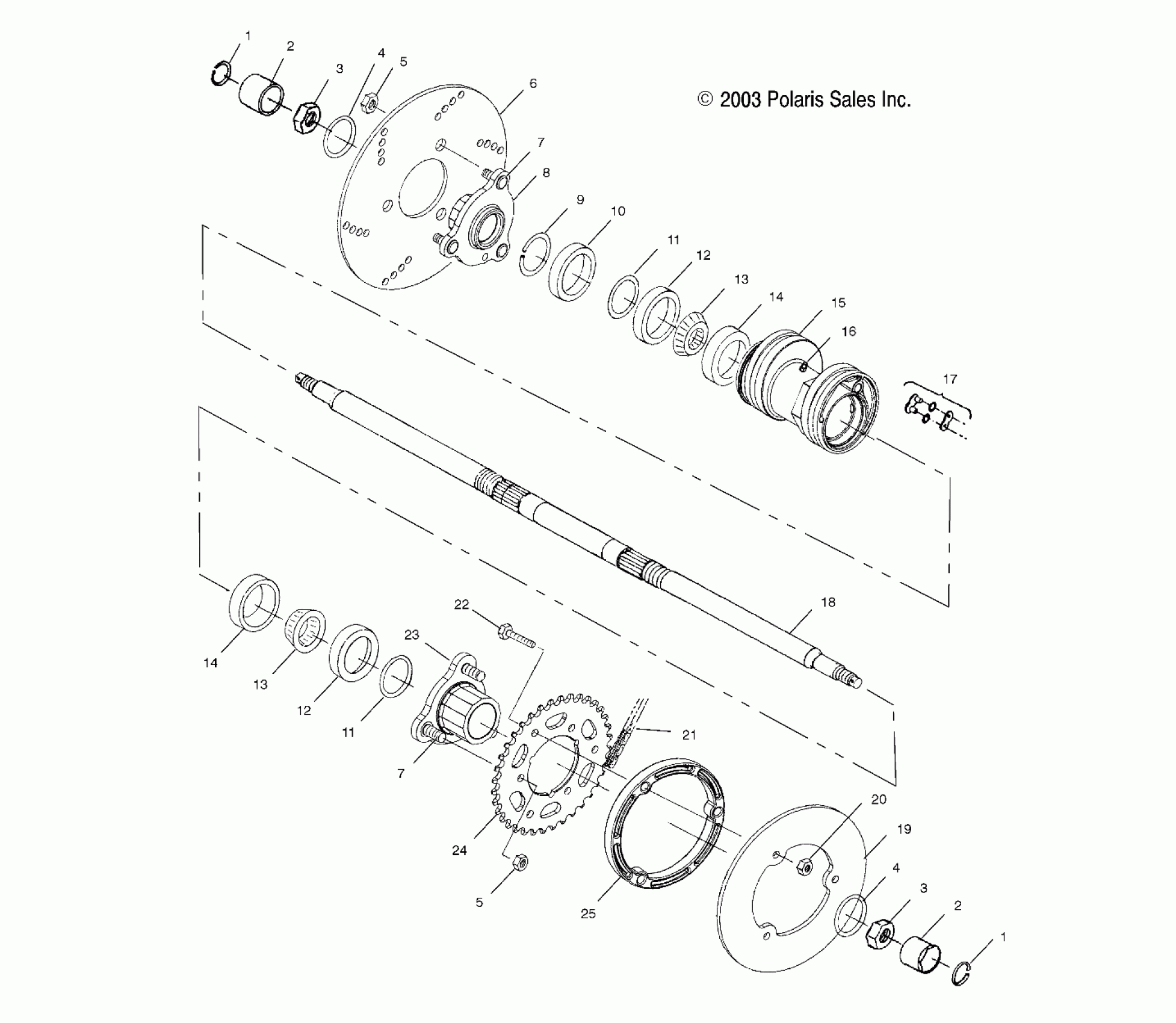

Polaris TRAIL BLAZER 250 - A03BA25CA/CB REAR HOUSING - A03BA25CA/CB (4986228622C03) Diagram

#

Description
Price

1

Ring, Retaining

7710472

$5.59

1

Ring, Retaining

7710472

$5.59

2

Extrusion, Retainer, Nut

5510313

$54.99

2

Extrusion, Retainer, Nut

5510313

$54.99

3

Nut

7547196

$34.99

3

Nut

7547196

$34.99

4

Seal, Foam

5411555

$13.59

4

Seal, Foam

5411555

$13.59

5

Nut, Nylok

7542439

$1.49

5

Nut, Nylok

7542439

$1.49

6

Disc, Brake

5243678

Unavailable

7

Stud

7515513

$1.49

7

Stud

7515513

$1.49

8

Hub, Brake Disc [Incl. 7]

1520259

Unavailable

9

Ring, Retaining

7710405

$4.79

10

Spacer, Axle

5010462

$27.99

11

O-Ring

5410889

Unavailable

11

O-Ring

5410889

Unavailable

12

Seal

3610070

$15.99

12

Seal

3610070

$15.99

13

Bearing, Cone, Tapered

3554518

$39.99

13

Bearing, Cone, Tapered

3554518

$39.99

14

Bearing, Cup, Tapered

3554517

$15.99

14

Bearing, Cup, Tapered

3554517

$15.99

15

Housing, Axle, Rear

5132098

$115.99

16

Fitting, Lubrication

7080306

$3.19

17

Link, Connector, 520

3225026

Unavailable

18

Axle, Rear

5133181

$699.99

19

Guard, Sprocket, 38T

5211585-067

Unavailable

20

NUT, FLANGE LOCK

7547108

$4.79

21

Chain, 520 O-Ring

3224056-076

$121.41

22

Bolt

7512404

$3.99

23

Asm., Hub, Sprocket [Incl. 7]

1520258

$103.99

24

Sprocket, 36T

3222109

$105.59

25

Spacer

5630586

Unavailable
