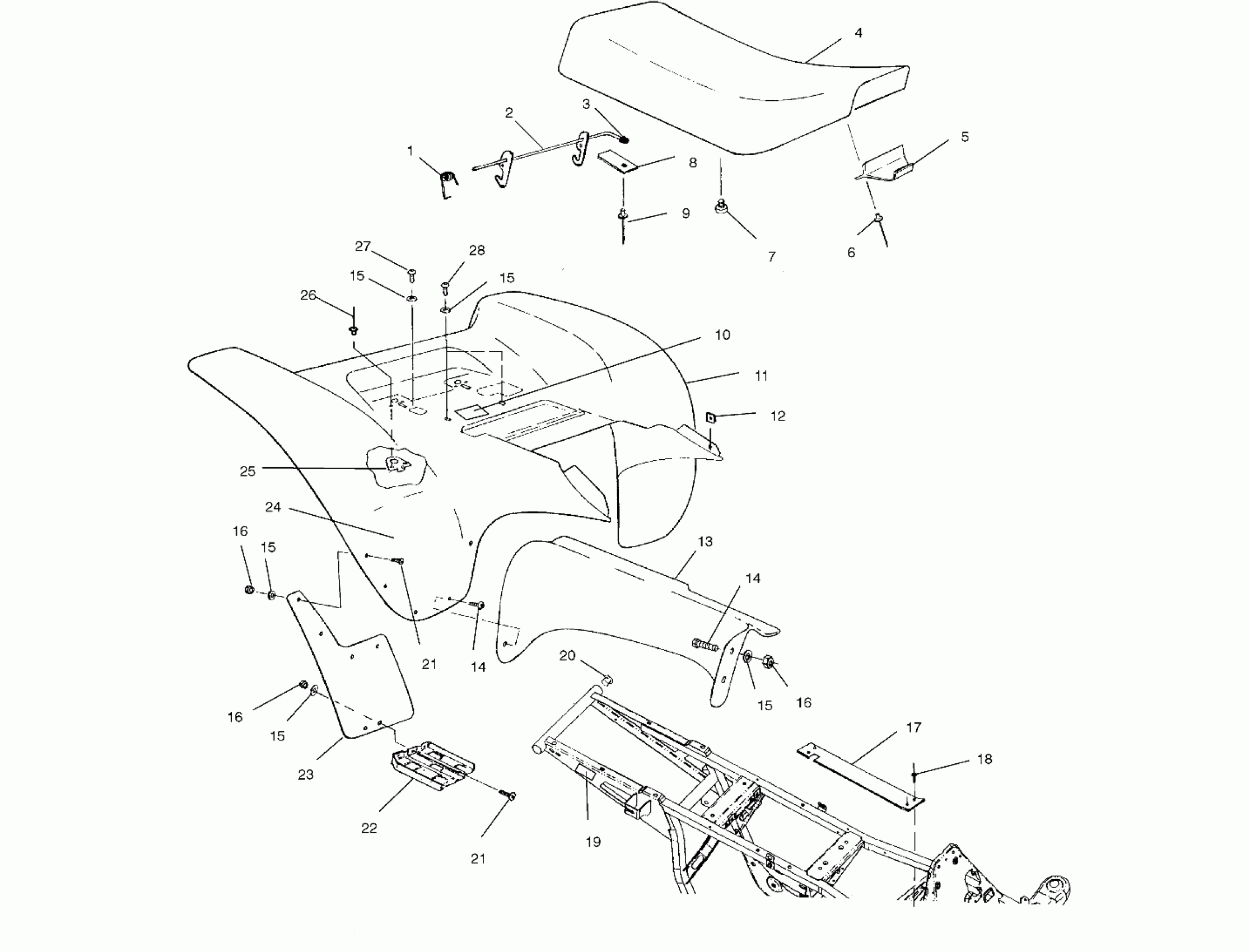

Polaris TRAIL BLAZER 250 - A03BA25CA/CB REAR CAB - A03BA25CA/CB (4975037503A04) Diagram

#

Description
Price

1

Spring, Latch

7041607

Unavailable

2

Latch, Seat

1040412

Unavailable

3

Cap, Seat Latch

5411392

Unavailable

4

Covering, Seat, Black

2681769-070

Unavailable

4

Asm., Seat, Black w/White "POLARIS"

2682453-070

Unavailable

5

Tongue, Seat

5431986

$10.51

6

RIVET

7621479

$1.98

7

BUMPER-RUBBER

5412067

$3.97

8

BRACKET, LEVER RETAINER

5211033

$34.99

9

RIVET

7621403

$1.19

10

Decal, Carb/Filter Information

7079901

Unavailable

11

Cab, Rear, Med Sonic Blue (CB)

5434014-341

Unavailable

11

Cab, Rear, Med Yellow (CA)

5434014-053

Unavailable

12

NUT, U-TYPE SPEED

7670057

$1.19

13

Foil

5811230

Unavailable

13

Asm., Muffler Shield

2632280

Unavailable

14

Screw

7517264

$3.97

14

Screw

7517264

$3.97

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

15

Washer, Flat

7555859

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

16

Nut, Nylok

7542122

$1.19

17

Guard, Clutch

5241403-067

$5.71

18

RIVET-3/16-.090-.290

7661637

$1.19

19

DECAL-REFLECT.2.88,RED

7079925

$8.08

20

Plug, End Cap, Ribbed

5432831

$5.65

21

Bolt

7512282

Unavailable

21

Bolt

7512282

Unavailable

22

FOOTPAD [SEE FRONT CAB PG. A3, REF. 25]

----

Unavailable

23

Mudflap, Rear, RH

5850148

Unavailable

23

Mudflap, Rear, LH

5812134

Unavailable

24

Foil, Rear Cab

5810957

Unavailable

24

Foil, Rear Cab, Small

5810991

Unavailable

25

Bracket, Rear Seat Holddown

5220880

Unavailable

26

RIVET

7621472

$1.49

27

SCREW

7512232

$1.19

28

SCREW

7512242

$2.38
