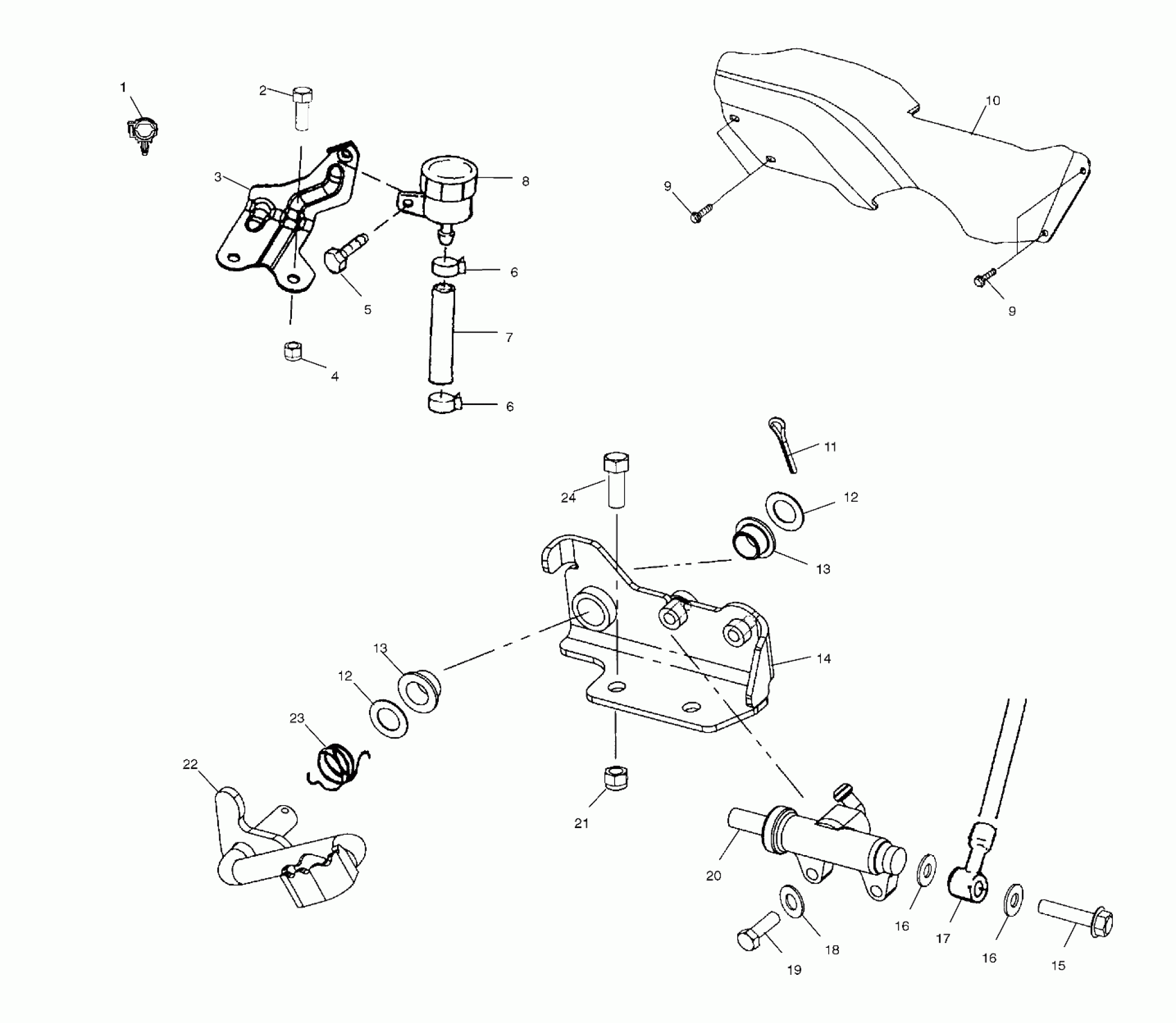

Polaris TRAIL BLAZER 250 - A03BA25CA/CB REAR BRAKE MASTER CYLINDER - A03BA25CA/CB (4982568256B11) Diagram

#

Description
Price

1

Clip

7670102

$2.38

2

Bolt

7512113

$3.97

3

Bracket, Reservoir Mount

5244091-067

$5.71

4

Nut, Nylok

7542122

$1.19

5

SCREW

7517386

$1.19

6

HOSE CLAMP, RED

7080003

$1.19

6

HOSE CLAMP, RED

7080003

$1.19

7

Hose, Reservoir

1910404

Unavailable

8

Reservoir

1930854

$36.41

9

Screw

7517916

$6.35

9

Screw

7517916

$6.35

10

Guard, Prop Shaft, Side

5433457

$94.44

11

PIN, COTTER

7661401

$0.79

12

WASHER

7555919

$4.99

12

WASHER

7555919

$4.99

13

BUSHING-PEDAL PIVOT

5431107

$8.73

13

BUSHING-PEDAL PIVOT

5431107

$8.73

14

Mount, Brake

1910375-067

Unavailable

15

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

16

Seal

5410988

$4.84

16

Seal

5410988

$4.84

17

LINE, FOOT BRAKE, REAR [SEE REAR CALIPER MOUNTING PG., REF. 6]

----

Unavailable

18

WASHER, SPRING LOCK

7552801

$1.59

19

Screw

7515179

$2.38

20

Asm., Foot Brake Master Cylinder

1910311

$174.03

21

NUT-5/16-18 NYLOK-Y

7542324

$0.79

22

Rod, Brake

1910377-067

Unavailable

23

SPRING-TORSION,BRAKE

7041750

$8.89

24

Screw

7515321

Unavailable
