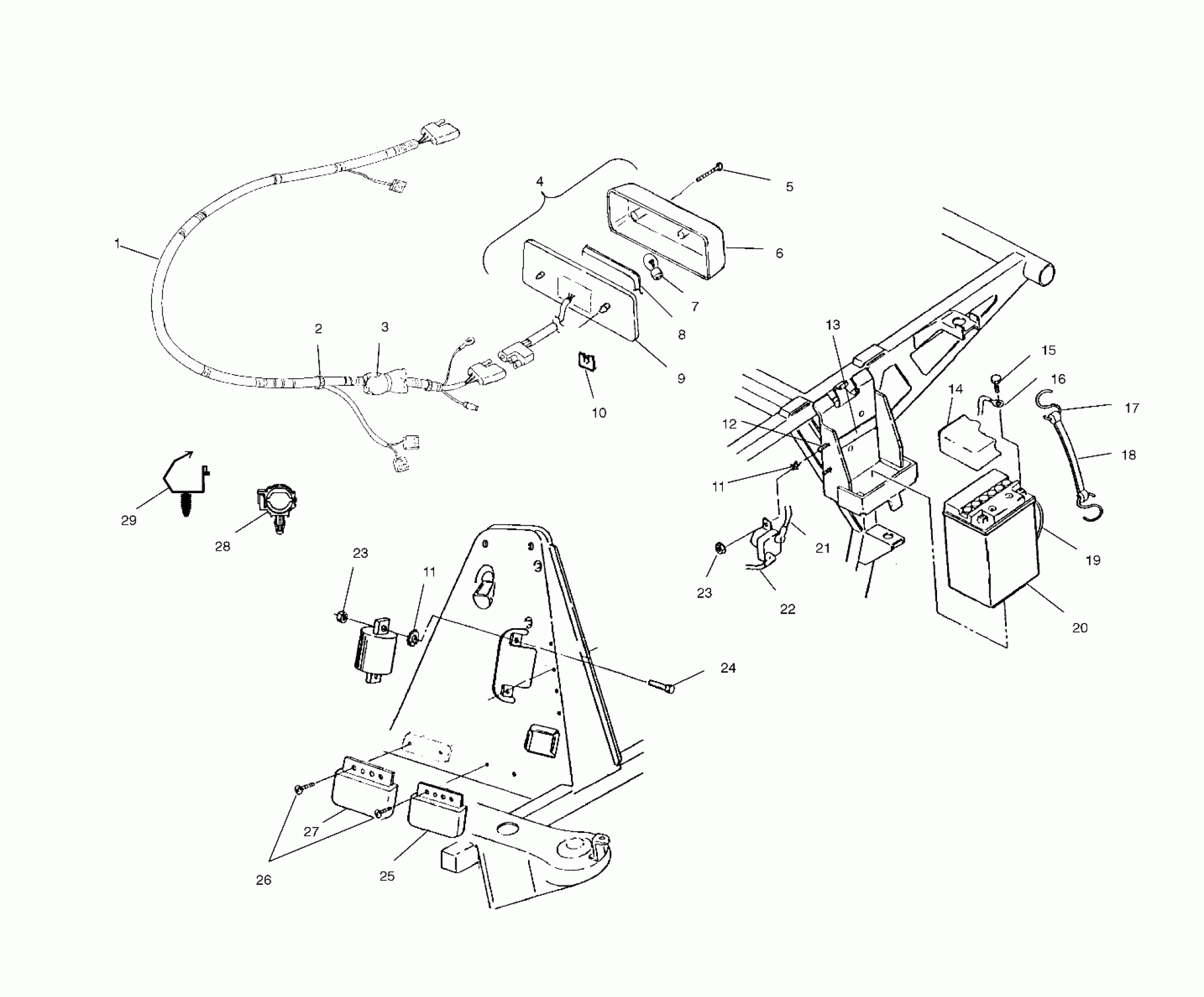

Polaris TRAIL BLAZER 250 - A03BA25CA/CB ELECTRICAL/TAILLIGHT - A03BA25CA/CB (4975037503B10) Diagram

#

Description
Price

1

Kit, Fusible Link

2202147

$84.99

1

Harness, Main [If built before 10/01/02]

2461056

Unavailable

1

Harness, Main [If built after 10/01/02]

2461158

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Kit, Circuit Breaker, 20 AMP

2200593

$68.79

4

Taillight, 12V

2410319

$84.98

5

Screw

7512088

$1.64

6

Lens

4032085

$36.41

7

Bulb

4030043

$6.46

8

Gasket

4032086

Unavailable

9

Backing

4032087

Unavailable

10

Clip

7670093

Unavailable

11

Washer

7571602

$4.76

11

Washer

7571602

$4.76

12

Screw

7512027

$1.19

13

PAD-BATTERY

5810290

$7.27

14

Cover, Battery

5431769

$15.37

15

Kit, Battery Bolt, Short

2200361

Unavailable

16

Cable, Battery/Engine, Black

4010095

Unavailable

17

Hook, Battery Strap

7010032

$1.59

18

Strap, Battery Holddown

5410424

$4.84

19

Tube, Battery Vent

5432077

$8.89

19

Clamp

7080303

Unavailable

20

Battery

4140006

$99.99

21

Cable, Battery/Solenoid

4010094

Unavailable

22

Cable, Solenoid/Starter

4010129

Unavailable

23

Nut, Nylok

7541925

$0.79

23

Nut, Nylok

7541925

$0.79

24

BOLT

7512007

$3.97

25

Rectifier, LR39-1

4060208

Unavailable

26

SCREW

7512024

$4.76

27

Limiter, LR491

4010186

$81.75

28

Clip, Rosebud

4020149

$6.35

29

CLIP, ROUTING

7670109

$2.38
