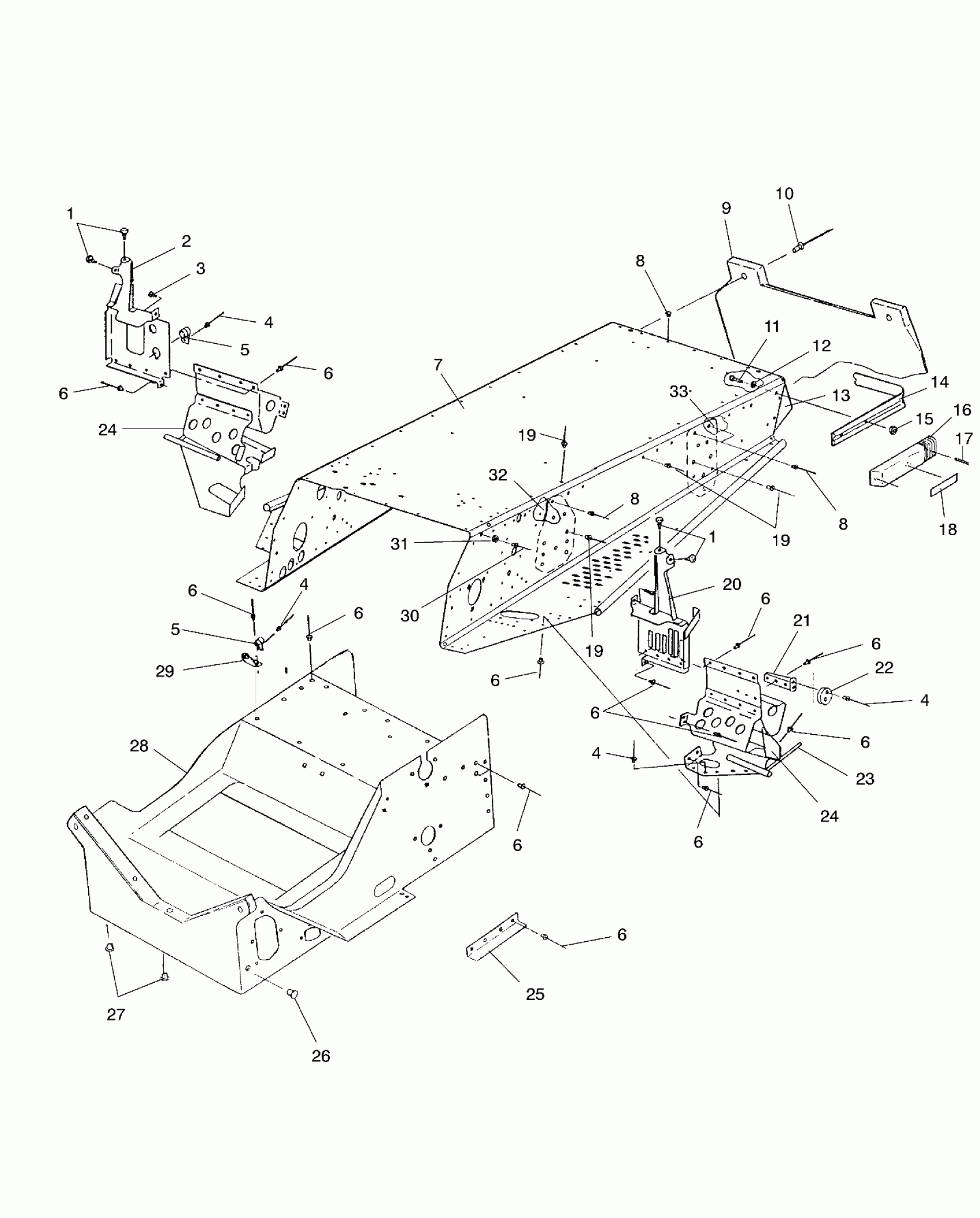

Polaris TRAIL - 099EB4ESA TUNNEL - 099EB4ESA (4948344834a005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

MT,CONSOLE,RH

1011952-067

$339.99

3

SCREW(10)

7512057

$2.38

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

GUIDE, RECOIL

5431385

$10.51

5

GUIDE, RECOIL

5431385

$10.51

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

7

TUNNEL ASM,F/C

1012330

Unavailable

8

RIVET ,(50)

7661836

$0.63

8

RIVET ,(50)

7661836

$0.63

8

RIVET ,(50)

7661836

$0.63

9

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

10

POP RIVET(50)

7621418

$1.49

11

BOLT(10)

7512240

$3.99

12

WASHER(10)

7558301

$1.49

13

PANEL,TUNNELBACK

5241053-067

$308.99

14

BUMPER,REAR,STD.

5224674-067

Unavailable

15

NUT-LOCK(10)

7542122

$1.49

16

CAP, BUMPER, BLK.

5430930-070

Unavailable

17

SCREW(10)

7511863

$1.99

18

REFLECTOR RED

2670070

$9.91

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

20

MT,CONSOLE,LH

1011951-067

$35.51

21

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

22

STOP,SIDEPANEL BUMPER

5411172

Unavailable

23

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

23

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

24

FOOTREST ASM,LH

1011954

Unavailable

24

FOOTREST ASM,RH

1011955

$126.41

24

FOOTREST ASM,LH

1011954

Unavailable

24

FOOTREST ASM,RH

1011955

$126.41

25

GUARD,ADAPTER GUIDE

5222857

$12.94

26

PLUG, HOLE(10)

7080416

$5.65

27

PLUG-HOLE

7080398

$4.84

28

BULKHEAD

1012654-067

Unavailable

29

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99

30

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

31

SNAP-MALE(10)

7080227

Unavailable

32

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

32

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

33

PAD,LH,R.SUSP.

5241268-067

Unavailable

33

PAD,RH,R.SUSP.

5241269-067

Unavailable
