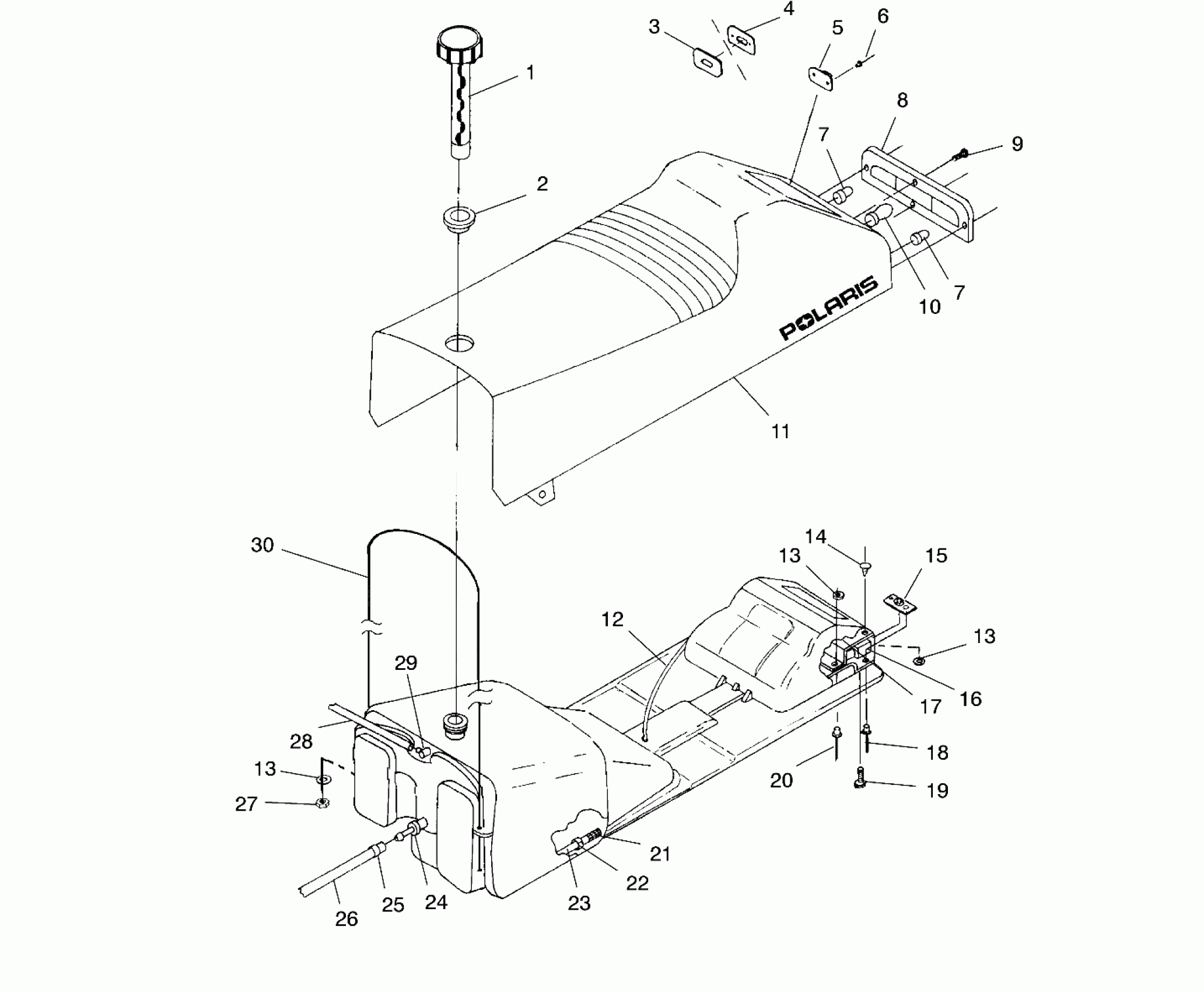

Polaris TRAIL - 099EB4ESA SEAT and GAS TANK - 099EB4ESA (4948344834a009) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410815

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

LENS,TAILLIGHT

5430423

Unavailable

9

SCREW(10)

7511840

Unavailable

10

Bulb, Brakelight

4030045

Unavailable

11

COVER ASM,SEAT,LONG (099EB4ES)

2682412

Unavailable

11

COVER ASM,SEAT (099EB4ESA)

2682407

Unavailable

11

SEAT ASM. (See Footnote) (Incl.3-15,20-24,29,30)(099EB4ES)

2682411

$440.99

11

SEAT ASM. (See Footnote) (Incl.3-15,20-24,29,30)(099EB4ESA)

2682413

$399.99

12

HARNESS,TAILLIGHT

2460398

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

CLIP,DART,(10)

7670097

Unavailable

15

NUT,RETAINER-WELD.(10)

7542147

$17.59

16

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

17

COVER,T/L PROTECTOR

5431436

$21.43

18

RIVET(50)

7621301

$3.99

19

SCREW(10)

7512242

$2.39

20

RIVET(50)

7621464

$3.99

21

FUELPICKUP,W/STRAINER

7052037

$12.94

22

RING, COMPRESSION(10)

7080402

$1.60

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FITTING - OUTLET(10)

7052023

$24.99

25

HOSE CLAMP, RED

7080003

$1.49

26

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

NUT(10)

7541925

$1.49

28

FUELLINE,3MMX7MM

8450061-600

Unavailable

29

FITTING,90 DEG,1/8,(10)

7052095

$4.79

30

CABLE,TANK,RETENTION

7080559

Unavailable
