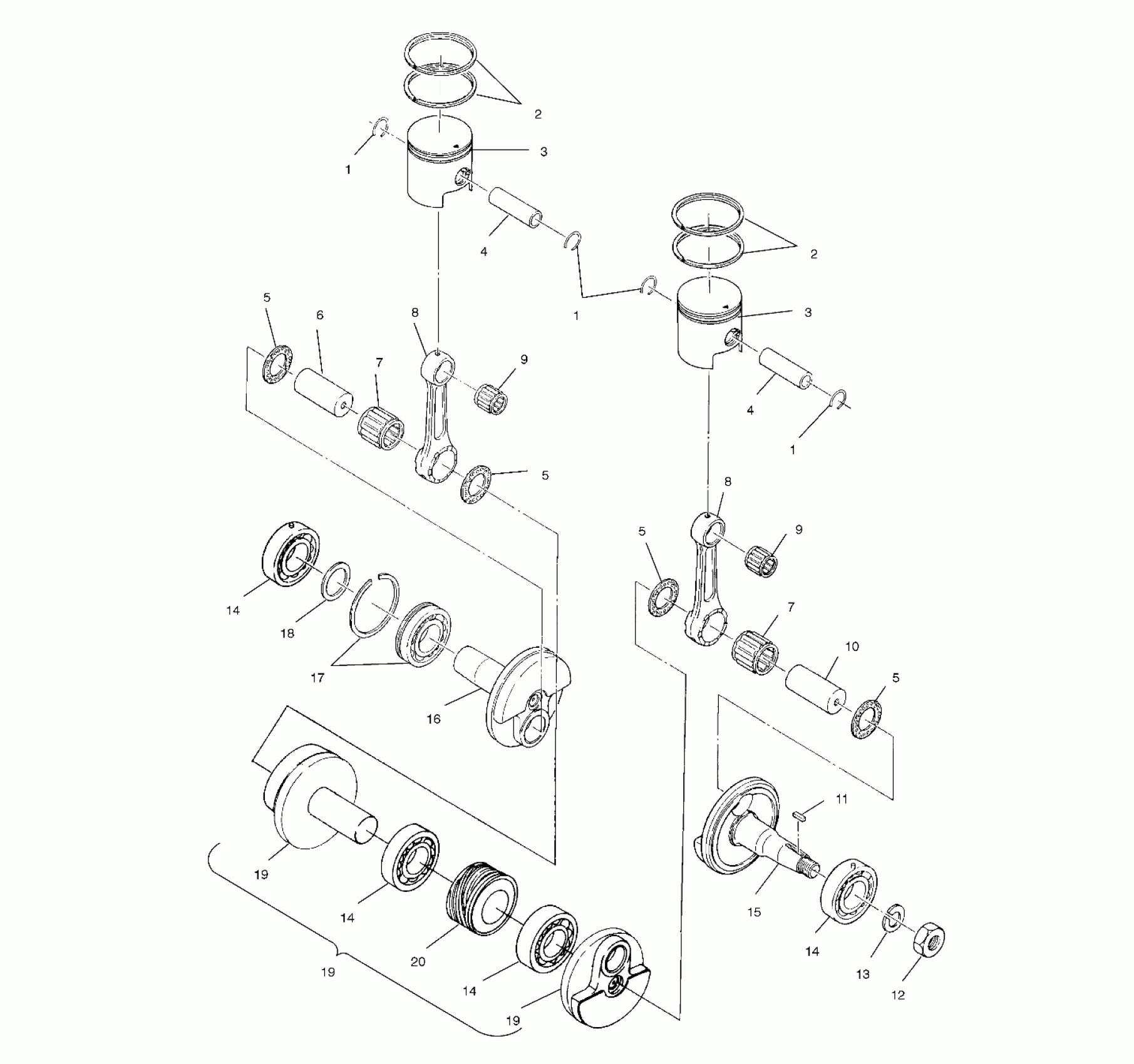

Polaris TRAIL - 099EB4ESA PISTON and CRANKSHAFT - 099EB4ESA (4948344834c006) Diagram

#

Description
Price

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

1

CLIP,PISTON PIN,(10)

3083839

$4.75

2

RING, PISTON (Standard)

3083546

Unavailable

2

RING,.020 O/S (0.50 O/S)

3083717

$28.56

2

RING,.010 O/S (0.25 O/S)

3083678

Unavailable

2

RING, PISTON (Standard)

3083546

Unavailable

2

RING,.020 O/S (0.50 O/S)

3083717

$28.56

2

RING,.010 O/S (0.25 O/S)

3083678

Unavailable

3

PISTON ASM. (Standard)

3083841

Unavailable

3

PISTON ASM, (.020) (0.50 O/S)(Incl. 1)

3083842

Unavailable

3

PISTON,(.010 O/S) (0.25 O/S)(Incl. 1)

3084600

Unavailable

3

PISTON ASM. (Standard)

3083841

Unavailable

3

PISTON ASM, (.020) (0.50 O/S)(Incl. 1)

3083842

Unavailable

3

PISTON,(.010 O/S) (0.25 O/S)(Incl. 1)

3084600

Unavailable

4

Pin, Piston

3083838

$27.99

4

Pin, Piston

3083838

$27.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING,LARGE END Substituted by 3086390

3085720

$1,634.99

7

BEARING,LARGE END Substituted by 3086390

3085720

$1,634.99

8

ROD-CONNECTING

3083252

$164.99

8

ROD-CONNECTING

3083252

$164.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

PIN,CRANK

3083233

$36.41

11

KEY

3081447

Unavailable

12

NUT

3083093

$19.99

13

WASHER-SPRING(10)

3083094

$3.17

14

BEARING,BALL

3084601

$49.99

14

BEARING,BALL

3084601

$49.99

14

BEARING,BALL

3084601

$49.99

14

BEARING,BALL

3084601

$49.99

15

CRANKSHAFT #1 (Mag Side)

3083362

Unavailable

15

CRANKSHAFT ASM. Substituted by 3084585 (Incl. 5-8,10,14-19)

3084369

Unavailable

16

CRANKSHAFT #3 Substituted by 3084357 (PTO Side)

3083364

Unavailable

17

BEARING, BALL

3084587

Unavailable

18

SPACER,CRANKSHAFT

3080447

$1.99

19

CRANKSHAFT, CTR. (Incl. 6,10,14,20)

3084370

Unavailable

19

CRANKSHAFT, CTR. (Incl. 6,10,14,20)

3084370

Unavailable

19

CRANKSHAFT, CTR. (Incl. 6,10,14,20)

3084370

Unavailable

20

DRIVEGEAR,OILPUMP

3083780

$107.99
