OIL TANK / AIR BOX - 099EB4ESA (4948344834c003)

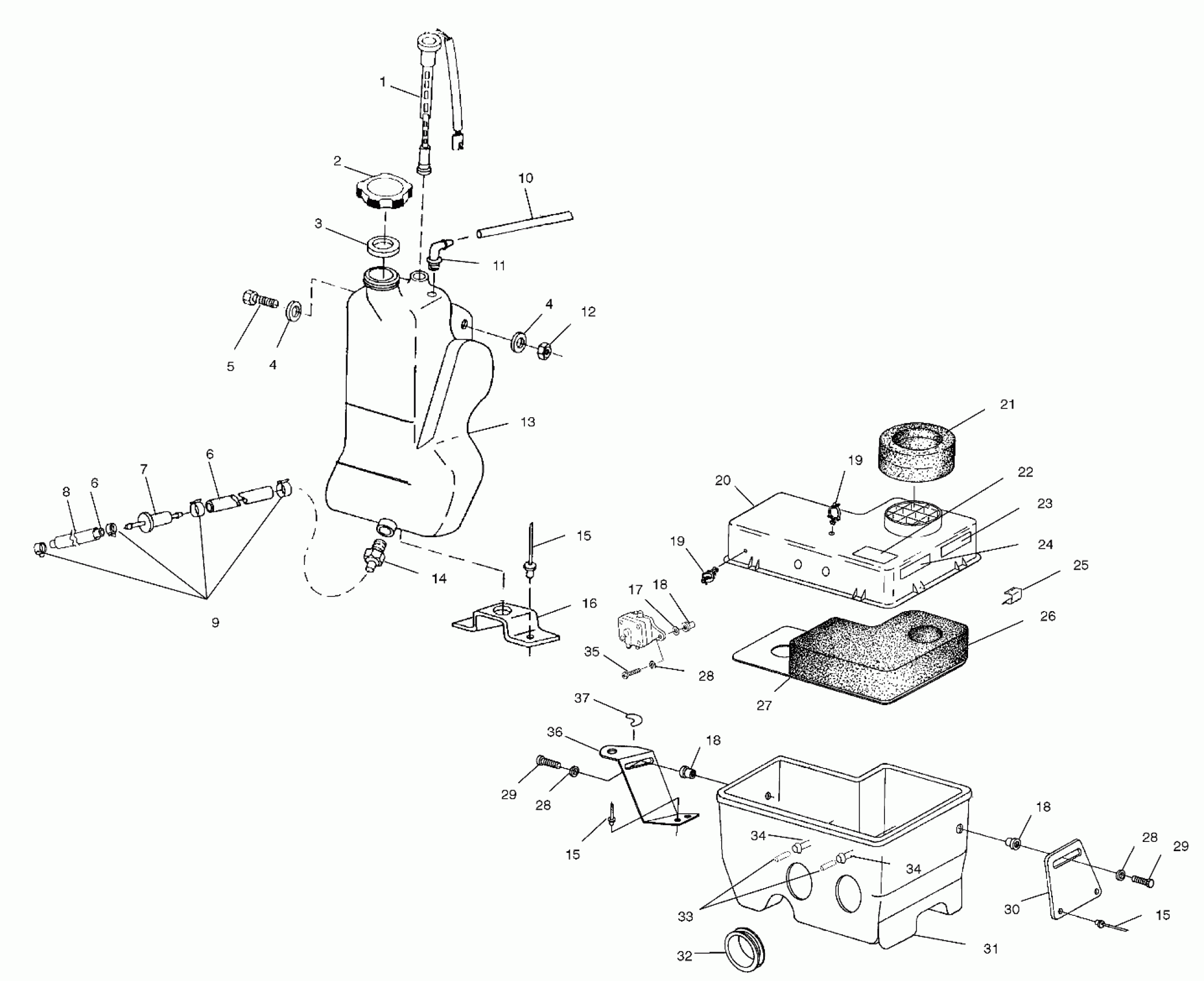

Polaris TRAIL - 099EB4ESA OIL TANK / AIR BOX - 099EB4ESA (4948344834c003) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512240
$3.99
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CONDUIT,CONVOLUTED Substituted by 4010051-30
4010051
Unavailable
9
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
10
FUELLINE,3MMX7MM
8450061-600
Unavailable
11
FITTING,90 DEG,1/8,(10)
7052095
$4.79
12
NUT-LOCK(10)
7542122
$1.49
13
Tank, Oil
5431437
Unavailable
14
FITTING, OUTLET
7052042
$8.99
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
BRKT,OILTANK,COINED
5241334
$9.70
17
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
18
NUT-WELL(10)
7541923
$5.59
19
CLIP, PLASTIC(10)
4020139
$4.79
19
CLIP, PLASTIC(10)
4020139
$4.79
20
COVER,AIR SILENCER
5432748
Unavailable
21
DUCT ASM,AIR
2620057
$40.46
22
DECAL,CAUTION,AIRBOX
7075351
Unavailable
23
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
24
DECAL, GREASING [No Longer Available]
7073426
$7.27
25
CLIP, AIR BOX,(10)
7670055
$7.99
26
BAFFLE ASM.
1253116
$59.99
27
PLATE,AIR SILENCER
5850075
$24.27
28
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
28
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
28
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
29
SCREW(10)
7512279
$1.49
29
SCREW(10)
7512279
$1.49
30
BRACKET, SILENCER
5211274
$9.70
31
SILENCER,INTAKE,DRILLED
5432133
Unavailable
32
BOOT
5410403
$12.99
33
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
34
FITTING,(10)
7052077
$6.39
34
FITTING,(10)
7052077
$6.39
35
SCREW(10)
7512222
$2.39
36
BRKT,AIR SILENCER,W/TAB,BLK.
5240824-067
Unavailable
37
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
