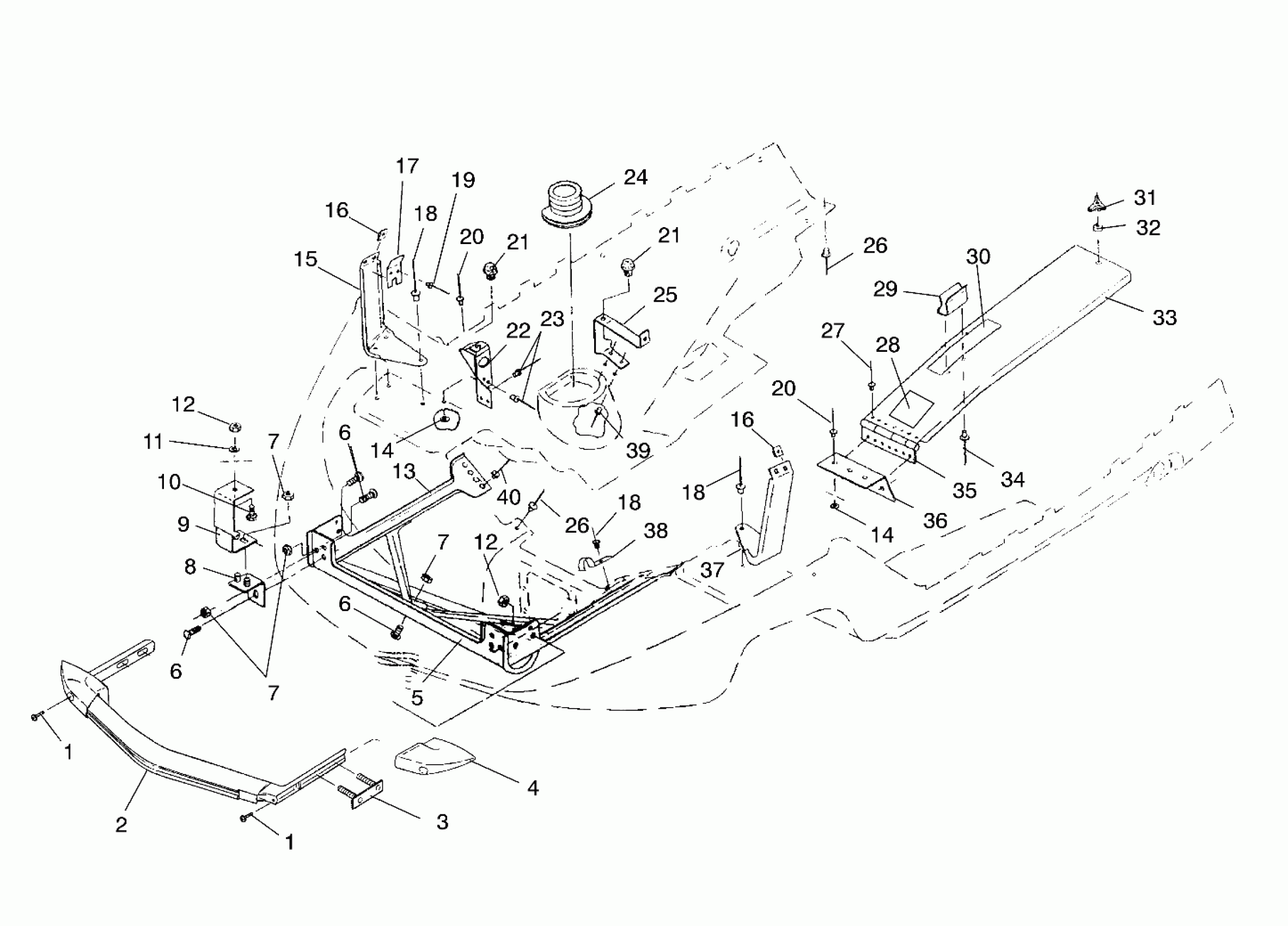

Polaris TRAIL - 099EB4ESA NOSEPAN - 099EB4ESA (4948344834a011) Diagram

#

Description
Price

1

SCREW,(10)

7512024

$4.79

1

SCREW,(10)

7512024

$4.79

2

BUMPER ASM,FR,EV,BLK MET Substituted by 2670184-067

2670184-177

Unavailable

3

STUDPLATE ASM,BUMP.SUPP.

1012648

Unavailable

4

CAP,BUMPER,BLK.MET.

5432429-177

Unavailable

5

BRACE,HD.SUPPORT,BLK.

5241003-067

$49.21

6

BOLT,(10)

7515203

$3.99

6

BOLT,(10)

7515203

$3.99

6

BOLT,(10)

7515203

$3.99

7

NUT(10)

7542153

$1.59

7

NUT(10)

7542153

$1.59

7

NUT(10)

7542153

$1.59

8

MOUNT,HINGE,BLK.

1011982-067

$45.99

9

HINGE ASM,HOOD,BLK.

2635013-067

Unavailable

10

SCREW(10)

7512310

$2.39

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

NUT FLEX-LOC(10)

7542303

$6.39

12

NUT FLEX-LOC(10)

7542303

$6.39

13

SUPPORT,LH,BUMPER

1012327-067

$63.49

13

SUPPORT,RH,BUMPER

1012328-067

$133.29

14

BURR,RIVET(50)

7555904

$1.49

14

BURR,RIVET(50)

7555904

$1.49

15

TAPE,FOIL,215 CM.(85 IN.)

8360043-215

Unavailable

15

BRKT,RH,SIDEPANEL

5240995

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

16

NUT, RETAINER(10)

7542146

Unavailable

17

SHIELD,FASTENER

5240769

$0.90

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

18

RIVET(50)

7621485

$1.49

19

RIVET(50)

7621318

$1.49

20

RIVET(50)

7621433

$1.49

20

RIVET(50)

7621433

$1.49

21

DAMPNER, VIB.

5410467

$8.79

21

DAMPNER, VIB.

5410467

$8.79

22

SUPPORT,MUFFLER,BLK.

1260724-067

$92.99

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Boot, Exhaust

5410502

$24.27

25

BRKT,R.MUFFLER SUPPORT

5240715-067

Unavailable

26

RIVET, BLIND(50)

7621467

$1.49

26

RIVET, BLIND(50)

7621467

$1.49

27

RIVET, POP(50)

7621330

$1.49

28

DECAL-TROUBLE SHOOTING,XTRA-10

7077758

Unavailable

29

CLIP,BELT RETAINER

5222769

$8.79

30

DECAL,ENG&CLUTCH(CPSC)

7075350

Unavailable

31

KNOB,CLUTCH GUARD(10)

7080523

$4.03

32

BUMPER,CLUTCHGUARD

5431928

$2.39

33

GUARD,CLUTCH

5240999

Unavailable

34

RIVET(50)

7621429

$1.49

35

HINGE

5210728

Unavailable

36

MT,FR.CLUTCHGUARD

5222904

Unavailable

37

BRKT,LH,SIDEPANEL

5240994-067

Unavailable

38

CLIP, HALF(10)

7080393

$3.19

39

RIVET(50)

7621472

$1.49

40

RIVET,INTERLOCK,B(50)

7661638

$1.49
