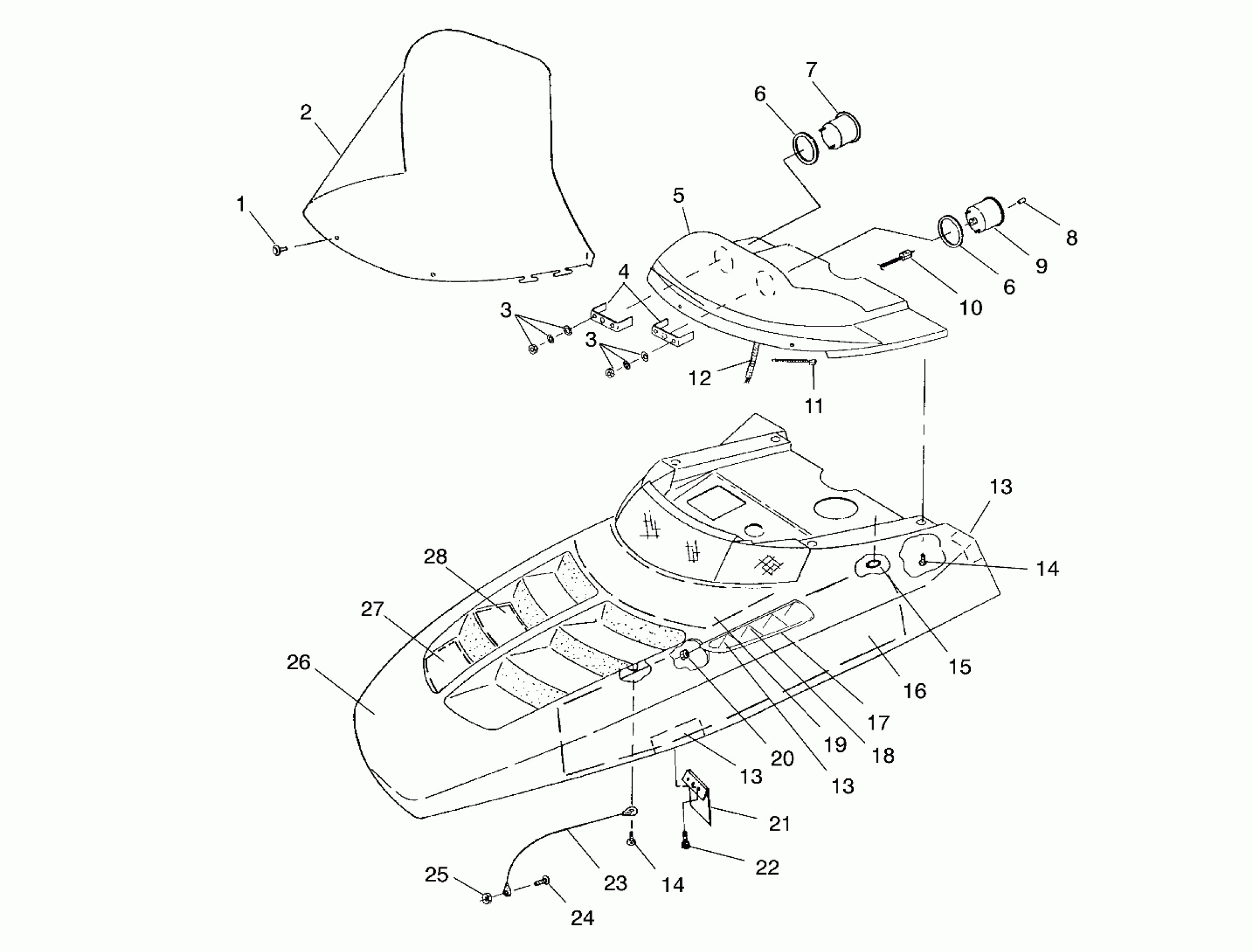

Polaris TRAIL - 099EB4ESA HOOD - 099EB4ESA (4948344834a012) Diagram

#

Description
Price

1

RIVET,PLASTI-LOC.(50)

7621509

$1.49

2

WNDSHLD,STD,SMOKE,EV.

5431930

Unavailable

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

3

WASHER,FLAT,(10)

3280157

$2.39

3

Nut

3280158

Unavailable

3

WASHER,SPLIT LOCK

3280156

$1.49

4

BRKT,TACH/SPEEDO,5"

3280210

$28.32

5

HOUSING ASM,INSTR. (Incl. Warning Decals)

2652146

Unavailable

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

6

CUSHION,TACH/SPEEDO,RUBBER

3280209

$3.99

7

BULB TAILLIGHT(10)

4030015

$4.03

7

TACH ASM,5",2 PULSE (Incl. 3,4,6)

3280293

Unavailable

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

BULB TAILLIGHT(10)

4030015

$4.03

9

SPEEDO,BACKLIT

3280204

Unavailable

10

CABLE,SPEEDO.

3280094

$60.70

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

HARNESS, H/L

2460527

Unavailable

13

FOIL,TAPE,1.5X6

5810949

$3.19

13

FOIL,TAPE,1.5X6

5810949

$3.19

13

FOIL,TAPE,1.5X6

5810949

$3.19

14

SCREW(10)

7512070

Unavailable

14

SCREW(10)

7512070

Unavailable

15

RETAINER,WINDSHIELD,(10)

5410970

$1.49

16

FOAM,HOOD,RH.

5811047

Unavailable

16

FOIL,HOOD,RH.

5811048

Unavailable

16

FOAM,HOOD,LH.

5811046

Unavailable

17

VENT-HOOD,LH,RGL BLU (SVC) (099EB4ES)

5431763-246

Unavailable

17

VENT-HOOD,LH,MYST GR (SVC) (099EB4ESA)

5431763-269

Unavailable

17

VENT-HOOD,RH,RGL BLU (SVC) (099EB4ES)

5431764-246

Unavailable

17

VENT-HOOD,RH,MYST GR (SVC) (099EB4ESA)

5431764-269

Unavailable

18

FOIL,LOUVER

5811090

Unavailable

19

FOAM,HOOD,CTR.

5810875

Unavailable

20

NUT, PUSH-ON(10)

7670068

$2.39

21

BAFFLE,FRONT

5240552

Unavailable

22

SCREW(10)

7511861

Unavailable

23

CABLE,HOOD RETAINER

7080521

$24.27

24

SCREW(10)

7511930

$2.39

25

NUT FLEX LOC(10)

7541906

$3.19

26

HOOD,FOAM/FOIL,F/C,RGL BLU. (See Footnote) (Incl. 13,16-19,27,28) (Model #099EB4ES)

2631630-246

Unavailable

26

HOOD,FOAM/FOIL,F/C,MYST GR. (See Footnote) (Incl. 13,16-19,27,28) (Model #099EB4ESA)

2631630-269

Unavailable

27

FOIL,HOOD,FRONT

5810874

Unavailable

28

FOIL,HOOD,CTR.

5810873

Unavailable
