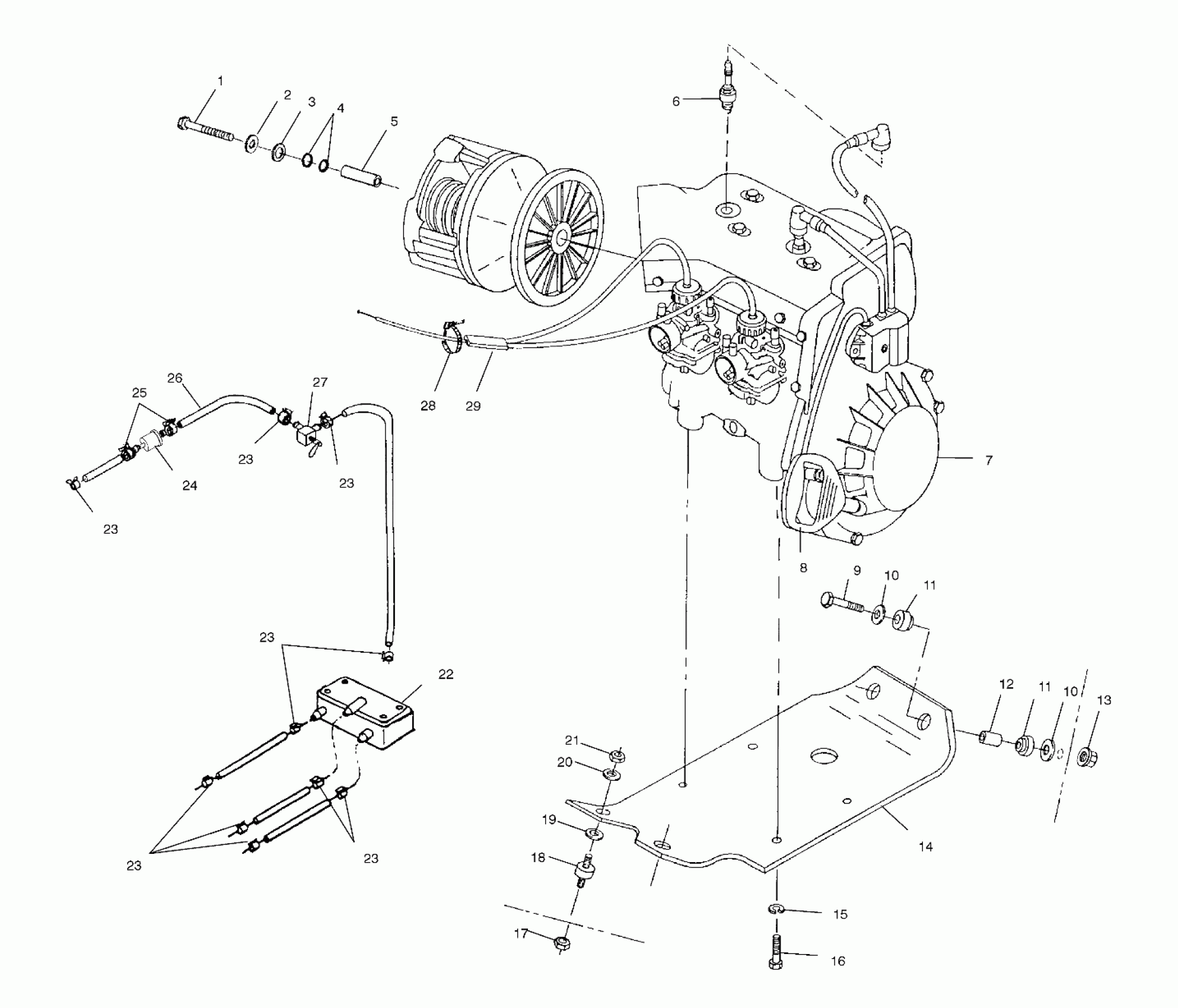

Polaris TRAIL - 099EB4ESA ENGINE MOUNTING - 099EB4ESA (4948344834c001) Diagram

#

Description
Price

1

BOLT(10)

7512565

$19.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAINER

5010278

Unavailable

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARKPLUG (10)

3070156

$3.99

7

ENG.(S.B.)EC50PM-01/02 [No Longer Available] (See Footnote) NOTE: The Short Block asm. contains a crankcase asm., cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior autho

3084625

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SCREW(10)

7512530

$5.59

10

WASHER(10)

7555740

$1.59

10

WASHER(10)

7555740

$1.59

11

MOUNT, ENGINE

5410390

Unavailable

11

MOUNT, ENGINE

5410390

Unavailable

12

TUBE,SPACER

5333354

Unavailable

13

NUT,FLANGE(10)

7542522

$5.59

14

PLATE,MTR.MT,LWT

5131772

$108.99

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT(10)

7512539

$3.99

17

NUT,FLEXLOCK,(10)

7547008

$6.39

18

MOUNT,ENG.

3110061

$84.99

19

WASHER,FLAT(10)

7555915

$3.19

20

WASHER(10)

7555893

$1.49

21

NUT FLEX LOC,(10)

7542402

$6.39

22

Asm., Fuel Pump, Non-Asbestos (See Fuel Pump Pg. C9, Ref. 2)

-------

Unavailable

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

23

HOSE CLAMP, RED

7080003

$1.49

24

FILTER-FUEL,WHITE

2520156

Unavailable

25

CLAMP,SPRING,(10)

7080534

$1.59

26

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

27

VALVE,FUEL SHUT-OFF

7052060

Unavailable

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

CABLE,THROTTLE,W/OIL

7080552

Unavailable
