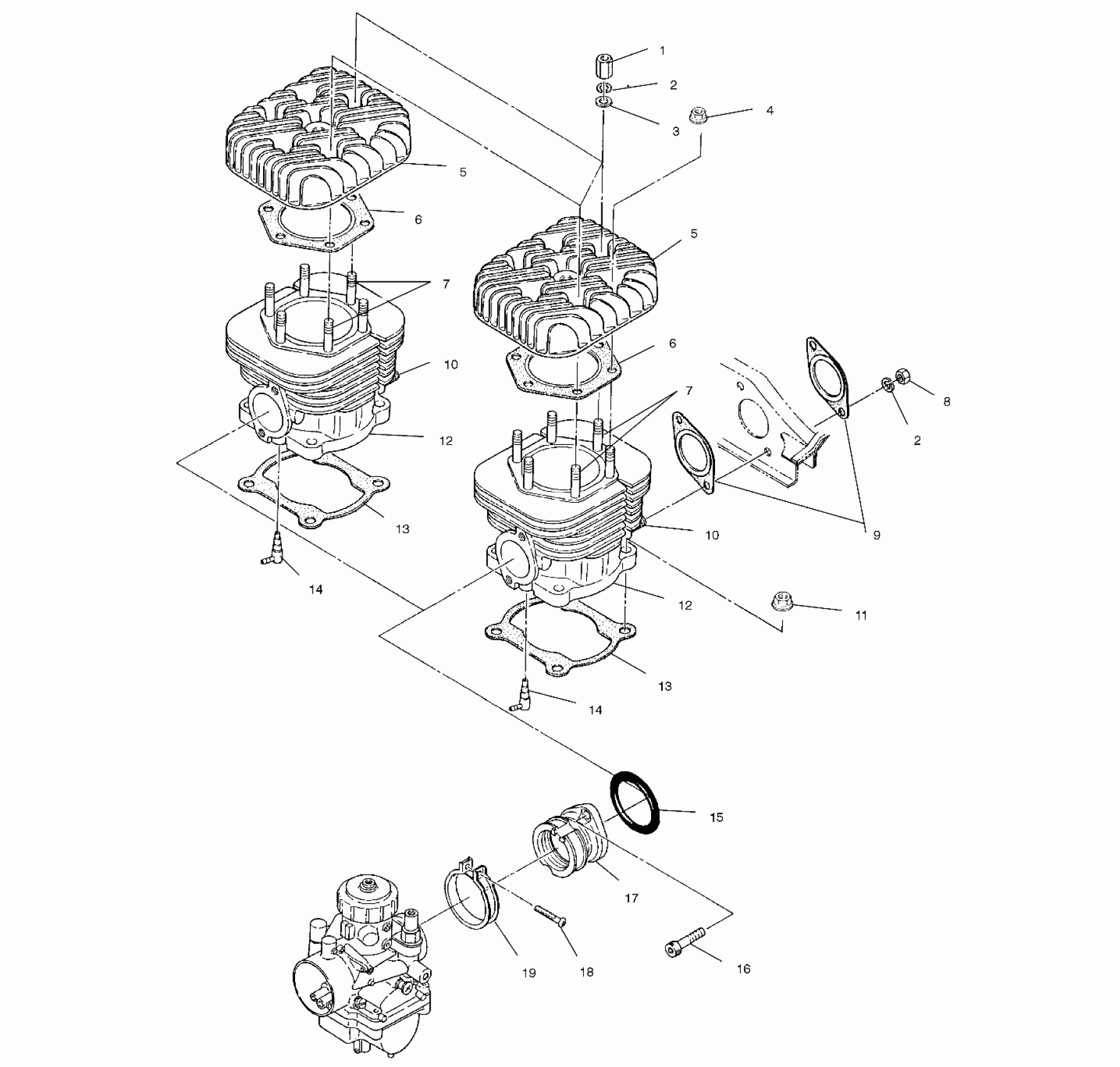

Polaris TRAIL - 099EB4ESA CYLINDER - 099EB4ESA (4948344834c005) Diagram

#

Description
Price

1

NUT

3083541

Unavailable

2

WASHER LOCK ,(10)

3080530

$3.19

2

WASHER LOCK ,(10)

3080530

$3.19

3

WASHER(10)

3080142

$3.99

4

NUT-FLANGE(10)

3082910

$2.39

5

HEAD, CYLINDER

3083707

Unavailable

5

HEAD, CYLINDER

3083707

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

6

GASKET,HEAD,(CP)

3084015

Unavailable

7

Stud

3080283

$12.94

7

Stud

3080283

$12.94

8

NUT(10)

3080285

Unavailable

9

GASKET, EXHAUST

3084026

Unavailable

10

STUD,(10)

3085326

Unavailable

10

STUD,(10)

3085326

Unavailable

11

NUT-FLANGE(10)

3082911

$1.99

12

CYLINDER (Incl. 7,10)

3083695

Unavailable

12

CYLINDER (Incl. 7,10)

3083695

Unavailable

13

GASKET, BASE

3084025

Unavailable

13

GASKET, BASE

3084025

Unavailable

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

14

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

15

O-RING

3085619

$20.22

16

Bolt, Allen

3081330

$3.99

17

ADAPTER,CARB. (Incl. 15)

3085044

Unavailable

18

SCREW,(10)

3081497

$2.39

19

BAND ASM. (Incl. 18)

3083166

$19.84
