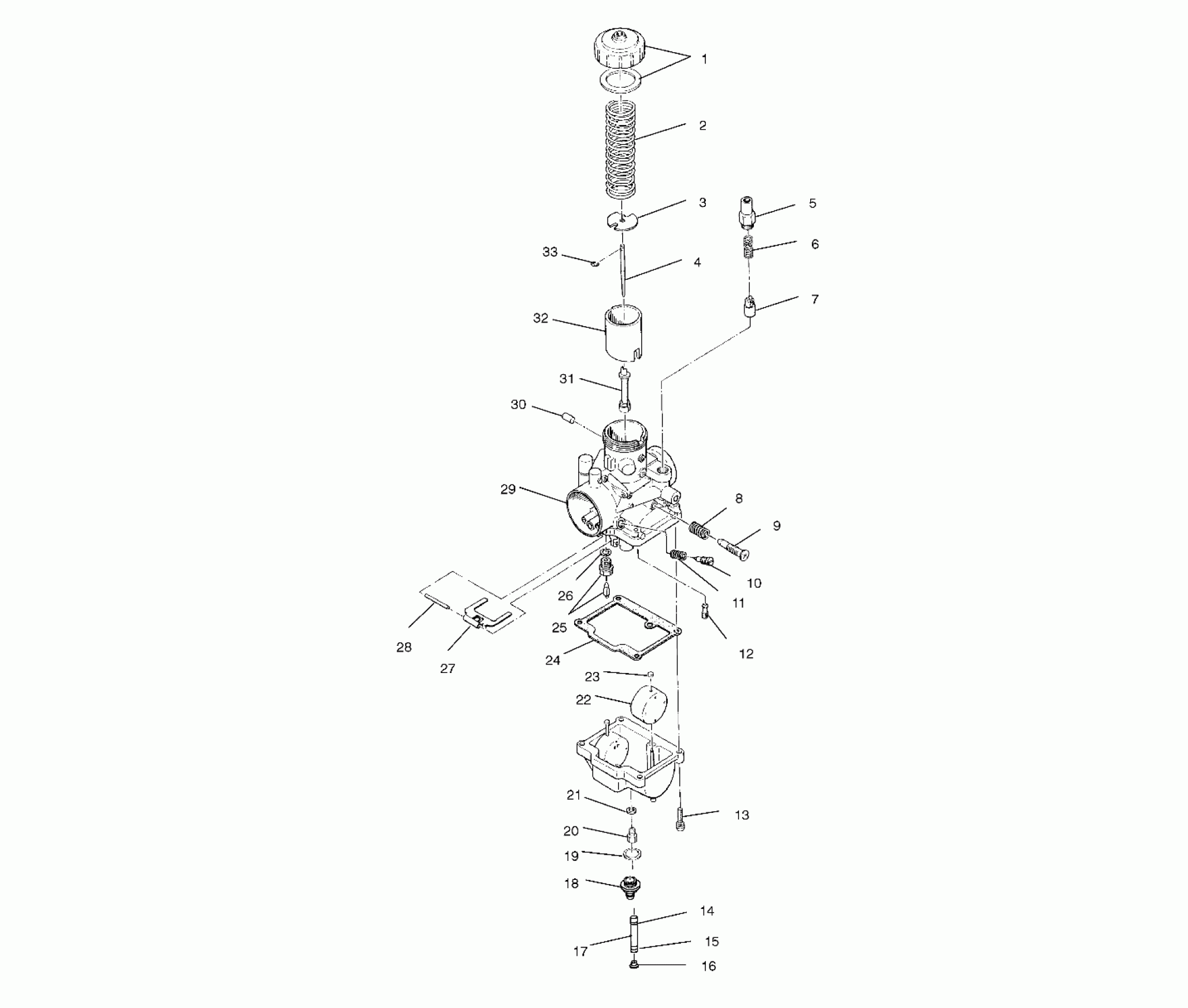

Polaris TRAIL - 099EB4ESA CARBURETOR - 099EB4ESA (4948344834c008) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

JET NEEDLE (6DH7-3)

3130329

Unavailable

5

HOLDER,GUIDE

3130199

$28.32

6

SPRING,PLUNGER

3130006

$8.89

7

PLUNGER ASM, STARTER

3130328

$32.37

8

SPRING,THROTTLE ADJ.

3130010

$8.89

9

SCREW,THROTTLE STOP

3130009

$19.99

10

SCREW,AIR

3130011

$19.99

11

SPRING,AIR ADJUST

3130012

$8.89

12

JET,PILOT,#40(10) (#40)

3130067

$10.99

13

SCREW & WASHER(10)

3130025

$3.19

14

CLAMP,SPRING,(10)

7080534

$1.59

15

CLAMP,HOSE(10)

7080544

Unavailable

16

PLUG,TRAP

5431893

$12.94

17

FUEL LINE, 5 FT.

8450045-153

Unavailable

18

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

19

O RING

3130239

Unavailable

20

JET,MAIN,HX.HD#230(10) (#230)

3130126

$7.27

21

WASHER (10)

3130014

$1.59

22

FLOAT ASM.

3130430

$43.56

23

CAP,(10)

3130237

$4.03

24

PACKING,FLOAT CHAMBER

3130020

$16.17

25

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

26

PACKING(10)

3130017

$4.03

27

ARM,FLOAT

3130018

$24.27

28

PIN, FLOAT

3130361

$8.89

29

CARBURETOR (Incl. 1-13,18-33)

3130689

Unavailable

30

CAP

3130479

$14.56

31

NEEDLE JET (P-8)

3130421

Unavailable

32

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

33

E-RING,(10)

3130508

$6.46
