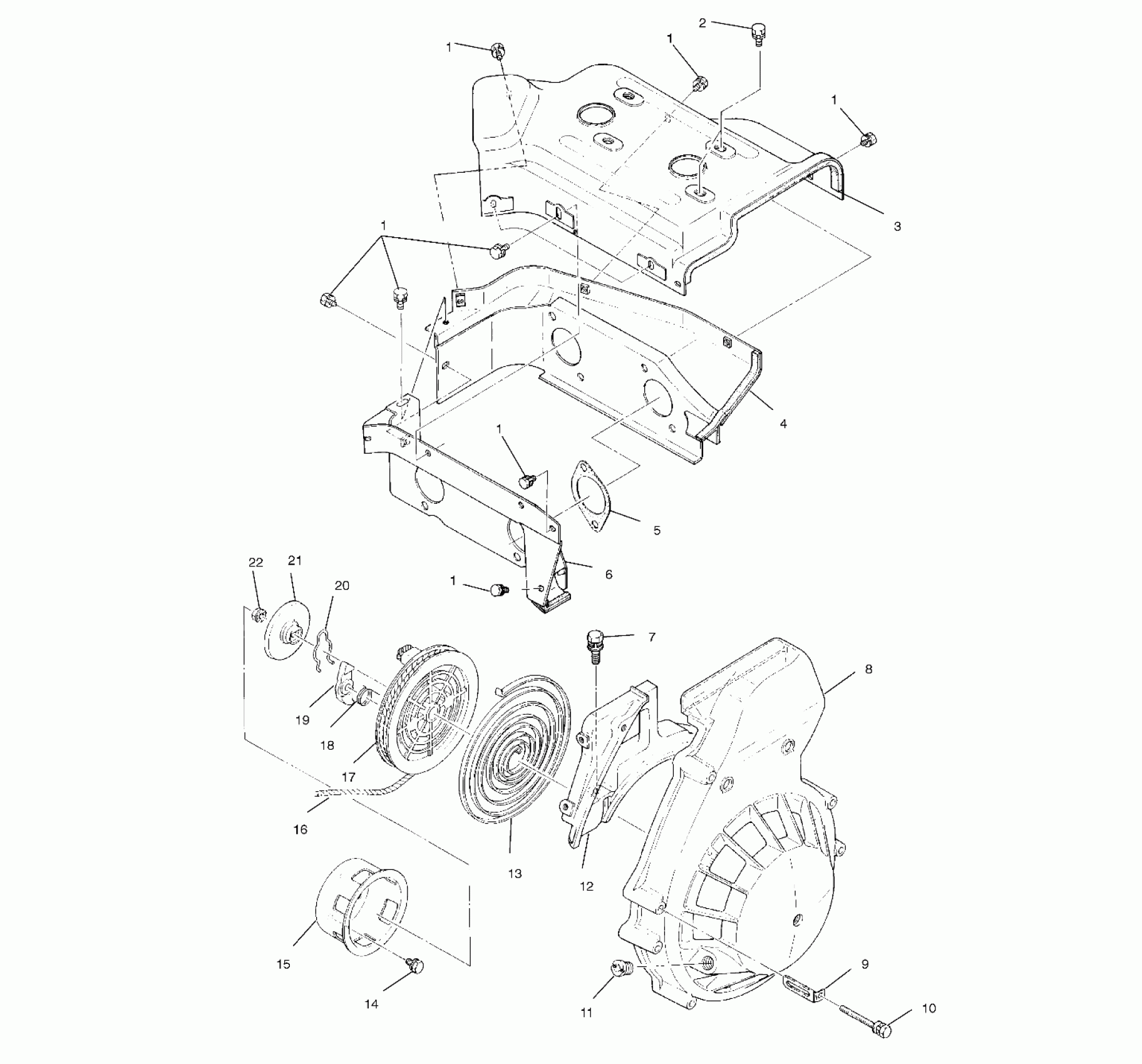

Polaris TRAIL - 099EB4ESA BLOWER HOUSING & RECOIL STARTER - 099EB4ESA (4948344834c007) Diagram

#

Description
Price

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

1

BOLT,(10)

3081645

Unavailable

2

BOLT,FLANGE

3085548

Unavailable

3

BAFFLE,CYL,TOP

3085010

Unavailable

4

BAFFLE,CYL.#2

3085008

Unavailable

5

GASKET, INTAKE

3084027

Unavailable

6

BAFFLE,CYL.#3 (Incl. 5)

3085009

Unavailable

7

BOLT&WASHER ASM.

3084225

$3.99

8

RECOIL STARTER (Incl. 8,11,13,16-22)

3083547

Unavailable

8

CASE, STARTER

3083548

Unavailable

9

Clamp

3083590

$3.99

10

BOLT&WASHER ASM.

3083550

Unavailable

11

GUIDE-ROPE

3083107

Unavailable

12

HOUSING,BLOWER,#2

3083697

Unavailable

13

Spring, Spiral

3083376

$179.11

14

BOLT,(10)

3081665

$3.19

15

PULLEY, STARTER

3083549

Unavailable

16

ROPE,100 FT,NYL.STARTER

2870621

Unavailable

17

REEL, REWIND

3083377

$56.65

18

Spring, Return

3083463

$4.03

19

Ratchet

3083378

$20.22

20

Spring, Friction

3083379

$24.27

21

Plate, Friction

3083464

$28.32

22

NUT, FLANGE ,(10)

3083381

$2.99
