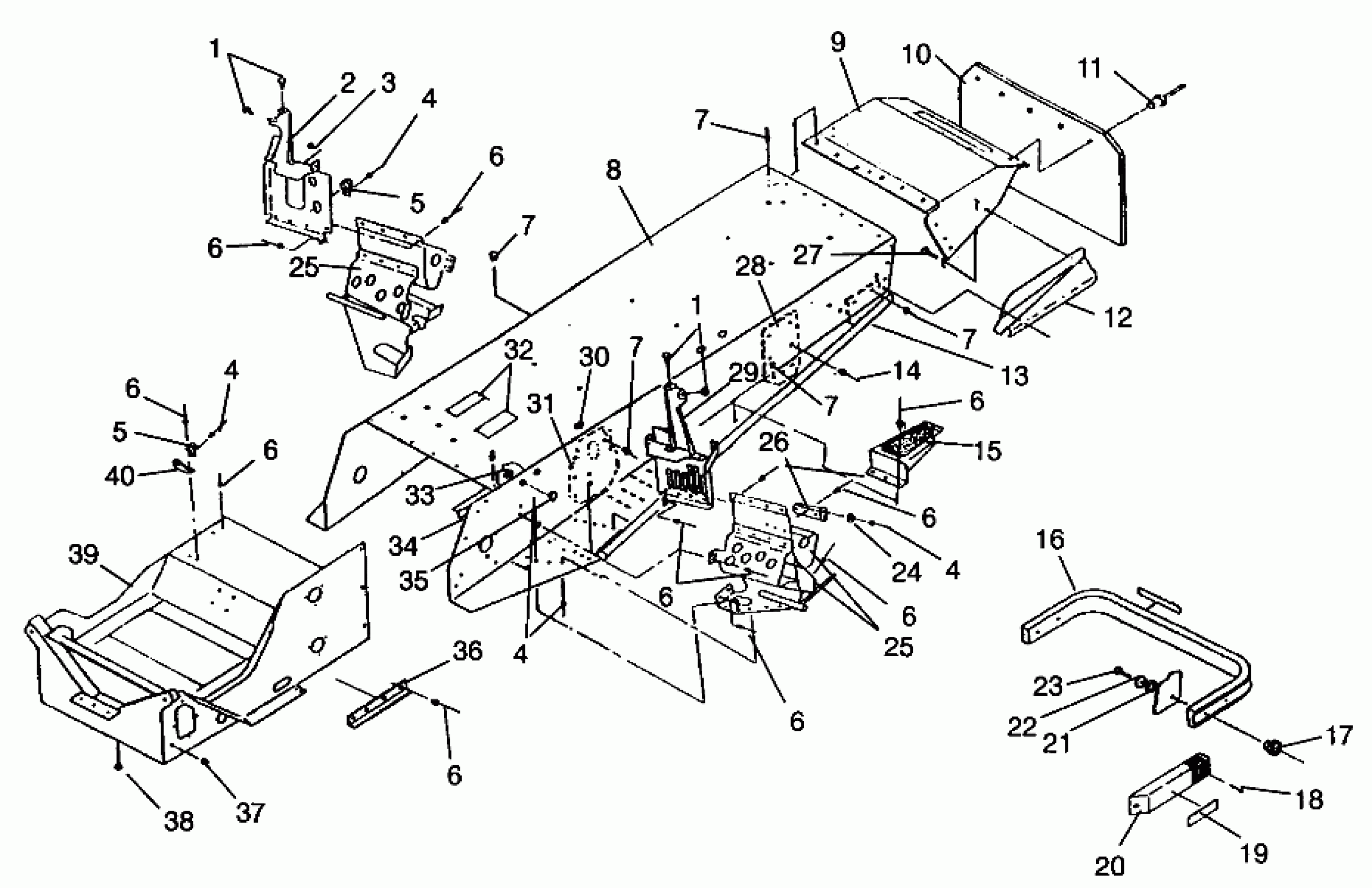

Polaris TRAIL - 0962761 TUNNEL TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E96 (4931763176A005) Diagram

#

Description
Price

1

BUMPER,HOOD

5410768

$2.95

1

BUMPER,HOOD

5410768

$2.95

2

MT,CONSOLE,RH

1011952-067

$339.99

3

SCREW(10)

7512057

$2.38

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

4

RIVET,3/16X.402(50)

7621432

$1.49

5

GUIDE, RECOIL

5431385

$10.51

5

GUIDE, RECOIL

5431385

$10.51

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

6

RIVET-3/16-.090-.290

7661637

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

7

RIVET,SEMI-TUBE,(50)

7661841

$1.49

8

TUNNEL ASM,F/C (Trail)

1012330

Unavailable

8

TUNNEL,(TOURING) Substituted by 1012399 (Tour)

1012399-067

Unavailable

9

PANEL,TUNNELBACK (Trail)

5241053

Unavailable

9

PANEL ASM,TUNNELBACK,(TRG.) (Tour)

5241063

Unavailable

10

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

11

POP RIVET(50)

7621418

$1.49

12

SKIRT,SNOW,LH,TEAL MET. [No Longer Available] (Tour)

5432049-169

$23.81

12

SKIRT,SNOW,RH,TEAL MET. (Tour)

5432050-169

Unavailable

13

WEARPLATE,TUNNEL

5222061

Unavailable

14

RIVET,SEMI-TUBE,(50)

7661840

Unavailable

15

FOOTREST,LH REAR

5220893

Unavailable

15

FOOTREST,RH REAR

5220894

$32.15

15

PAD,LH FOOT SAFETY

5830007

$7.89

15

PAD,RH FOOT SAFETY

5830008

$4.92

16

BUMPER ASM,REAR,(TOUR) (Tour, Euro)

2670171

Unavailable

16

BUMPER,REAR,STD. (Trail)

5224674-067

Unavailable

17

NUT-LOCK(10) (Euro), Nylok

7542122

$1.49

18

SCREW(10)

7511863

$1.99

19

REFLECTOR RED

2670070

$9.91

20

CAP, BUMPER, BLK.

5430930-070

Unavailable

21

WASHER(10) (Tour)

7558301

$1.49

21

WASHER(10) (Trail)

7558301

$1.49

22

LOCK WASHER(10) (Tour)

7552801

$1.59

22

LOCK WASHER(10) (Trail)

7552801

$1.59

23

BOLT(10) (Tour)

7512240

$3.99

23

BOLT(10) (Trail)

7512240

$3.99

24

STOP, BUMPER

5410826

Unavailable

25

FOOTREST ASM,LH

1011954

Unavailable

25

FOOTREST ASM,RH

1011955

$126.41

25

FOOTREST ASM,LH

1011954

Unavailable

25

FOOTREST ASM,RH

1011955

$126.41

26

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

27

SCREW(10)

7512026

$1.49

28

PAD,LH,R.SUSP.

5241268-067

Unavailable

28

PAD,RH,R.SUSP.

5241269-067

Unavailable

29

MT,CONSOLE,LH

1011951-067

$35.51

30

NUT,SERT(10)

7541938

Unavailable

31

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

31

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

32

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

33

SNAP-MALE(10)

7080227

Unavailable

34

BRACE,REINF.TUNNEL

5240242

Unavailable

35

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

36

GUARD,ADAPTER GUIDE

5222857

$12.94

37

PLUG, HOLE(10)

7080416

$5.65

38

PLUG-HOLE (Tour)

7080398

$4.84

38

PLUG-HOLE (Trail)

7080398

$4.84

39

BULKHEAD,(488) (Trail)

1012324-067

Unavailable

39

BULKHEAD (Tour)

1012427-067

$573.29

40

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99
