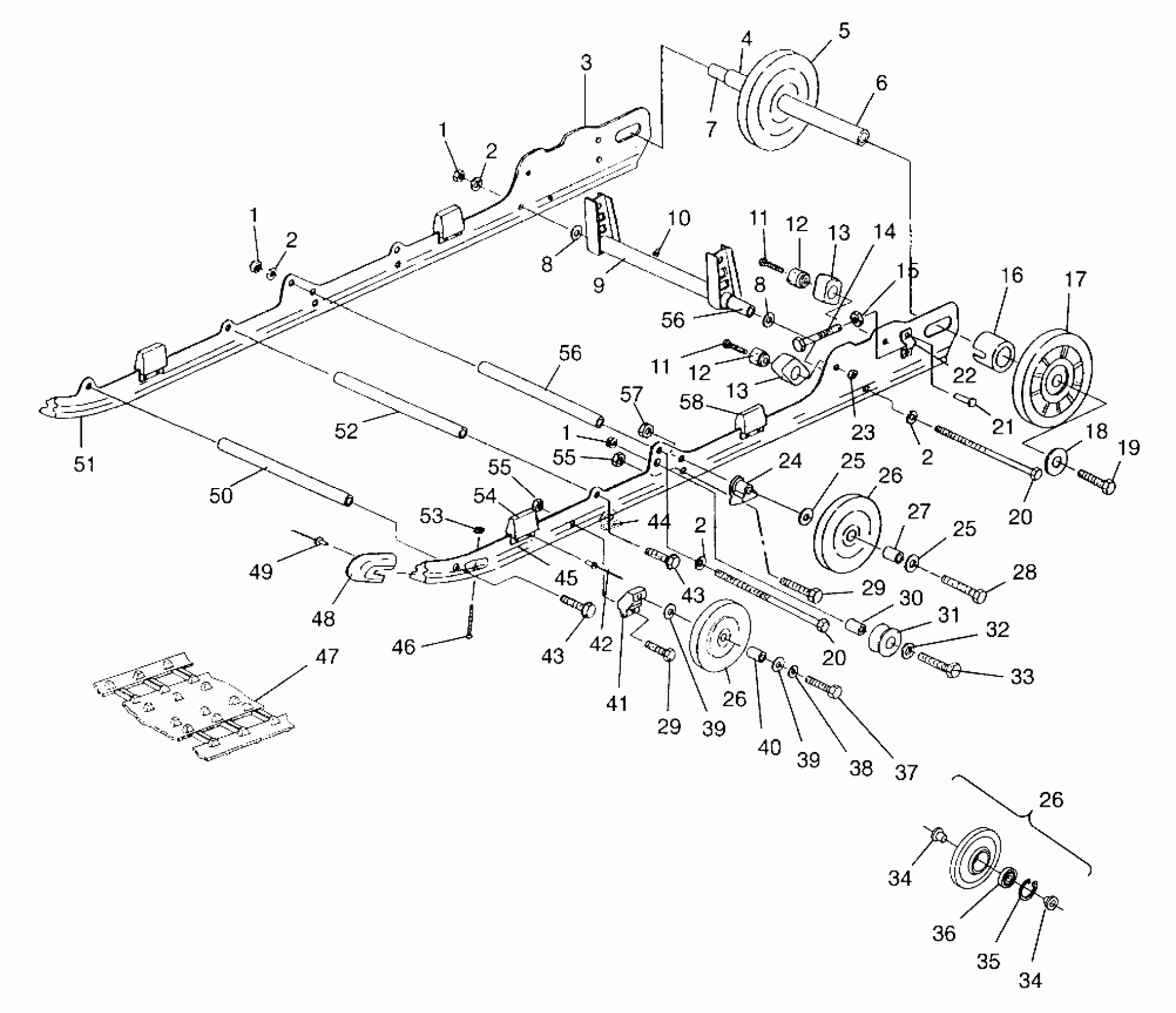

Polaris TRAIL - 0962761 SUSPENSION TRAIL 0962761 (4931763176C001) Diagram
#
1
NUT LOCK(10)
7542411
$3.19
1
NUT LOCK(10)
7542411
$3.19
1
NUT LOCK(10)
7542411
$3.19
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
2
WASHER(10) Substituted by 7555806
7555720
$0.79
3
RAIL ASM,LH,(XTRA-10) Substituted by 1541146
1541016
$288.99
3
RAIL ASM,RH,(XTRA-10) Substituted by 1541147
1541017
Unavailable
4
SPACER INNER IDLER
5010169
Unavailable
5
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
6
SPACER,IDLER,R.INNER
5333086
Unavailable
7
SHAFT,IDLER
5020722
Unavailable
8
WASHER(10)
7555893
$1.49
8
WASHER(10)
7555893
$1.49
9
ARM,R.PIVOT
1540982-067
$38.05
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
BOLT(10)
7515537
$10.99
11
BOLT(10)
7515537
$10.99
12
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
12
MOUNT,F.BUMPER PIVOT ARM
5131113
$28.32
13
BUMPER,F.PIVOT ARM
5410925
$12.94
13
BUMPER,F.PIVOT ARM
5410925
$12.94
14
BOLT, ADJUSTER(10)
7515455
$29.99
15
NUT(10)
7542440
Unavailable
16
SPACER-IDLER-OUTER
5332641
Unavailable
17
WHEEL,IDLER,TEAL (Teal P176)
1594050
Unavailable
18
WASHER(10) Substituted by 7556130
7571629
Unavailable
19
BOLT(10)
7515526
$1.19
20
SCREW Substituted by 7517353
7515549
Unavailable
20
SCREW Substituted by 7517353
7515549
Unavailable
21
RIVET,(50)
7621501
$2.39
22
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
23
NUT LOCK(10)
7542403
$3.99
24
SPACER
5630399
$11.99
25
WASHER, FLAT(10)
7555852
$2.39
25
WASHER, FLAT(10)
7555852
$2.39
26
WHEEL, IDLER
1543018
$56.65
26
WHEEL, IDLER
1543018
$56.65
26
WHEEL, IDLER
1543018
$56.65
27
SPACER, WHEEL
5333116
$7.99
28
BOLT(10)
7512538
$6.39
29
BOLT(10)
7512404
$3.99
29
BOLT(10)
7512404
$3.99
30
Spacer
5332787
Unavailable
31
ROLLER,SPRING
5432170
Unavailable
32
WASHER(10)
7555743
Unavailable
33
BOLT Substituted by 7515491
7515433
$1.59
34
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
34
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
36
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
37
BOLT(10)
7512659
$7.99
38
LOCK WASHER(10)
7553201
$3.99
39
WASHER(10)
7555804
$3.99
39
WASHER(10)
7555804
$3.99
40
SPACER
5332786
$7.99
41
BRACKET,BOGIE WHEEL
5130570
$48.56
42
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
43
BOLT
7515542
Unavailable
43
BOLT
7515542
Unavailable
44
BRKT-SHAFT SUPPORT
5241443
Unavailable
45
REINF., BUMPER
5222629
$13.75
46
BOLT(10)
7515175
$3.99
47
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
47
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
47
TRACK,121",CAMO. Substituted by 5411057
5411005
Unavailable
48
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
49
RIVET(50)
7621435
$1.49
50
SHAFT,PIVOT ARM
5020723
$29.99
51
SLIDER,BLACK(2)
5521320
Unavailable
52
SHAFT,PIVOT ARM
5020724
$29.99
53
NUT-LOCK(10)
7542122
$1.49
54
BUMPER,SUSPENSION
5811097
Unavailable
55
NUT-LOCK(10)
7542439
$1.49
55
NUT-LOCK(10)
7542439
$1.49
56
SHAFT
5333404
$24.27
56
SHAFT
5333404
$24.27
57
NUT, NYLOCK(10)
7542525
$4.79
58
BUMPER, RAIL
5810554
$7.27
