STEERING TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E962262 (4931763176B006)

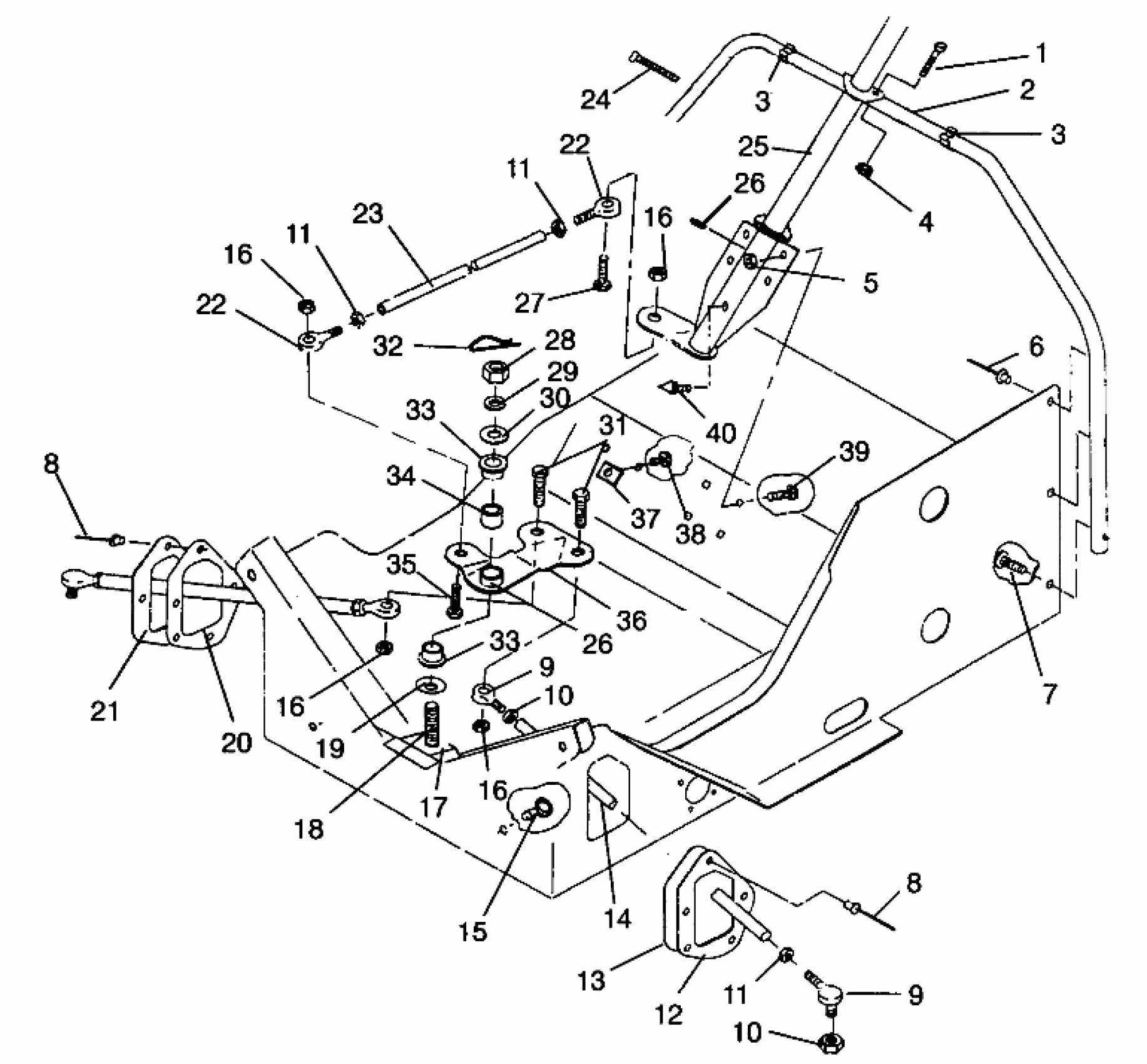

Polaris TRAIL - 0962761 STEERING TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E962262 (4931763176B006) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STEERING,BLK.
1012326-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
RIVET-3/16-.090-.290
7661637
$1.49
7
BOLT-CARRIAGE(10)
7512275
$3.99
8
POP RIVET(50)
7621323
$1.49
8
POP RIVET(50)
7621323
$1.49
9
ROD END,LH,3/8"HI-ANGLE Substituted by 7061005
7060160
Unavailable
9
ROD END,RH,3/8"HI-ANGLE Substituted by 7060174
7060161
$48.56
9
ROD END,LH,3/8"HI-ANGLE Substituted by 7061005
7060160
Unavailable
9
ROD END,RH,3/8"HI-ANGLE Substituted by 7060174
7060161
$48.56
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
12
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
13
BOOT,LH,TIE-ROD
5410867
Unavailable
14
ROD,TIE,BLK.
5020715-067
Unavailable
15
CLIP, PLASTIC(10)
4020139
$4.79
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
16
NUT LOCK(10)
7542403
$3.99
17
BLOCK, STEERING
5630375
Unavailable
18
BOLT(10)
7512682
Unavailable
19
WASHER,WAVE(10)
7555735
$3.99
20
BOOT,RH,TIE-ROD
5410868
$12.70
21
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
22
ROD END,LH
7060166
$48.56
22
ROD END,RH
7060167
$48.56
22
ROD END,LH
7060166
$48.56
22
ROD END,RH
7060167
$48.56
23
ROD, DRAG, LINK
5333144
Unavailable
24
STRAP, BLK
7080272
Unavailable
25
POST,STRG,BLK.
1823157-067
Unavailable
26
FITTING,LUB/VEN(10)
7080561
$4.79
26
FITTING,LUB/VEN(10)
7080561
$4.79
27
BOLT(10) Substituted by 7515492
7512410
Unavailable
28
NUT FLEX,(10)
7542703
Unavailable
29
LOCK WASHER(10)
7553201
$3.99
30
WASHER(10)
7555721
$1.49
31
BOLT(10)
7515528
$8.79
32
PIN COTTER(10)
7661203
$1.49
33
BUSHING
3563907
$3.99
33
BUSHING
3563907
$3.99
34
BUSHING
5010322
Unavailable
35
BOLT(10)
7512404
$3.99
36
STRG.ASM,CTR. (Incl. 19, 33)
1822219
Unavailable
37
SPEED NUT(10)
7670021
$6.99
38
BOLT-CARRIAGE(10)
7512263
$3.99
39
BOLT(10) Substituted by 7512377
7512394
Unavailable
40
ZERK,FITTING,THREADED(10)
7080433
$1.49
