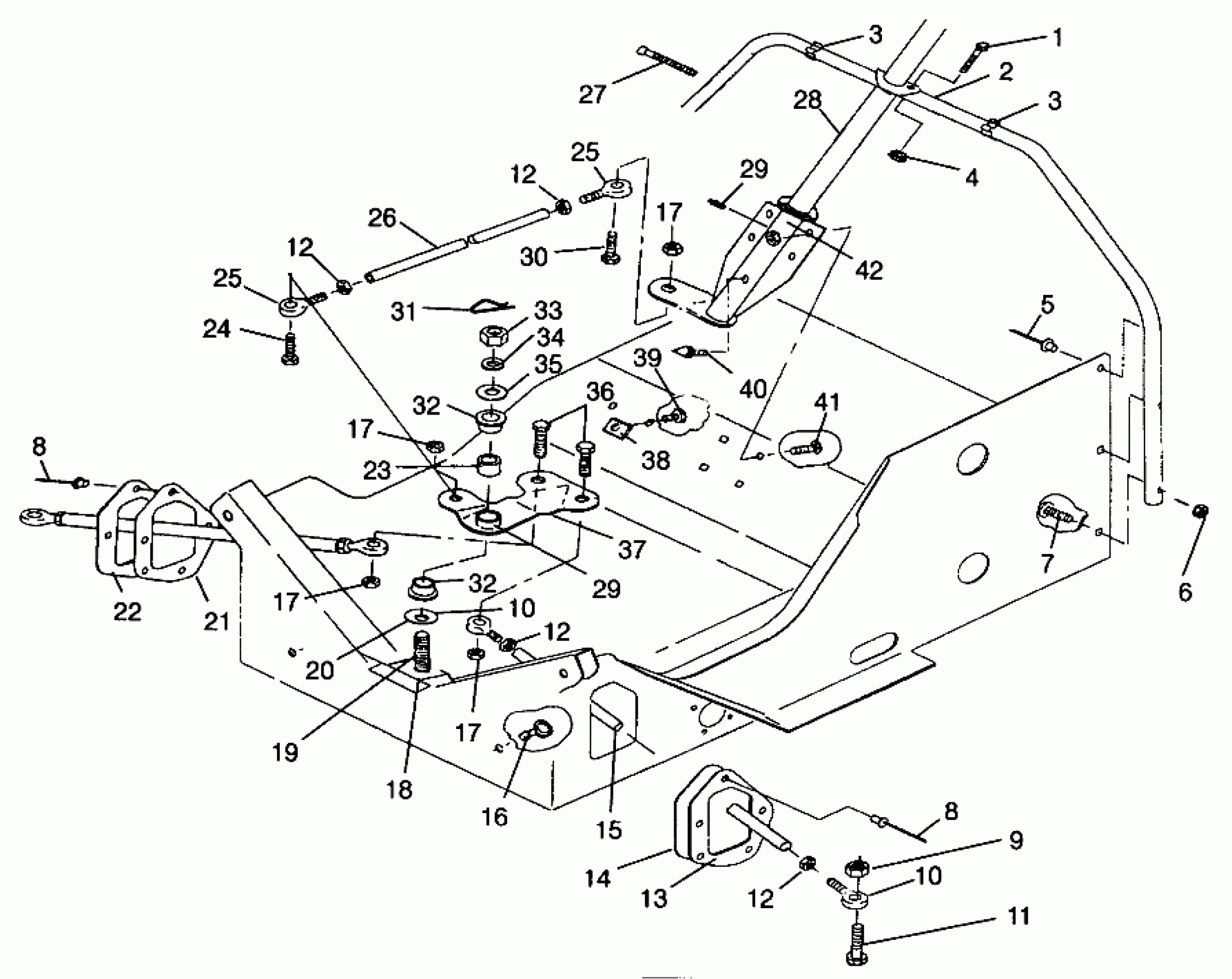

Polaris TRAIL - 0962761 STEERING TRAIL 0962761 (4931763176B005) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STEERING,BLK.
1012326-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
6
NUT, LOCK(10)
7542103
$5.59
7
BOLT-CARRIAGE(10)
7512275
$3.99
8
POP RIVET(50)
7621323
$1.49
8
POP RIVET(50)
7621323
$1.49
9
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
10
ROD END, LH Substituted by 7060166
7060151
$48.56
10
ROD END, RH Substituted by 7060167
7060152
$48.56
11
BOLT(10) Substituted by 7515528
7515529
Unavailable
12
NUT HEX(10)
7542401
$2.39
12
NUT
7542424
$1.49
12
NUT HEX(10)
7542401
$2.39
12
NUT
7542424
$1.49
12
NUT HEX(10)
7542401
$2.39
12
NUT
7542424
$1.49
12
NUT HEX(10)
7542401
$2.39
12
NUT
7542424
$1.49
13
PLATE,LH,BOOTSEAL,BLK.
5210959-067
Unavailable
14
BOOT , LH
5410388
Unavailable
15
TIEROD,BLK.
5020820-067
Unavailable
16
CLIP, PLASTIC(10)
4020139
$4.79
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
BLOCK, STEERING
5630375
Unavailable
19
BOLT(10)
7512682
Unavailable
20
WASHER,WAVE(10)
7555735
$3.99
21
BOOT-TIE ROD
5410328
Unavailable
22
PLATE,BOOTSEAL,BLK.
5210904-067
$5.71
23
BUSHING
5010322
Unavailable
24
BOLT(10)
7512404
$3.99
25
ROD END,LH
7060166
$48.56
25
ROD END,RH
7060167
$48.56
25
ROD END,LH
7060166
$48.56
25
ROD END,RH
7060167
$48.56
26
ROD, DRAG, LINK
5333144
Unavailable
27
STRAP, BLK
7080272
Unavailable
28
POST,STRG,BLK.
1823157-067
Unavailable
29
FITTING,LUB/VEN(10)
7080561
$4.79
29
FITTING,LUB/VEN(10)
7080561
$4.79
30
BOLT(10) Substituted by 7515492
7512410
Unavailable
31
PIN COTTER(10)
7661203
$1.49
32
BUSHING
5010340
Unavailable
32
BUSHING
5010340
Unavailable
33
BOLT(10)
7512681
Unavailable
34
LOCK WASHER(10)
7553201
$3.99
35
WASHER(10)
7555721
$1.49
36
BOLT(10)
7515528
$8.79
37
STRG.ASM,CTR. (Incl. 32, 29)
1822219
Unavailable
38
SPEED NUT(10)
7670021
$6.99
39
BOLT-CARRIAGE(10)
7512263
$3.99
40
ZERK,FITTING,THREADED(10)
7080433
$1.49
41
BOLT(10) Substituted by 7512377
7512394
Unavailable
42
NUT-5/16-18 NYLOK-Y
7542324
$1.49
