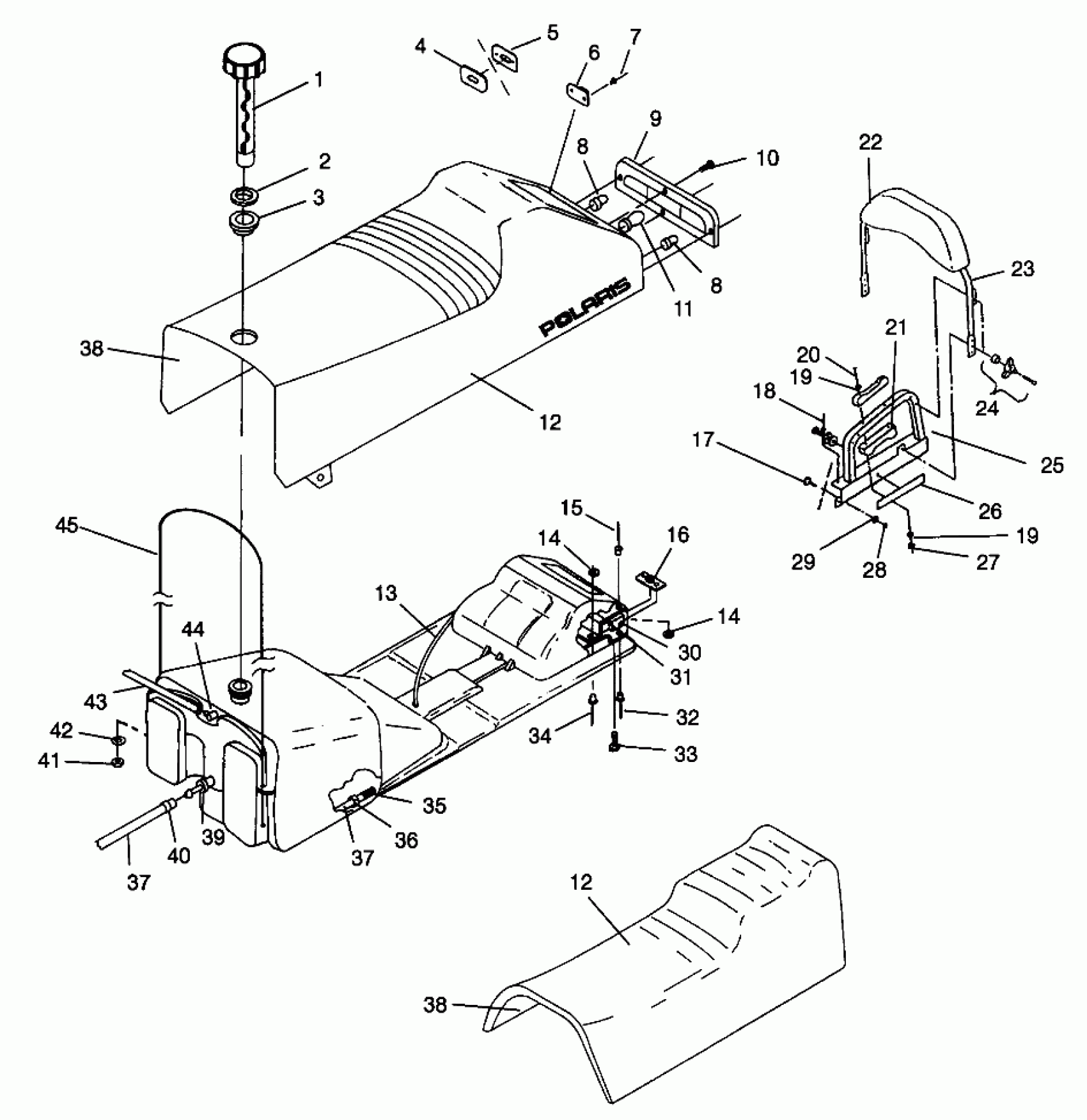

Polaris TRAIL - 0962761 SEAT and GAS TANK TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL (4931763176A008) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410815

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10) (Trail)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10) (Trail)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10) (Trail)

7080548

Unavailable

7

RIVET(50) (Trail)

7621337

$1.49

8

BULB,TAILLIGHT(10)

4030024

$4.84

8

BULB,TAILLIGHT(10)

4030024

$4.84

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

Bulb, Brakelight

4030045

Unavailable

12

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Touring, Euro)

2681788

Unavailable

12

COVER,SEAT,LONG (Trail)

2681853

Unavailable

12

COVER,SEAT,2-UP(SPORT TRG.) Substituted by 2682163 (Touring, Euro)

2681788

Unavailable

12

COVER,SEAT,LONG (Trail)

2681853

Unavailable

13

HARNESS,TAILLIGHT

2460398

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

RIVET, BLIND(50)

7621467

$1.49

16

NUT,RETAINER-WELD.(10)

7542147

$17.59

17

BOLT(10) Substituted by 7512325 (Touring)

7515363

Unavailable

18

RIVET,3/16X.402(50) (Touring)

7621432

$1.49

19

WASHER(10) (Touring)

7555783

$3.99

19

WASHER(10) (Touring)

7555783

$3.99

20

SCREW(10) (Touring)

7510504

$6.76

21

GRIP, HAND Substituted by 5433383 (Touring)

5431015

$19.68

22

COVER,BACKREST ASM. Substituted by 2681265 (Touring)

2681790

Unavailable

23

BACKREST ASM. Substituted by 2681356 (Touring)

2681789

Unavailable

24

KNOB ASM,BACKREST (Touring)

2670130

Unavailable

25

BAR,GRAB,LH,BLK. (Touring)

1011729-067

Unavailable

25

BAR,GRAB,RH,BLK. (Touring)

1011730-067

Unavailable

26

REFLECTOR RED (Touring)

2670070

$9.91

27

NUT, LOCK(10) Substituted by 7541925 (Touring)

7541929

Unavailable

28

NUT, NYLOK(10) (Touring)

7542327

$4.79

29

WASHER(10) Substituted by 7558402 (Touring)

7555770

Unavailable

30

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

31

COVER,T/L PROTECTOR

5431436

$21.43

32

RIVET(50)

7621301

$3.99

33

SCREW(10)

7512242

$2.39

34

RIVET(50)

7621460

$1.49

35

FUELPICKUP,W/STRAINER

7052037

$12.94

36

RING, COMPRESSION(10)

7080402

$1.60

37

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

37

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

38

SEAT ASM,2-UP(SPORT TRG.) (Touring, Euro) (Incl. 4-7, 8-16, 35-39, 44, 45)

2681787

Unavailable

38

CUSHION,SEAT,LONG (Trail) (Incl. 4-7, 8-16, 35-39, 44, 45)

2681852

$399.99

38

SEAT ASM,2-UP(SPORT TRG.) (Touring, Euro) (Incl. 4-7, 8-16, 35-39, 44, 45)

2681787

Unavailable

38

CUSHION,SEAT,LONG (Trail) (Incl. 4-7, 8-16, 35-39, 44, 45)

2681852

$399.99

39

FITTING - OUTLET(10)

7052023

$24.99

40

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

41

NUT(10)

7541925

$1.49

43

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

44

FITTING,90 DEG,1/8,(10)

7052095

$4.79

45

CABLE,TANK,RETENTION

7080559

Unavailable
