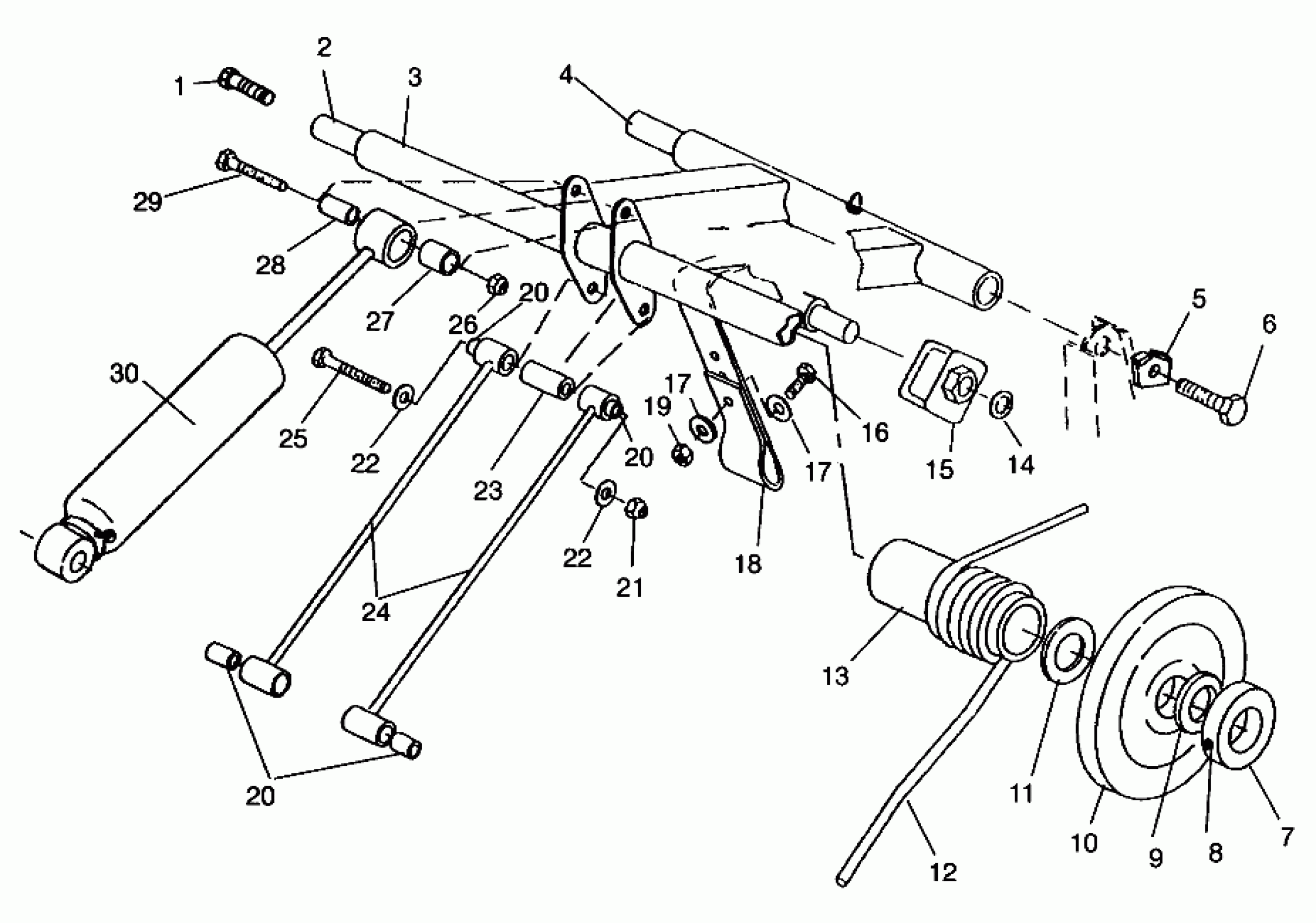

Polaris TRAIL - 0962761 REAR TORQUE ARM TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E962262 (4931763176C008) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT,R.TORQUE,UPPER

5020845

$63.99

3

ARM,R.TORQUE,BLK Substituted by 2200914

1541024-067

$68.19

4

SHAFT,LOW,RR,TORQUE

5020843

Unavailable

5

LOCK,BOLT,MECHANICAL

5211649

Unavailable

6

BOLT(10)

7515526

$1.19

7

COLLAR-BRG. LOCK

5010155

Unavailable

8

SCREW-SET(10)

7512257

$3.99

9

WASHER(10)

7555882

$2.07

10

Wheel, Carrier

1543023

Unavailable

11

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

11

WASHER, THRUST(10) Substituted by 7555871

7555787

Unavailable

13

SLEEVE,TORSION SPRING

5431923

$6.39

14

CLIP-PUSH ON

7080394

$2.39

15

ROLLER, SPRING ADJ.

5431168

Unavailable

16

BOLT(10) (RMK)

7515307

$3.99

17

WASHER(10)

7555716

$1.59

17

WASHER(10)

7555716

$1.59

18

STRAP-LIMITER,RR,SA

5411062

Unavailable

19

NUT LOCK(10)

7542321

$1.49

20

BUSHING,PIVOT TUBE

5020561

$1.59

20

BUSHING,PIVOT TUBE

5020561

$1.59

20

BUSHING,PIVOT TUBE

5020561

$1.59

21

NUT FLEX LOC,(10)

7542402

$6.39

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

22

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

23

Spacer

5333420

$11.99

24

ROD,SHOCK,(XTRA 10)133

1541021-067

Unavailable

25

BOLT(10)

7515525

Unavailable

26

NUT FLEX-LOC(10)

7542303

$6.39

27

BUSHING

5430537

$3.99

28

BUSHING,R.SHOCK

5333030

Unavailable

29

BOLT(10)

7512329

$3.99

30

SHOCK,GAS,R.TRACK

7041438

Unavailable
