NOSEPAN TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E (4931763176A009)

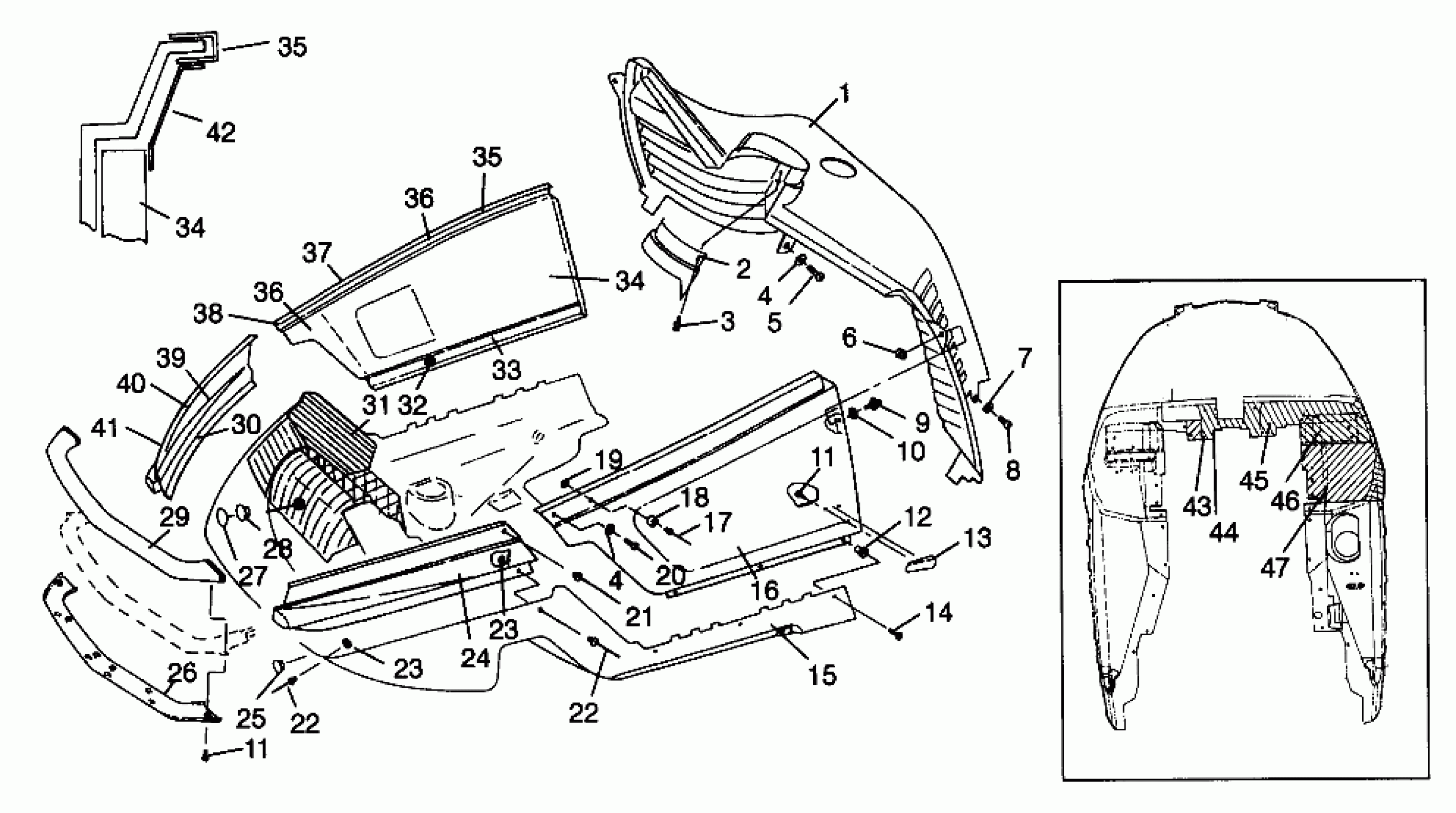

Polaris TRAIL - 0962761 NOSEPAN TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING E (4931763176A009) Diagram
#
1
CONSOLE,EUROPE (Euro)
5431697
Unavailable
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN-EV, STD, BLK Substituted by 5432652
5432044
Unavailable
16
PANEL,LH,SIDE,BLK.MET.
5431742-177
Unavailable
16
FOAM,LH,SIDEPANEL
5811076
Unavailable
17
RIVET(50)
7621315
$3.99
18
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
19
RIVET BURR(50)
7555756
$2.99
20
SCREW(10)
7515148
$4.79
21
RIVET(50)
7621472
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
22
RIVET, BLIND(50)
7621467
$1.49
23
BURR,RIVET(50)
7555904
$1.49
23
BURR,RIVET(50)
7555904
$1.49
24
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
25
PLUG,NOSEPAN HOLE
5410820
$15.99
26
COVER,F.BUMP.BOTTOM
5431481
Unavailable
27
FOIL,TAPE,3"DIA.
5810999
Unavailable
28
PLUG,CATCH HOLE
5410582
$7.27
29
COVER,F.BUMP.TOP,BLK.
5431480-177
Unavailable
30
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
31
FOIL,RH,PANSIDE,#16
5811195
Unavailable
32
FOIL,LOW.SIDEPANEL
5811071
Unavailable
33
TAPE,FOIL,BULK ROLL [Item NotAvailable] (Service)
8360044
Unavailable
34
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
34
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
35
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
35
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
36
FOIL,FR.SIDEPANEL
5811072
Unavailable
36
FOIL,FR.SIDEPANEL
5811072
Unavailable
37
PANEL,RH,SIDE,BLK. (Incl. 32-38)
2610008-070
Unavailable
38
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
39
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
40
FOIL-SIDE BUMPER-UPPER
5811153
Unavailable
41
BUMPER,RH,SIDE/FOIL,BLK.MT.
2610010-177
Unavailable
42
FOIL,UP.SIDEPANEL
5811073
Unavailable
43
FOIL,LH,SHOCKTOWER,#12
5811188
Unavailable
44
FOIL-CENTER, #11
5811187
Unavailable
45
FOIL,RH,SHOCKTOWER,#13
5811192
Unavailable
46
FOIL,RH,SHOCKTOWER,TOP,#14
5811193
Unavailable
47
FOIL,RH,SHOCK TOWER,LOW.
5811194
Unavailable
