NOSEPAN TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING (4931763176A010)

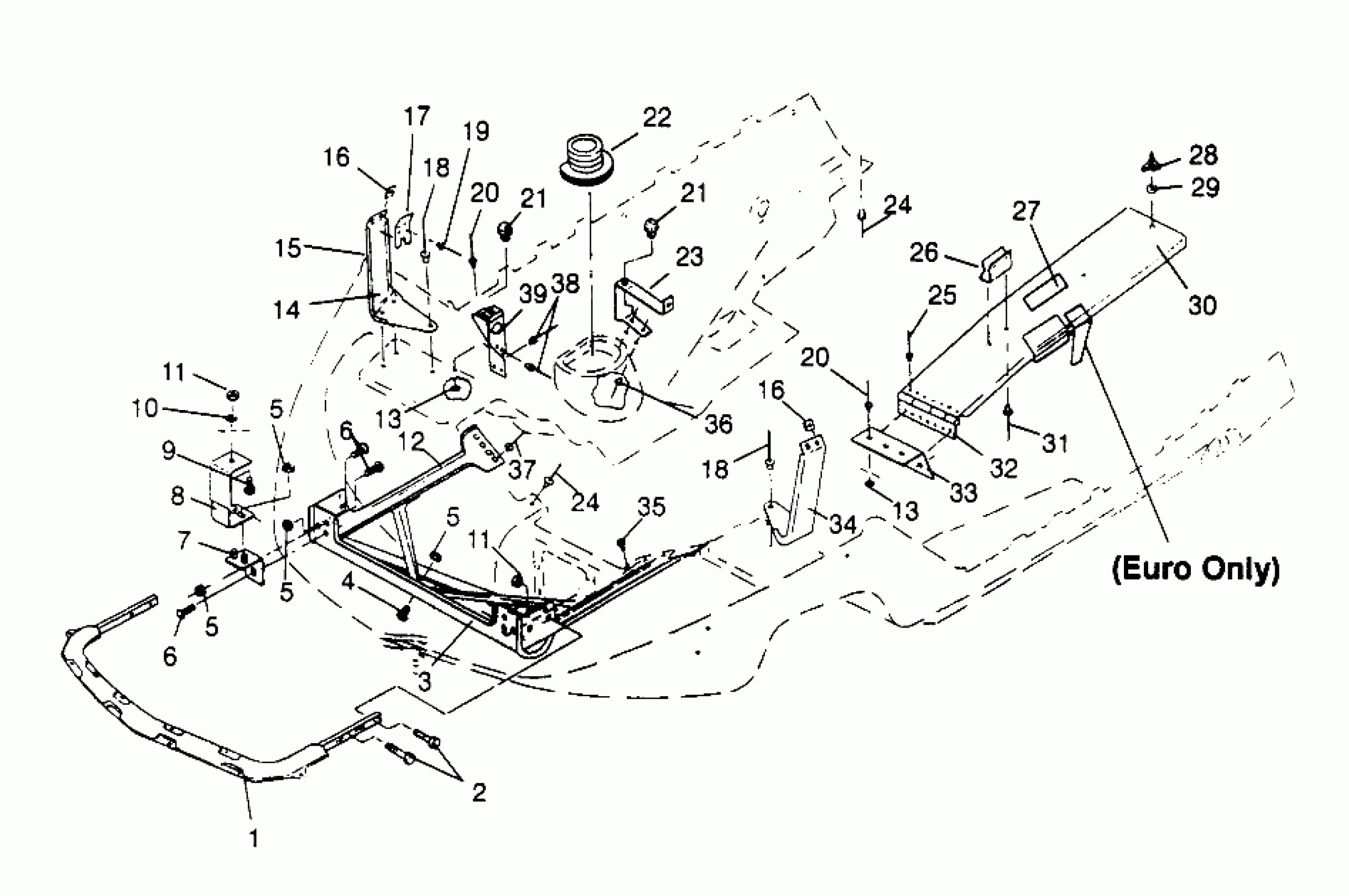

Polaris TRAIL - 0962761 NOSEPAN TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURING (4931763176A010) Diagram
#
1
BUMPER,FRONT
2670146-067
Unavailable
2
SCREW(10)
7512307
$3.99
3
BRACE,HD.SUPPORT,BLK.
5241003-067
$49.21
4
BOLT(10)
7512298
$3.99
5
NUT(10)
7542153
$1.59
5
NUT(10)
7542153
$1.59
5
NUT(10)
7542153
$1.59
5
NUT(10)
7542153
$1.59
6
BOLT(10)
7512193
$2.39
6
BOLT(10)
7512193
$2.39
7
MOUNT,HINGE,BLK.
1011982-067
$45.99
8
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
9
SCREW(10)
7512310
$2.39
10
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
11
NUT FLEX-LOC(10)
7542303
$6.39
11
NUT FLEX-LOC(10)
7542303
$6.39
12
SUPPORT,LH,BUMPER
1012327-067
$63.49
12
SUPPORT,RH,BUMPER
1012328-067
$133.29
13
BURR,RIVET(50)
7555904
$1.49
13
BURR,RIVET(50)
7555904
$1.49
14
TAPE,FOIL,215 CM.(85 IN.)
8360043-215
Unavailable
15
BRKT,RH,SIDEPANEL
5240995
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
17
SHIELD,FASTENER
5240769
$0.90
18
RIVET(50)
7621485
$1.49
18
RIVET(50)
7621485
$1.49
19
RIVET(50)
7621318
$1.49
20
RIVET(50)
7621433
$1.49
20
RIVET(50)
7621433
$1.49
21
DAMPNER, VIB.
5410467
$8.79
21
DAMPNER, VIB.
5410467
$8.79
22
Boot, Exhaust
5410502
$24.27
23
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
RIVET, POP(50)
7621330
$1.49
26
CLIP,BELT RETAINER
5222769
$8.79
27
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
28
KNOB,CLUTCH GUARD(10)
7080523
$4.03
29
BUMPER,CLUTCHGUARD
5431928
$2.39
30
GUARD,CLUTCH,(EURO) (EURO)
1011999
$50.75
30
GUARD,CLUTCH
5240999
Unavailable
31
RIVET(50)
7621429
$1.49
32
HINGE
5210728
Unavailable
33
MT,FR.CLUTCHGUARD
5222904
Unavailable
34
BRKT,LH,SIDEPANEL
5240994-067
Unavailable
35
CLIP, PLASTIC(10)
4020139
$4.79
36
RIVET(50)
7621472
$1.49
37
RIVET,INTERLOCK,B(50)
7661638
$1.49
38
RIVET-3/16-.090-.290
7661637
$1.49
39
SUPPORT,MUFFLER,BLK.
1260724-067
$92.99
