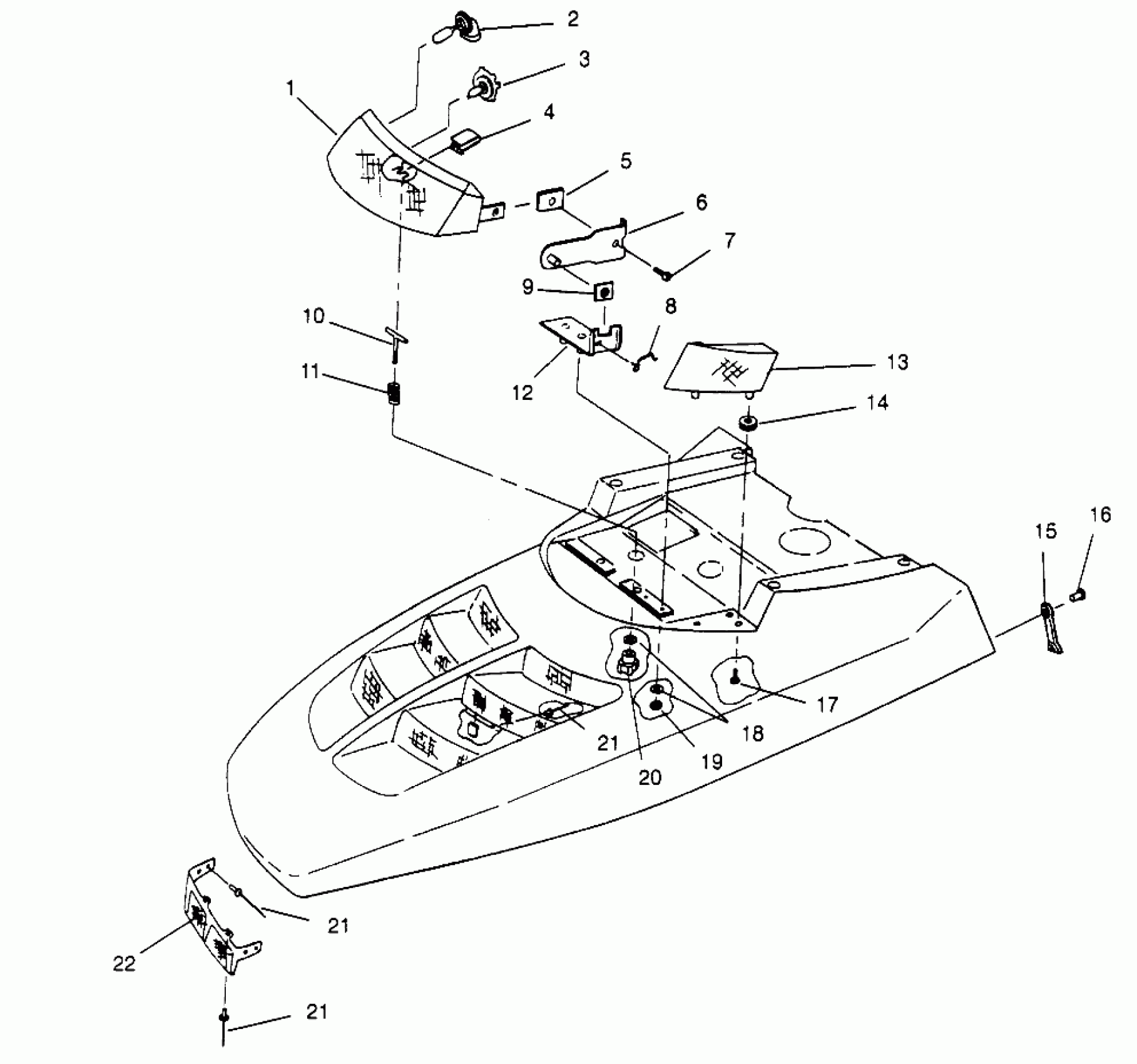

Polaris TRAIL - 0962761 HOOD - HEADLIGHT TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL (4931763176A014) Diagram

#

Description
Price

1

H/L ASM,3-BULB (Incl. 2, 3)

2431008

$111.99

2

BULB,HI-BEAM

4030048

$29.03

3

BULB,QUARTZ.H/L,INDY

2870448

$24.99

4

FASTENER-U TYPE CLIP

7670040

$3.99

5

NUT, SPEED(10)

7670057

$1.49

6

MOUNT,WELD,H/L

1011944-067

$24.27

7

BOLT(10)

7515107

Unavailable

8

RETAINER,LH,WIRE

5224493

$2.22

8

RETAINER,RH,WIRE

5224501

Unavailable

9

PIVOT,HEADLIGHT

5431549

Unavailable

10

BOLT,TEE ADJUSTER Substituted by 7517746

7515135

$24.99

11

SPRING,H/L.ADJ.

7041308

$3.19

12

BRKT,LH,H/L MT.,BLK.

1011984-067

Unavailable

12

BRKT,RH,H/L MT.,BLK.

1011985-067

Unavailable

13

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

13

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

14

GROMMET

5410770

Unavailable

15

STRAP,HOODLATCH

5431501

Unavailable

16

RIVET,(50)

7621601

Unavailable

17

SCREW(10) Substituted by 7512048

7511953

Unavailable

18

WASHER(10)

7558301

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

KNOB,H/L.ADJUST

7080501

Unavailable

21

RIVET(50)

7621339

$1.49

21

RIVET(50)

7621339

$1.49

21

RIVET(50)

7621339

$1.49

22

SCREEN,FR.,BLK.

1012031-067

Unavailable
