FRONT SUSPENSION and SKI TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN (4931763176B001)

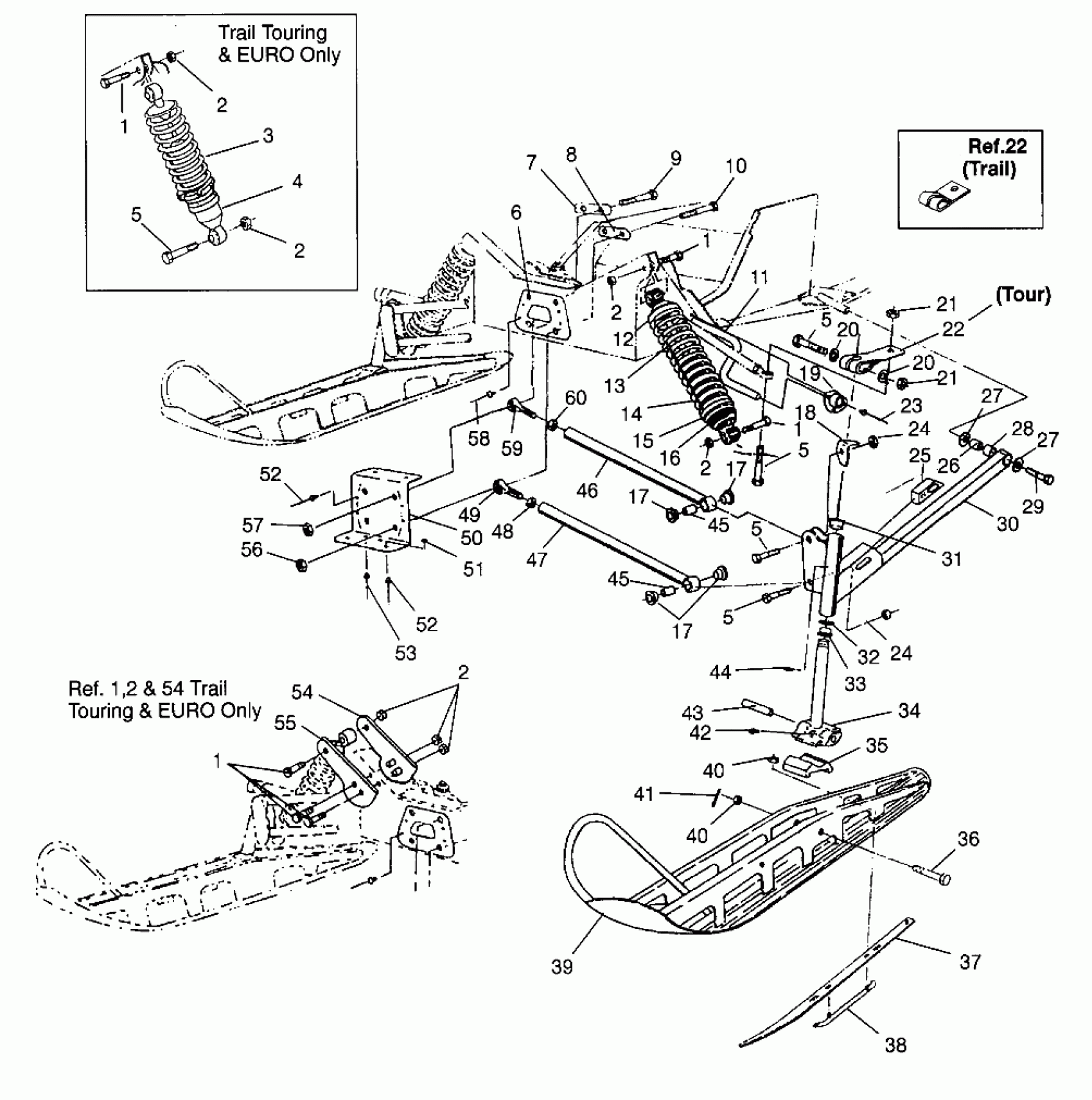

Polaris TRAIL - 0962761 FRONT SUSPENSION and SKI TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN (4931763176B001) Diagram
#
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
1
BOLT(10) Substituted by 7515415
7515515
Unavailable
2
NUT, NYLOC(10)
7542453
Unavailable
2
NUT, NYLOC(10)
7542453
Unavailable
2
NUT, NYLOC(10)
7542453
Unavailable
2
NUT, NYLOC(10)
7542453
Unavailable
2
NUT, NYLOC(10)
7542453
Unavailable
3
RETAINER,SPRING,BODY,THREADED (Touring)
1500063
$44.51
3
RING,SPRING PRELOAD ADJ. (Touring)
5431734
$52.60
3
RETAINER,SPRING,SLOTTED (Touring)
5020618
$24.99
3
SPRING,.306 COMP(LT),BLK. (Touring)
7041405-067
Unavailable
4
SHOCK,GAS,IFS (Touring)
7041423
Unavailable
5
BOLT(10) Substituted by 7517583
7515491
Unavailable
5
BOLT(10) Substituted by 7517583
7515491
Unavailable
5
BOLT(10) Substituted by 7517583
7515491
Unavailable
5
BOLT(10) Substituted by 7517583
7515491
Unavailable
5
BOLT(10) Substituted by 7517583
7515491
Unavailable
6
BRACE,BLKHD/STRG,BLK.
5211589-067
Unavailable
7
STRAP,SPACER TOP
5211344
$7.27
8
STRAP,SPACER BOTTOM
5211345
$12.99
9
BOLT(10)
7512582
$8.79
10
BOLT(10)
7512684
Unavailable
11
BAR,SWAY,9/16-41
5224678-067
Unavailable
12
RETAINER-TOP (Trail)
5220225
$10.39
13
SPRING,COMP.,BLK. (Trail)
7041261-067
$164.99
14
SLEEVE,SPRING PROTECTOR
5431032
$31.99
15
CAM,ADJUSTING SPRING (Trail)
5630334
$32.37
16
SHOCK,IFS,GAS/CAM (Trail)
7041388
Unavailable
17
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
17
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
17
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
18
STOP,RH,STRG,BLK.
5240398-067
Unavailable
18
STOP,LH,STRG,BLK.
5240397-067
Unavailable
19
BUSHING-SWAYBAR
5410383
Unavailable
20
WASHER(10) Substituted by 7555832
7555851
Unavailable
20
WASHER(10) Substituted by 7555832
7555851
Unavailable
21
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
22
ARM, STEERING (Trail)
5220326-067
Unavailable
22
ARM,STEERING (Touring)
5241244-067
Unavailable
22
ARM, STEERING (Trail)
5220326-067
Unavailable
22
ARM,STEERING (Touring)
5241244-067
Unavailable
23
RIVET(50)
7621433
$1.49
24
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
24
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
25
SLIDE-SWAYBAR
5410384
Unavailable
26
TUBE,TRAILING ARM
5010187
Unavailable
27
WASHER(10)
7555721
$1.49
27
WASHER(10)
7555721
$1.49
28
PIVOT-TRAILING ARM
5410382
Unavailable
29
BOLT(10)
7512557
$7.60
30
ARM,TRLG,LH. (Touring) (Incl. 26, 28)
1822262
Unavailable
30
ARM,TRLG,RH (Touring) (Incl. 26, 28)
1822264
Unavailable
30
ARM,TRLG,LH (Trail) (Incl. 26, 28)
1822337
Unavailable
30
ARM,TRLG,RH (Trail) (Incl. 26, 28)
1822338
Unavailable
31
BUSHING-FLANGE
3573909
$2.39
32
WASHER SPECIAL(10)
7556509
$1.59
33
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
34
SPINDLE, BLK.
6230073-067
Unavailable
35
STOP, RUBBER
5521276
Unavailable
36
BOLT(10)
7515462
$8.79
37
Plate, Skag
1011829-067
$54.99
38
SKAG, BLK.
1820318-067
$49.99
38
SKAG,PR,3'' CRABIDE,E-Z STEER (Incl. 37, 38)
2870976
Unavailable
39
SKI WELD, BLK
1820332-067
Unavailable
40
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
40
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
41
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
42
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
43
BUSHING,PIVOT,(10)
5010158
$19.99
44
ZERK,FITTING,THREADED(10)
7080433
$1.49
45
BUSHING-RADIUS ROD,(10)
5010127
$7.99
45
BUSHING-RADIUS ROD,(10)
5010127
$7.99
46
ROD,RAD,UPPER (Tour.)
1822297-067
Unavailable
46
ROD,RAD,UPPER,BLK. (Trail)
1822333-067
Unavailable
47
ROD,RAD,LOWER (Tour.)
1822292-067
Unavailable
47
ROD,RAD,LOWER (Trail)
1822334-067
Unavailable
48
NUT-JAM(10)
7542711
$2.39
49
ROD END Substituted by 7061027
7060162
$48.56
50
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
51
BURR,RIVET(50)
7555904
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
53
RIVET,3/16X.402(50)
7621432
$1.49
54
MT,RH,SHOCK EXT.BLK. (Touring)
1012053-067
Unavailable
54
MT,LH,SHOCK EXT.BLK. (Touring)
1012052-067
Unavailable
55
PLATE,SHOCK MT.EXT,BLK.
5211449-067
Unavailable
56
NUT FLEX,(10)
7542703
Unavailable
57
NUT, LOCK,(10)
7542503
$10.39
58
RIVET-3/16-.090-.290
7661637
$1.49
59
ROD END
7060163
Unavailable
60
NUT JAM(10)
7542520
$2.39
