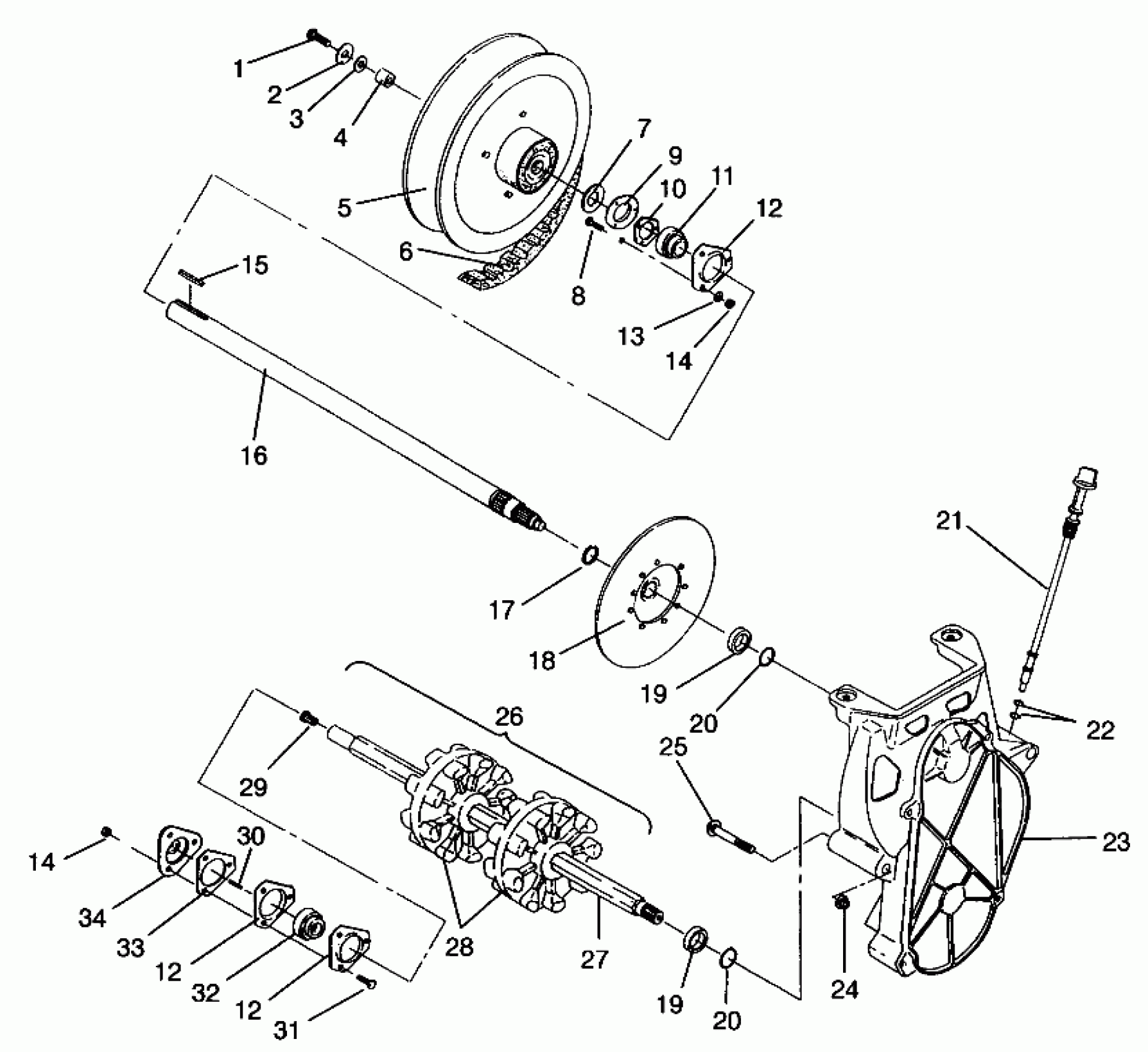

Polaris TRAIL - 0962761 DRIVE TRAIN TRAIL 0962761, TRAIL TOURING 0962262, and EUROPEAN TRAIL TOURI (4931763176B011) Diagram

#

Description
Price

1

BOLT(10)

7515301

Unavailable

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

SPACER

5020291

Unavailable

5

Asm., Driven Clutch (See Pg., Ref.)

-------

Unavailable

6

BELT DRIVE(5)

3211042

$109.99

7

WASHER SPECIAL(10)

7556509

Unavailable

8

BOLT(10) Substituted by 7512377

7512394

Unavailable

9

FITTING,LUB/VEN(10)

7080561

$4.79

9

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

10

GASKET,JACKSHAFT,BLK.

5811095

$2.41

11

BEARING,JACKSHAFT

3514519

$64.99

12

FLANGETTE

5222751

$16.44

12

FLANGETTE

5222751

$16.44

12

FLANGETTE

5222751

$16.44

13

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

KEY-SQUARE(10)

7721204

$3.19

16

JACKSHAFT,15T SPLINE Substituted by 1332167-171 (Incl. 17)

1332167

Unavailable

17

RING, RETAINING(10)

7710422

$3.99

18

DISC ASM, BRAKE

1910086

Unavailable

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O RING,(10)

5410613

$1.99

20

O RING,(10)

5410613

$1.99

21

DIPSTICK Substituted by 1332143

5431419

Unavailable

22

O-RING

5410675

$1.60

23

Cover, Chaincase, Reverse (See Pg. B10, Ref. 16) (Touring)

-------

Unavailable

23

Cover, Chaincse, Cast (See Pg. B8, Ref. 15) (Trail)

-------

Unavailable

24

NUT(10)

7542423

$3.99

25

BOLT(10)

7515428

$4.79

26

DRIVESHAFT ASM,HD,2DR Substituted by 1590250 (Incl. 27-29)

1590249

Unavailable

27

SHAFT,DRIVE(HI.STRENGTH)

6230083

Unavailable

28

SPROCKET, 9T

5430571

Unavailable

29

BUSHING METAL SPEEDO

3280019

$11.99

30

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

31

BOLT(10)

7512331

$3.99

32

BEARING,DRIVESHAFT

3514518

$64.99

33

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

34

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
