CHAINCASE TRAIL TOURING 0962262 and EUROPEAN TRAIL TOURING E962262 (4931763176B009)

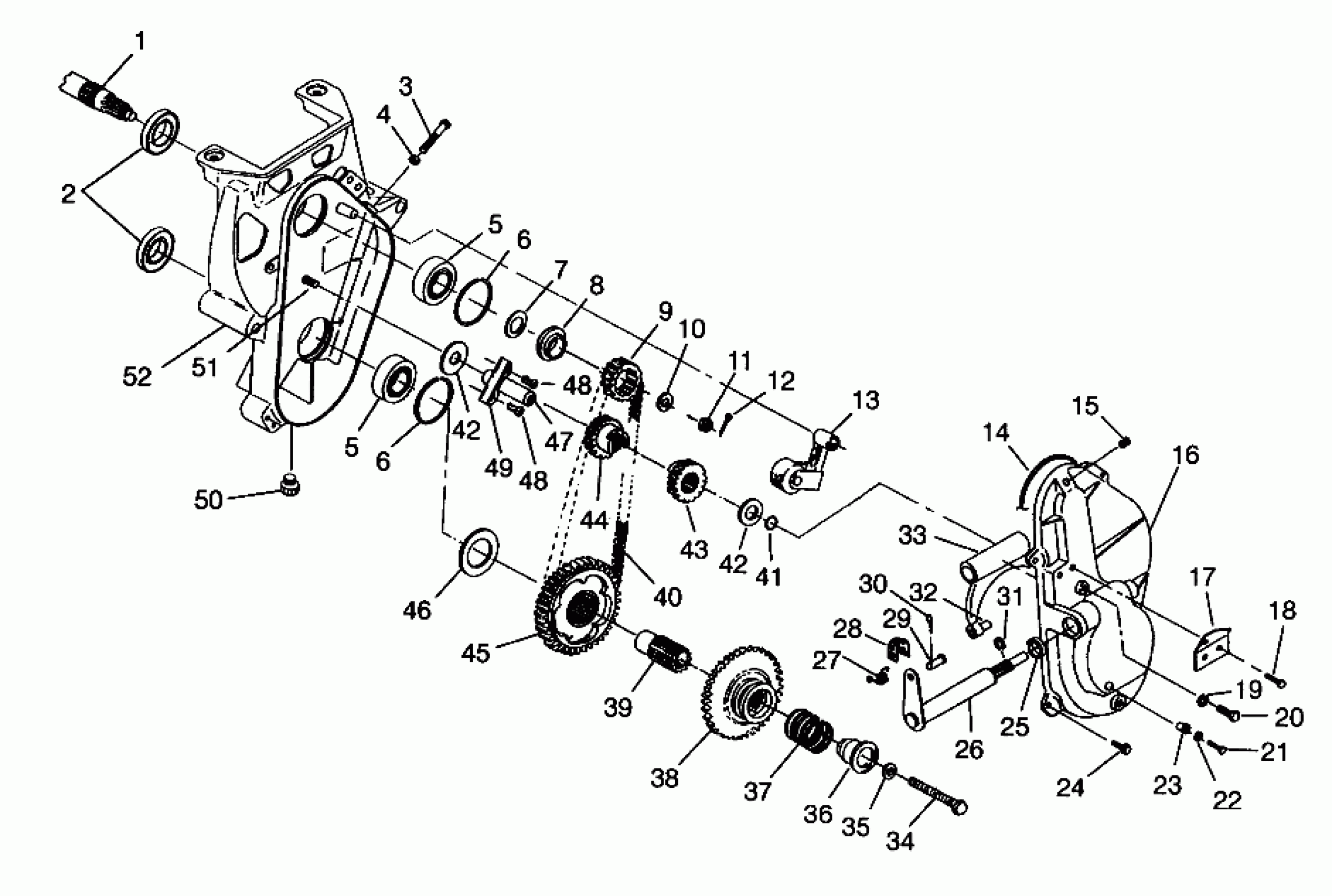

Polaris TRAIL - 0962761 CHAINCASE TRAIL TOURING 0962262 and EUROPEAN TRAIL TOURING E962262 (4931763176B009) Diagram
#
1
Asm., Jackshaft (See Pg., Ref.)
-------
Unavailable
2
SEAL-OIL
3610030
$20.22
3
SCREW(10)
7515511
$3.99
4
NUT(10)
7542404
$1.59
5
BEARING,205,W/O SEAL
3514304
$15.99
5
BEARING,205,W/O SEAL
3514304
$15.99
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
7
WASHER(10)
7555917
$2.39
8
SPACER,SPROCKET
5010359
Unavailable
9
SPKT,20T,(11W),15T SPLINE (Tour)
3221065
Unavailable
10
WASHER, SLOTTED(10)
7571620
$7.19
11
NUT
7542811
Unavailable
12
COTTER PIN(10)
7661401
$1.49
13
PIN,CHAIN TIGHTENER
7662210
Unavailable
13
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
13
BEARING
3553002
$11.99
13
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
13
WHEEL,C/C IDLER
5630123
Unavailable
13
WASHER THRUST(10)
7558702
$1.59
14
GASKET-CHAINCASE
5410277
$24.99
15
PLUG(10)
7051520
$8.79
16
COVER,CH.CS,REV.MACH. Substituted by 5131753
5131172
Unavailable
17
BRKT,CABLE MOUNT
5222502-067
Unavailable
18
SCREW(10)
7512252
Unavailable
19
WASHER WROUGHT(10)
7558403
$4.79
20
SCREW(10)
7512497
Unavailable
21
SCREW(10)
7511909
$3.99
22
WASHER, FLAT(10)
7558201
$5.79
23
NUT-WELL(10)
7541918
Unavailable
24
SCREW(10)
7512242
$2.39
25
Seal, Oil
3610029
$8.89
26
SHAFT, SHIFT
1341093-067
$29.37
27
SPRING,REV.CABLE TENSION
7042044
Unavailable
28
CLEVIS
5222606
Unavailable
29
PIN, CLEVIS(10)
7661830
$3.99
30
PIN-COTTER(10)
7661205
$1.49
31
RING, RETAINER(10)
7710415
$3.99
32
PIN, SHIFT FORK(10)
7661826
$5.65
33
KIT,SHIFT FORK/SHAFT (Include. 26, 32)
2200363
Unavailable
33
Fork, Shift
5130805
Unavailable
34
SCREW, NYLOK(10)
7515348
$4.79
35
LOCK WASHER(10)
7552901
$1.49
36
RETAINER,DRIVE COUPLER
5130727
Unavailable
37
SPRING, COMPRESSION Substituted by 7041887
7041309
$44.99
38
GEAR ASM,REVERSE Substituted by 1341362
1341121
$559.99
39
Coupler, Drive
5130720
Unavailable
40
CHAIN 66 PITCH
3224024
Unavailable
41
O RING
5410589
$4.99
42
WASHER,THRUST(10)
7555877
$3.99
42
WASHER,THRUST(10)
7555877
$3.99
43
GEAR,SPUR PINION
1341075
$149.99
44
GEAR ASM, PINION
1341076
Unavailable
45
SPROCKET ASM,39T
1341163
Unavailable
46
WASHER, REVERSE(10)
7555871
$5.59
47
SHAFT, PINION Substituted by 5131770
5130728
Unavailable
48
SCREW(10)
7512019
$3.99
48
SCREW(10)
7512019
$3.99
49
BRKT,CHAIN RETENTION
5222298
Unavailable
50
PLUG(10)
7052115
$5.65
51
BOLT(10)
7515477
$34.99
52
CHAINCASE,VENTED,W/BRG CLEAR. Substituted by 5131568
5131121
Unavailable
