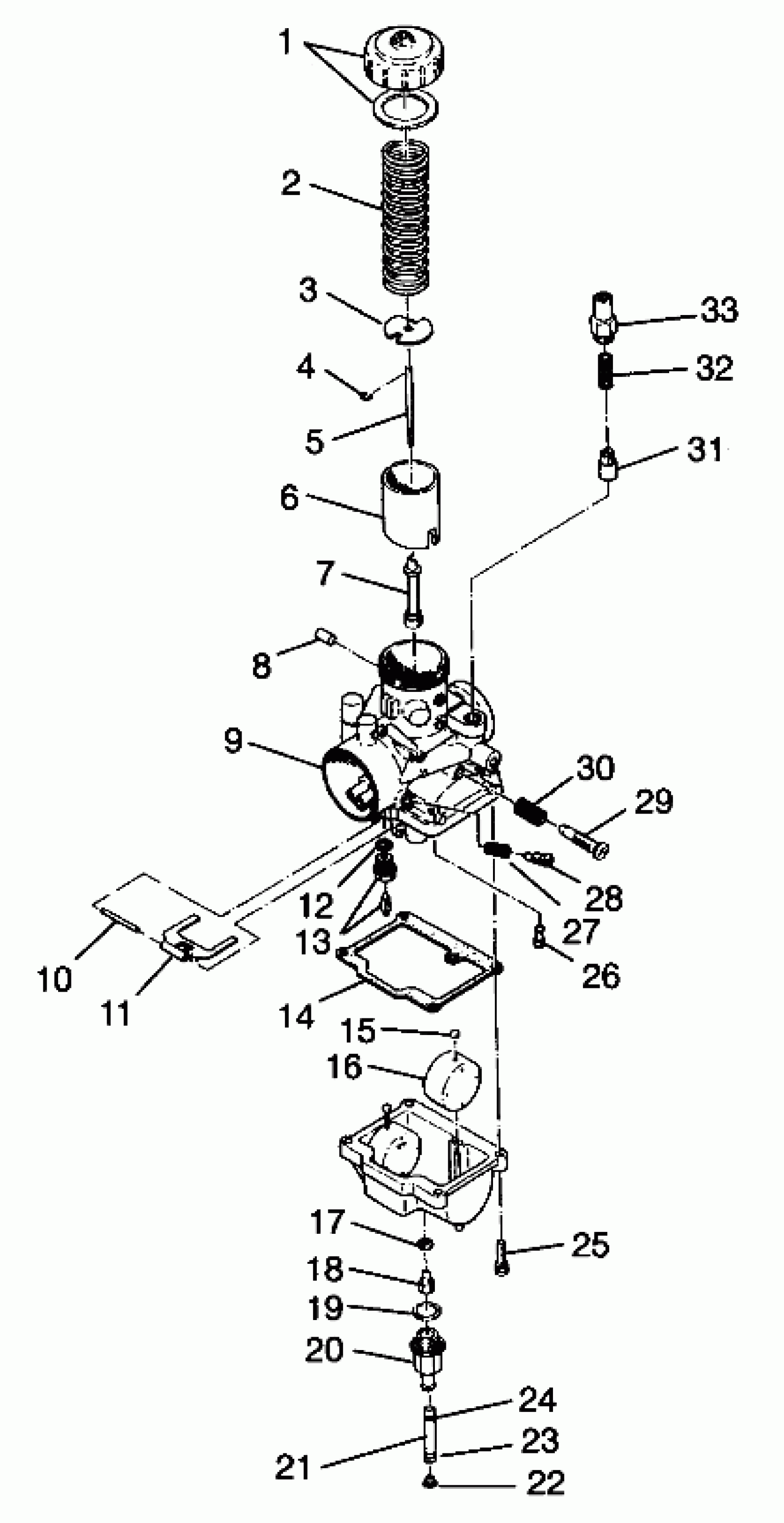

Polaris TRAIL - 0962761 CARBURETOR TRAIL 0960761, TRAIL TOURING 0960262 and EUROPEAN TRAIL TOURING (4931763176D005) Diagram

#

Description
Price

1

TOP ASM

3130184

$32.37

2

SPRING, THROTTLE

3130318

$20.22

3

PLATE

3130027

$9.70

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE (6DH7-3)

3130329

Unavailable

6

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

7

NEEDLE JET (P-8) (166)

3130421

Unavailable

8

CAP

3130479

$14.56

9

CARBURETOR ASM (Incl. 1-19, 22, 25-33)

3130627

Unavailable

10

PIN, FLOAT

3130361

$8.89

11

ARM,FLOAT

3130018

$24.27

12

PACKING(10)

3130017

$4.03

13

VALVE,NEEDLE Substituted by 3131146

3130016

$48.56

14

PACKING,FLOAT CHAMBER

3130020

$16.17

15

CAP,(10)

3130237

$4.03

16

FLOAT ASM.

3130430

$43.56

17

WASHER (10)

3130014

$1.59

18

JET,MAIN,HX.HD#220(10) (#220)

3130125

$5.65

19

O RING

3130239

Unavailable

20

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

21

FUEL LINE, 5 FT.

8450045-153

Unavailable

22

NIPPLE

3130573

$32.37

23

CLAMP,HOSE(10)

7080544

Unavailable

24

CLAMP,SPRING,(10)

7080534

$1.59

25

SCREW & WASHER(10)

3130025

$3.19

26

JET,PILOT,#35(10) (#35)

3130066

$8.89

27

SPRING,AIR ADJUST

3130012

$8.89

28

SCREW,AIR

3130011

$19.99

29

SCREW,THROTTLE STOP

3130009

$19.99

30

SPRING,THROTTLE ADJ.

3130010

$8.89

31

PLUNGER ASM, STARTER

3130328

$32.37

32

SPRING,PLUNGER

3130006

$8.89

33

HOLDER,GUIDE

3130199

$28.32
