TRACK SUSPENSION 4

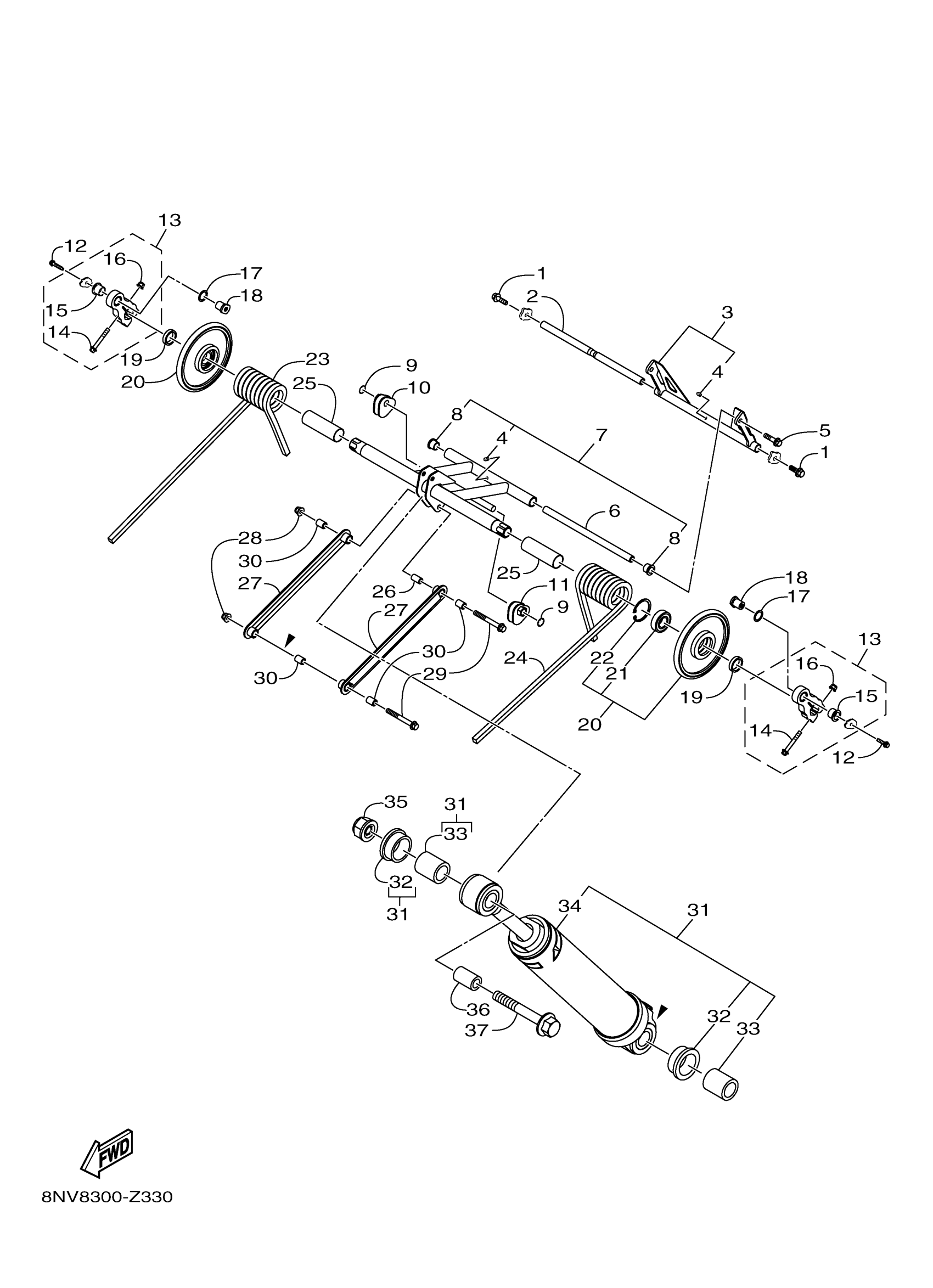

Yamaha TR8NTSSB (TRANSPORTER 800) 8NV9 2025 TRACK SUSPENSION 4 Diagram
#
1
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
2
SHAFT 6
8JP-G7488-10-00
Unavailable
3
BRACKET 3
8ND-G7417-00-00
$88.99
4
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
5
BOLT, FLG. M10X1.2
8JP-RA1A1-00-00
$3.88
6
SHAFT 5
8JP-G7487-00-00
$25.99
7
ARM, PIVOT 2
8ND-G7332-00-00
Unavailable
8
BUSH, 0.628
8JP-RA808-00-00
$9.49
9
RING,RETAINING-ADJ BLOCK 9/16
8JM-RA315-00-00
$0.85
10
BLOCK, SPRING-ADJUSTER-RH
8JM-G7448-00-00
Unavailable
11
BLOCK, SPRING-ADJUSTER-LH
8JM-G7447-00-00
Unavailable
12
BOLT, FLANGE
8ND-RA112-00-00
$14.99
13
ARM, REAR PIVOT 1
8LJ-G7361-00-00
$74.99
14
BOLT, FLG. M8X1.25
8JP-RA191-00-00
$7.49
15
BUSH, 12FDU12
8JP-RA813-00-00
$4.77
16
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
17
WASHER, 0.035
8JP-RA436-00-00
Unavailable
18
NUT
8JP-G7368-00-00
Unavailable
19
COLLAR, 12.81
8JP-RA727-00-00
Unavailable
20
WHEEL, SUSPENSION
8JP-G7312-00-00
Unavailable
21
BEARING, 2
8JP-RAG03-00-00
Unavailable
22
CIRCLIP, 2
8JP-RAH04-00-00
Unavailable
23
SPRING, REAR 2
8ND-G7474-00-00
Unavailable
24
SPRING, REAR 1
8ND-G7473-00-00
Unavailable
25
PROTECTOR
8JP-G7445-00-00
Unavailable
26
COLLAR, 12
8JP-RA724-00-00
Unavailable
27
ROD, RELAY
8ND-G7494-00-00
Unavailable
28
LOCK NUT
8JP-RA378-01-00
Unavailable
29
BOLT, FLG
8JP-RA1B4-00-00
Unavailable
30
COLLAR, 19
8JP-RA735-00-00
Unavailable
31
SHOCK ABSORBER
8ND-G7480-00-00
Unavailable
32
BUSH, 3
8JP-RA804-00-00
Unavailable
33
COLLAR, 14.5
8JP-RA728-00-00
Unavailable
34
. LABEL, WARNING
8JP-F2259-70-00
Unavailable
35
BOLT, FLG. M10X1.2
8JP-RA1A3-00-00
Unavailable
36
COLLAR, 12
8JP-RA724-00-00
Unavailable
37
LOCK NUT
8JP-RA378-01-00
Unavailable
