Description

Price

1

BOLT, FLANGE 1

8JP-RA1B5-00-00

$3.88

2

WASHER, 9

8JP-RA466-00-00

$1.75

3

SUSPENSION WHEEL A

8JR-G7310-20-00

$47.99

4

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

5

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

6

NUT, LOCK 1

8JP-RA379-00-00

$0.54

7

BOLT, FLANGE

8ND-RA186-00-00

Unavailable

8

WASHER

8ND-RA453-00-00

Unavailable

9

BOLT, FLANGE 2

8JP-RA1B6-00-00

$1.16

10

BRACKET 7

8JP-G7419-20-00

Unavailable

11

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

12

COLLAR, 11

8JP-RA723-00-00

$15.99

13

WASHER, 0.890X1.19

8JP-RA437-00-00

Unavailable

14

COLLAR

8ND-RA729-00-00

$46.99

15

BOLT, FLANGE M6X1.0X20

8LN-RA181-00-00

Unavailable

16

WASHER, PLAIN

8JP-RA462-00-00

Unavailable

17

HOOK 1

8JP-G7446-00-00

Unavailable

18

COLLAR

8JP-G7319-00-00

Unavailable

19

LOCK NUT

8JP-RA378-01-00

Unavailable

20

BOLT, FLG. M10X1.2

8JP-RA199-00-00

Unavailable

21

SHAFT 6

8JP-G7488-10-00

Unavailable

22

BRACKET, ARM PIVOT

8JX-G7349-10-00

Unavailable

23

NIPPLE, GREASE 1

8JP-RAL01-00-00

Unavailable

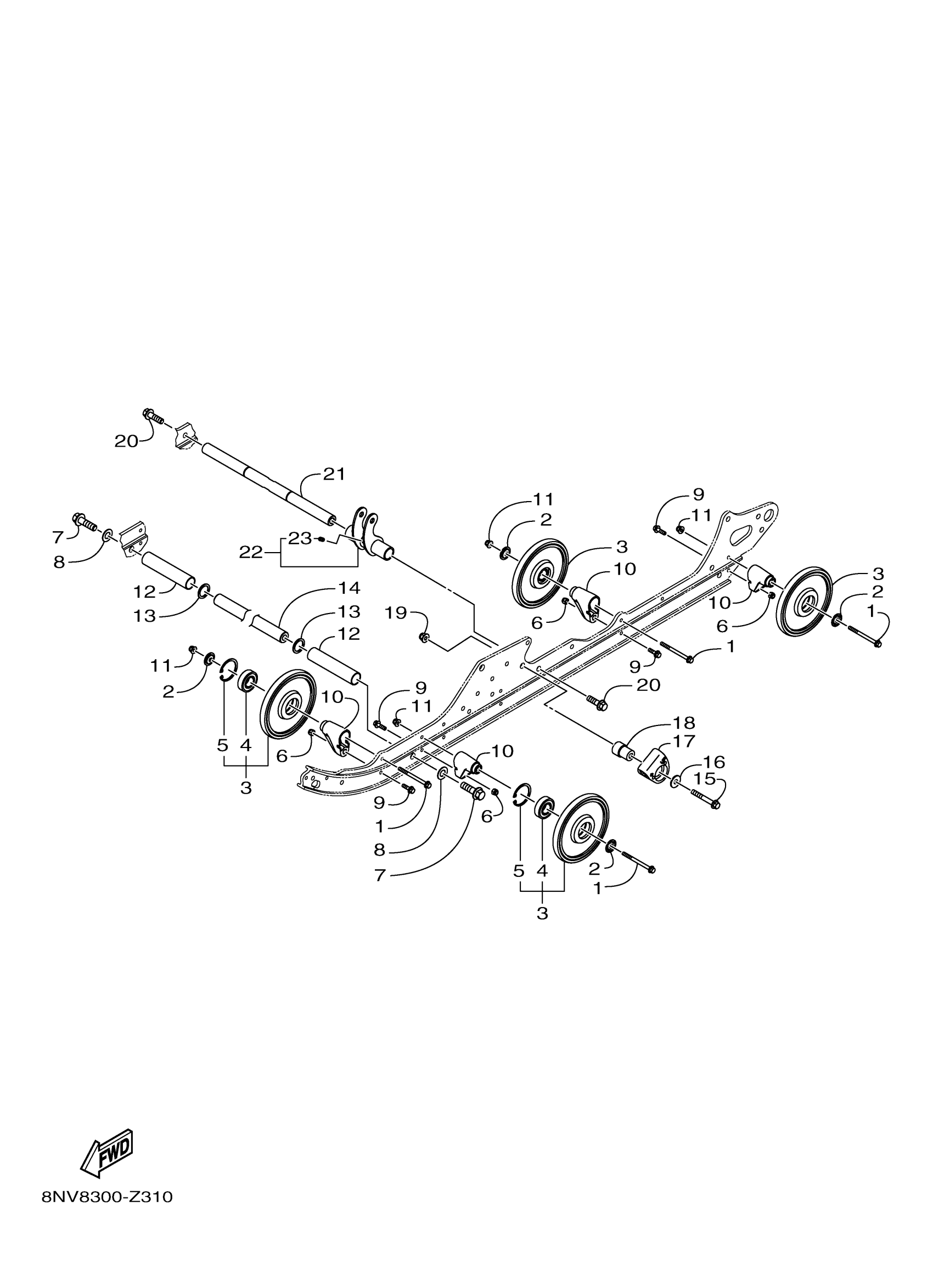

Yamaha TR8NTSSB (TRANSPORTER 800) 8NV9 2025 TRACK SUSPENSION 2 Diagram

BOLT, FLANGE 1

WASHER, 9

SUSPENSION WHEEL A

BRNG,WHL-NSK CHINA6004-W/ENS G

CIRCLIP, 2

NUT, LOCK 1

BOLT, FLANGE

WASHER

BOLT, FLANGE 2

BRACKET 7

NUT,FLG. M6-1.0

COLLAR, 11

WASHER, 0.890X1.19

COLLAR

BOLT, FLANGE M6X1.0X20

WASHER, PLAIN

HOOK 1

COLLAR

LOCK NUT

BOLT, FLG. M10X1.2

SHAFT 6

BRACKET, ARM PIVOT

NIPPLE, GREASE 1
